2. Description of QUARTET

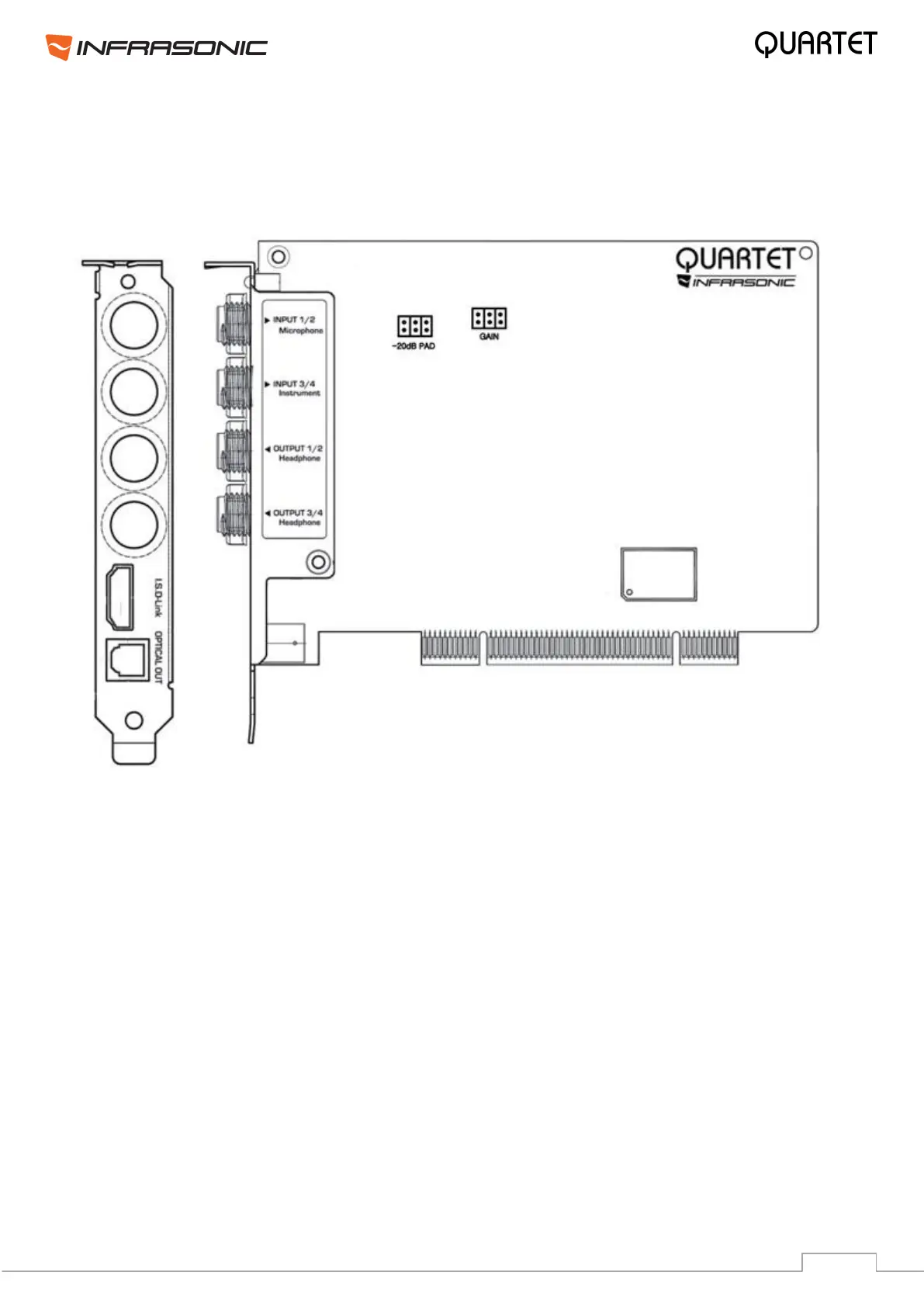

2.1. PCI Card
+48V phantom power LED: Lights up, if the phantom power is in use.
INPUT 1/2 & Microphone connector:
This connector is designed for both analog stereo Line inputs and Microphone input. Connect
your dynamic or condenser Microphone to this Balanced 1/4” connector.
INPUT 3/4 & Instrument connector:
This connector is designed for both analog stereo Line inputs and Instrument input. Connect
your electric guitar or bass guitar to this unbalanced 1/4” connector. Only unbalanced 1/4”
phone jack connection is available for this setting.
OUTPUT 1/2, 3/4: These connectors are designed for stereo Line and Dual headphone
outputs.
I.S.D-Link (INFRASONIC Digital Link): Connect the External I/O cable to this port.
Optical out: Allows you to transfer QUARTET’s audio data digitally, directly to devices like a
DAT, MD, CD-recorder with digital input. The maximum sample rate for the optical output is
96 kHz.
