Halley5 Base Board
X2000 Development Kit User Manual
Copyright® 2005-2021 Ingenic Semiconductor Co., Ltd. All rights reserved.

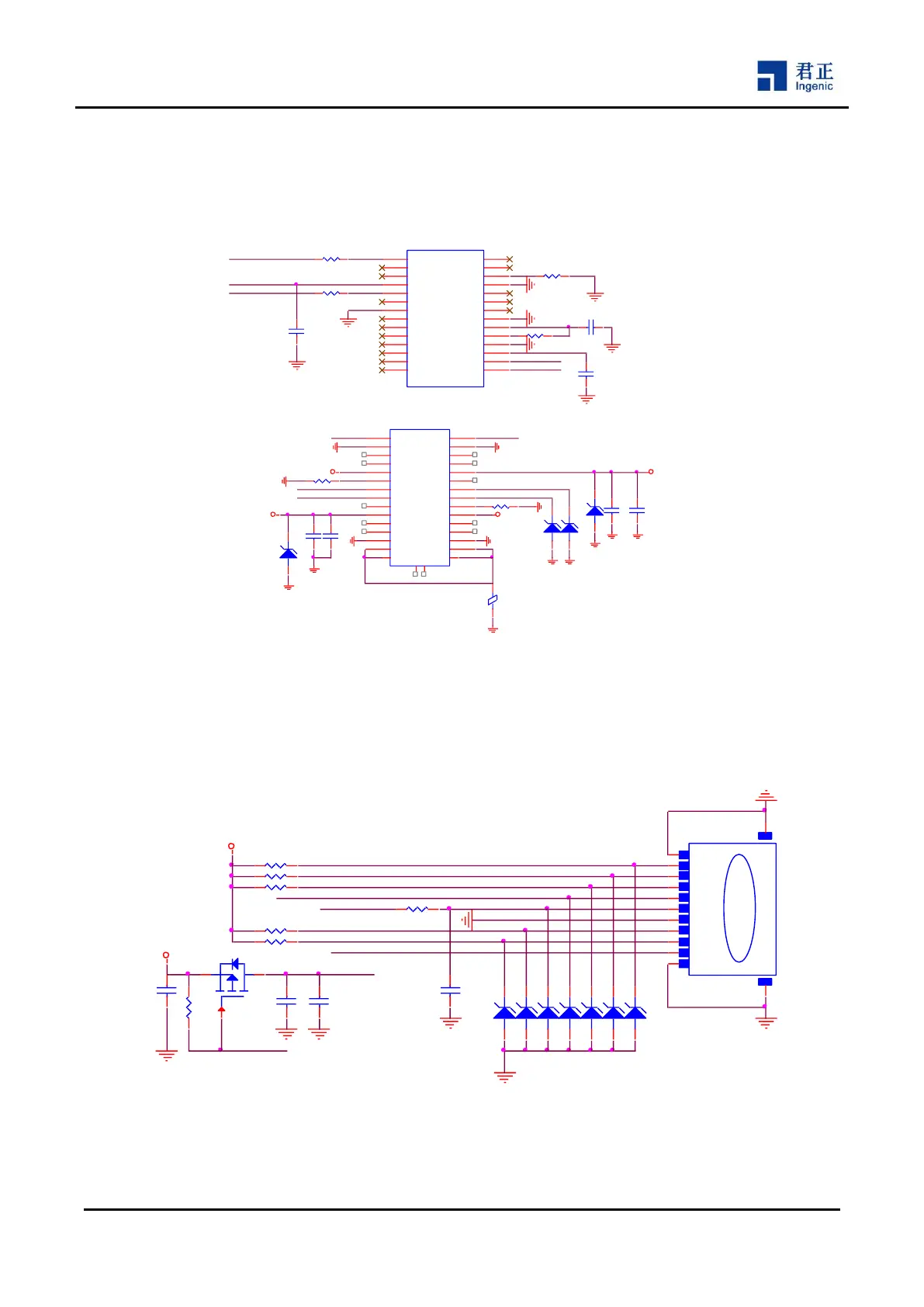

3.2.2 DEBUG Function Circuit
In order to facilitate users to debug, the base board is equipped with a USB to UART chip. Using generic USB
cable to connect the J3 to PC, it will help to use the USB serial port on the PC directly. The default serial debug
port of Halley5 is UART3_RXD and UART3_TXD of GPIO PC group.
Figure 3-2 Halley5 Base Board SPI Flash Circuit
3.2.3 SD Card Function Circuit
The base board supports a 4-bit Micro SD card interface with hot plug capability.
Figure 3-3 Halley2 Base Board SD Card Circuit
R12 5.1K1%
FB3
FB
R15 5.1K1%
C14
10uF
C15
0.1uF
C13
10uF
SHIELD1
C12
0.1uF
USBDP
SHIELD1
USBDM
USBDP USBDM
J3
SD-105450-001
GND5
A1
TX1+
A2
TX1-
A3
VBUS3
A4
CC1
A5
D1+
A6
D1-
A7
SBU1
A8
VBUS
A9
RX2-
A10
RX2+
A11
GND
A12
GND1
A14
GND4
A13
GND7
B13
GND3
B1
TX2+
B2
TX2-
B3
VBUS1
B4
CC2
B5
D2+
B6
D2-
B7
SBU2
B8
VBUS2
B9
RX1-
B10
RX1+
B11
GND6
B12
GND2
B14
EPD
A15
GND0
A16
NC
A17
NC1
A18
UART_5V
UART_5V UART_5V
UART_5V
SHIELD1
ESD9
ESD9X5VU
1
2
ESD6
ESD9X5VU
1
2
ESD7
ESD9X5VU
1
2
ESD8
ESD9X5VU
1
2
U2
FT232RL
TXD
1
DTR#
2
RTS#
3
VCCIO
4
RXD
5
R1#
6
GND
7
NC1
8
DSR#
9
DCD#
10
CTS#
11
CBUS4
12
CBUS2
13
CBUS3
14
USBDP
15
USBDM
16
3V3OUT
17
GND2
18
RESET#
19
VCC
20
GND1
21
CBUS1
22
CBUS0
23
NC2
24
AGND
25
TEST
26
OSCI
27
OSCO
28
R11 100K
C9
0.1uF
USBDM
UART_3V3
USBDP
C4 0.1uF
R6 0R
UART_5V
USB to R S232(for debug only)
R4 0R
UART3_RXD
C8
0.1uF
UART3_TXD
R8 0R
UART_3V3
ESD20
1
2
ESD19
1
2
ESD18
1
2
ESD17
1
2
ESD16
1
2
ESD15
1
2
ESD14
1
2
TF CARD
3V3P
SD_CD_N
Q2
WPM3401
3
1
2
C20
10uF
R27
56K
SD_CD_N
C21
10uF
C22
0.1uF
MSC2_CMD
MSC2_CLK
C23
NC/10PF
J5
T-FLASH
DAT2
1
DAT3
2
CMD
3
VDD
4
CLK
5
VSS2
6
DAT0
7
DAT1
8
CD
9
GND2
10
GND1
11
PAD2
12
PAD1
13
R22 56K
R21 10K
R23 56K
R26 56K
R25 56K
R24 0R
MSC2_D3
MSC2_D2
VDD_TF
MSC2_D0
MSC2_D1
VDD_TF
VDDIO_SD
To Next Page
