1.2 Functional Block Diagram
The functional block diagram of the Halley5 development kit is shown as below:

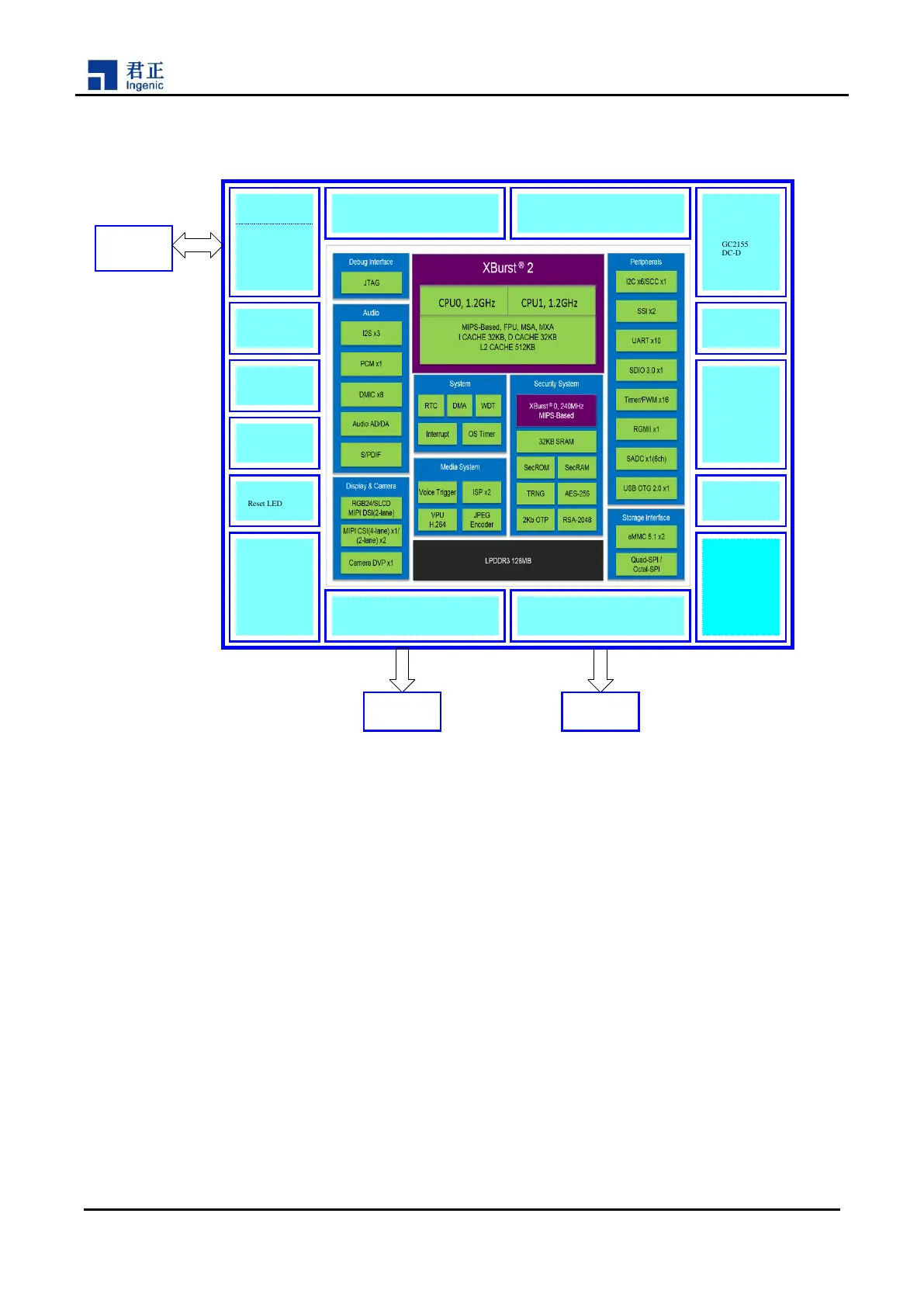

Figure 1-3 Halley5 Functional Block Diagram
USB Interface
POWER IC
USB_HOST
USB_OTG
GMAC1
RGMII Interface
AP6256
LDO x2
GC2155
DC-DCx4
LDOx1
UART Interface
SADC Interface
Debug port
UART Interface
SDIO Interface
DISPLAY Interface
CAMERA Interface
8/10/12-bit DVP
MSC Interface
Amplifier x 1
MSC2 TF CARD slot
WIFI&BT
CODEC
Reset key
2 x 2-Lane/4-Lane
KEY x 4
SFC0 Interface
SSI Interface
2-Lane MIPI DSI
EFUSE
1G SPI NAND Flash
2 x 2-lane MIPI
CAMERA Board
Panel + TP
Speaker
Boot key x 2
Power key
Reset LED
DMIC
DMIC0~1
PWM Interface
Power on LED
LED x 2
Expansion Interface
UART Interface
AMIC x 1
