3.2.4 AMIC Function Circuit
MICBIAS is from X2000, and the maximum output current is 3mA, and the voltage of MICBIAS can be adjusted
from 0.9 V to 1.53V by software (typical value is 0.9V).
The 1nF decoupling capacitor C73 at MICBIAS pin is used to eliminate the high frequency noise.

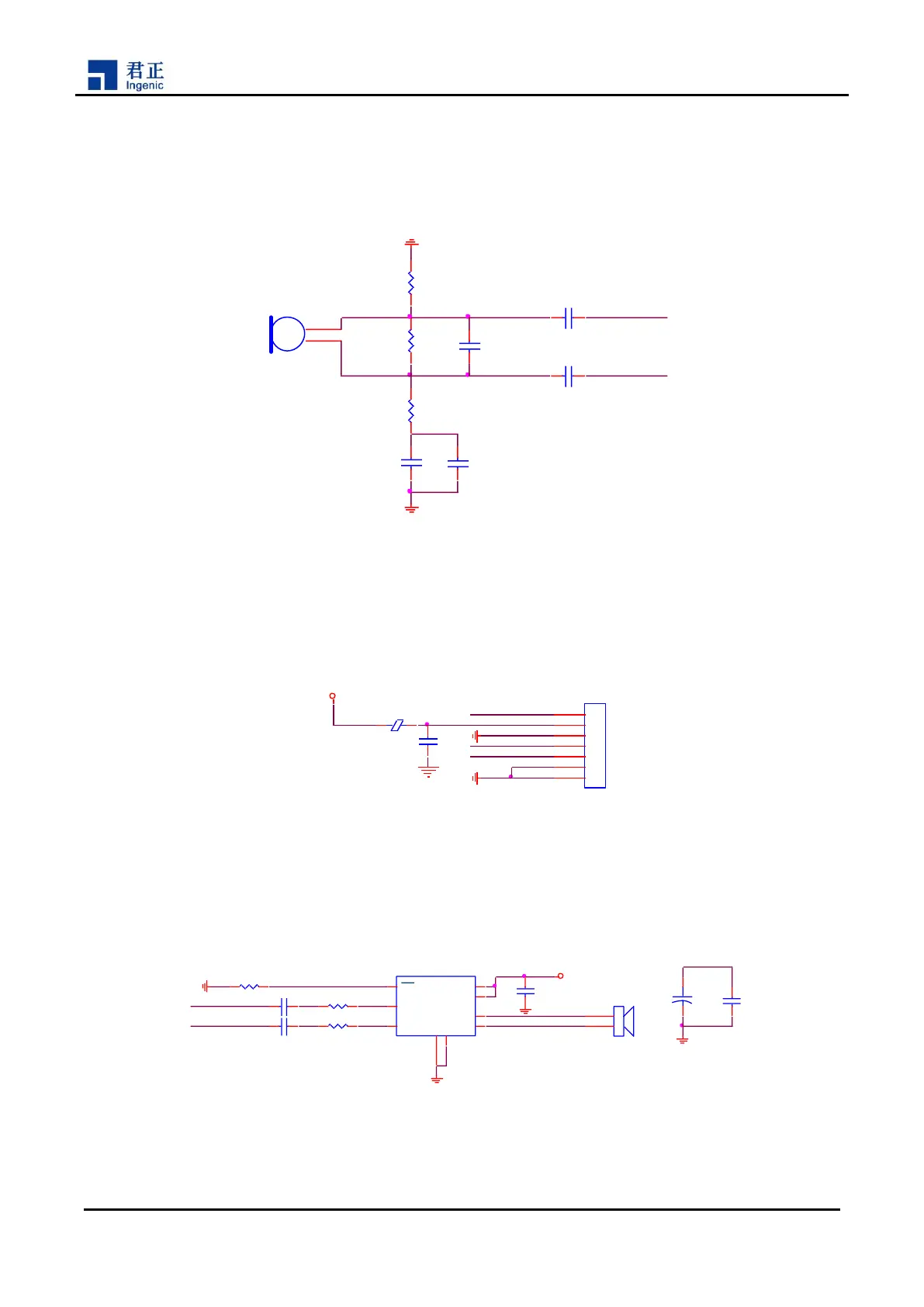

Figure 3-4 Halley5 Base Board AMIC Circuit
3.2.5 DMIC
The base board has a DMIC port, and Halley5 is able to support AMIC and four-channel DMICs recording
at the same time.
Figure 3-5 Halley5 Base Board DMIC Circuit
3.2.6 SPEAKER Function Circuit
X2000 integrates an internal audio CODEC. It outputs two-channel differential audio signals, and PB02 is used
to control the power amplifier.
Figure 3-6 Halley5 Base Board Speaker Circuit
