Ingenic Halley5 - Hardware Configuration

Overview
X2000 Development Kit User Manual
Copyright® 2005-2021 Ingenic Semiconductor Co., Ltd. All rights reserved.
2
1.1 Hardware Configuration
The Halley5 development kit contains the following modules:
 One core board (Halley5 Core Board)
 One base board
 One LCD panel
 One Camera board
 One DMIC board (optional)

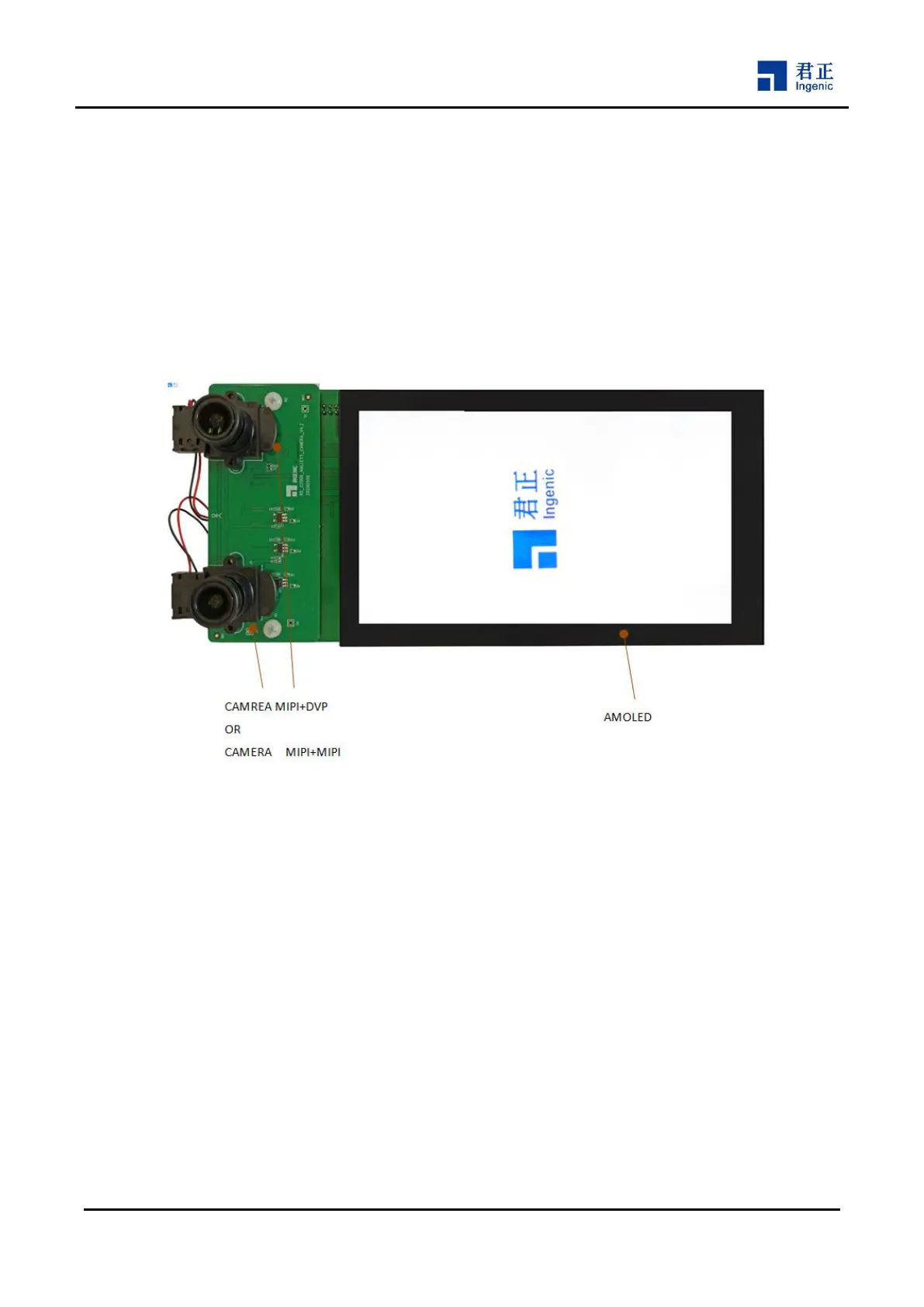

Figure 1-2 Halley5 Development Kit (with LCD/Camera board)
The core board includes an Ingenic X2000 processor, an AMPAK AP6256 Wi-Fi/Bluetooth module, and a
256MBytes SPI NAND flash and some discrete components. It also provides various interfaces in form of
plated half holes module to extend the external devices.
The base board contains various connectors and ports for power supply, audio input and output,
peripherals etc. It provides two expansion interfaces, one for camera board, the other for
UART&SPI&ADC&PWM signals.
The camera board supports two CMOS sensor (1080P@30fps).
LCD panel supports 1080P@40fps
The DMIC board has 4 DMICs. The development kit can support up to 4 DMICs at the same time.
