Ingenico 3300
12

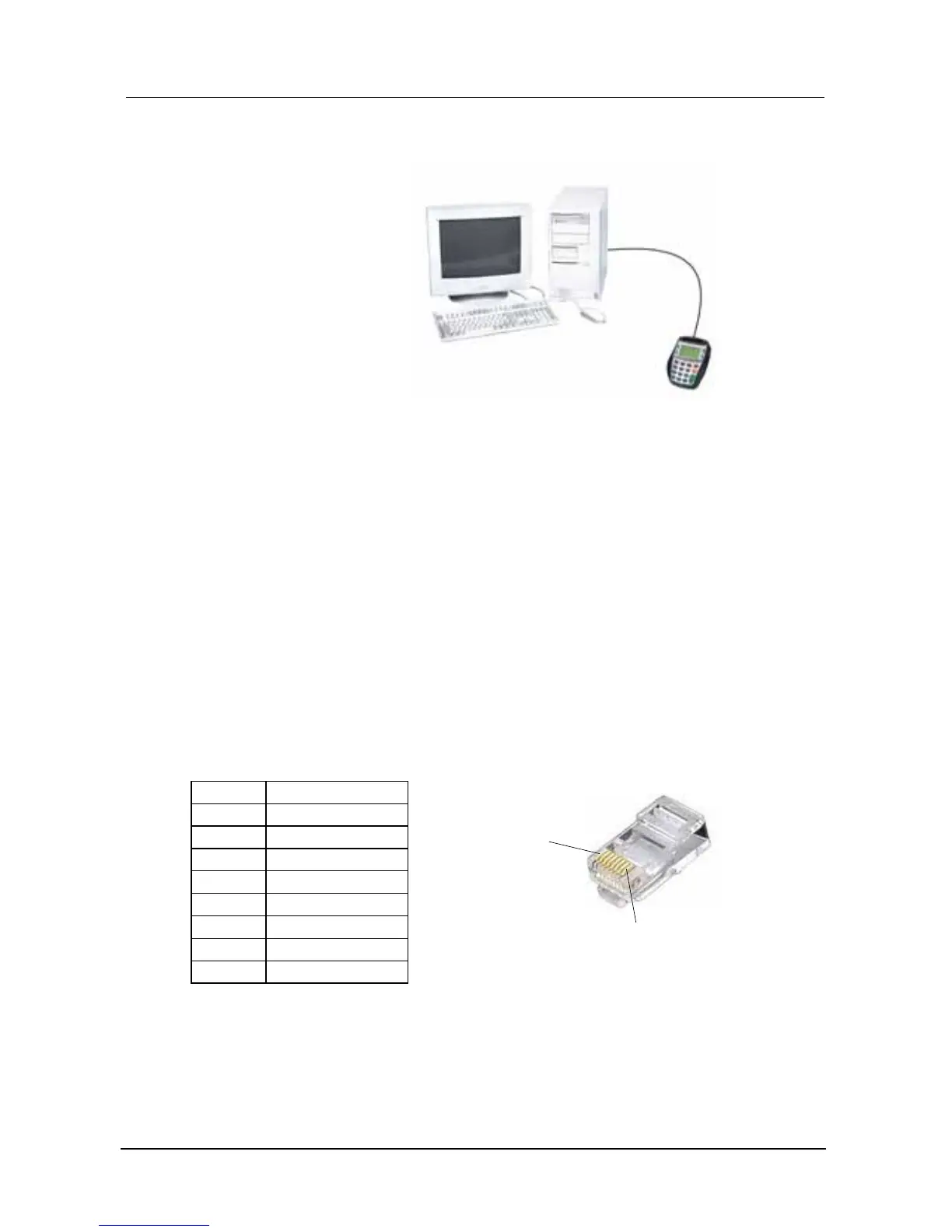

Or it can be connected to a PC:
Power requirements
6-18V dc. Maximum current 300mA
RS232 Interface
Logic levels (RS 232C levels)
speed: 300 to 115200 bauds
format: 7 or 8 bits
parity: odd, even, none
The communication connector is an eight way RJ 45 PLUG style connector.
This connects both Power (DC only) and serial communication. The pin out is; -
Pin No Signal
1 NC
2 NC
3 Power +
4 RXD
5 TXD
6 Power -
7 NC
8 NC
1
8
