INSTALLATION / HANDLING
15
M4 M5,5 M7,5 M11
Revision 00
10/97
89210074–1
NOTE

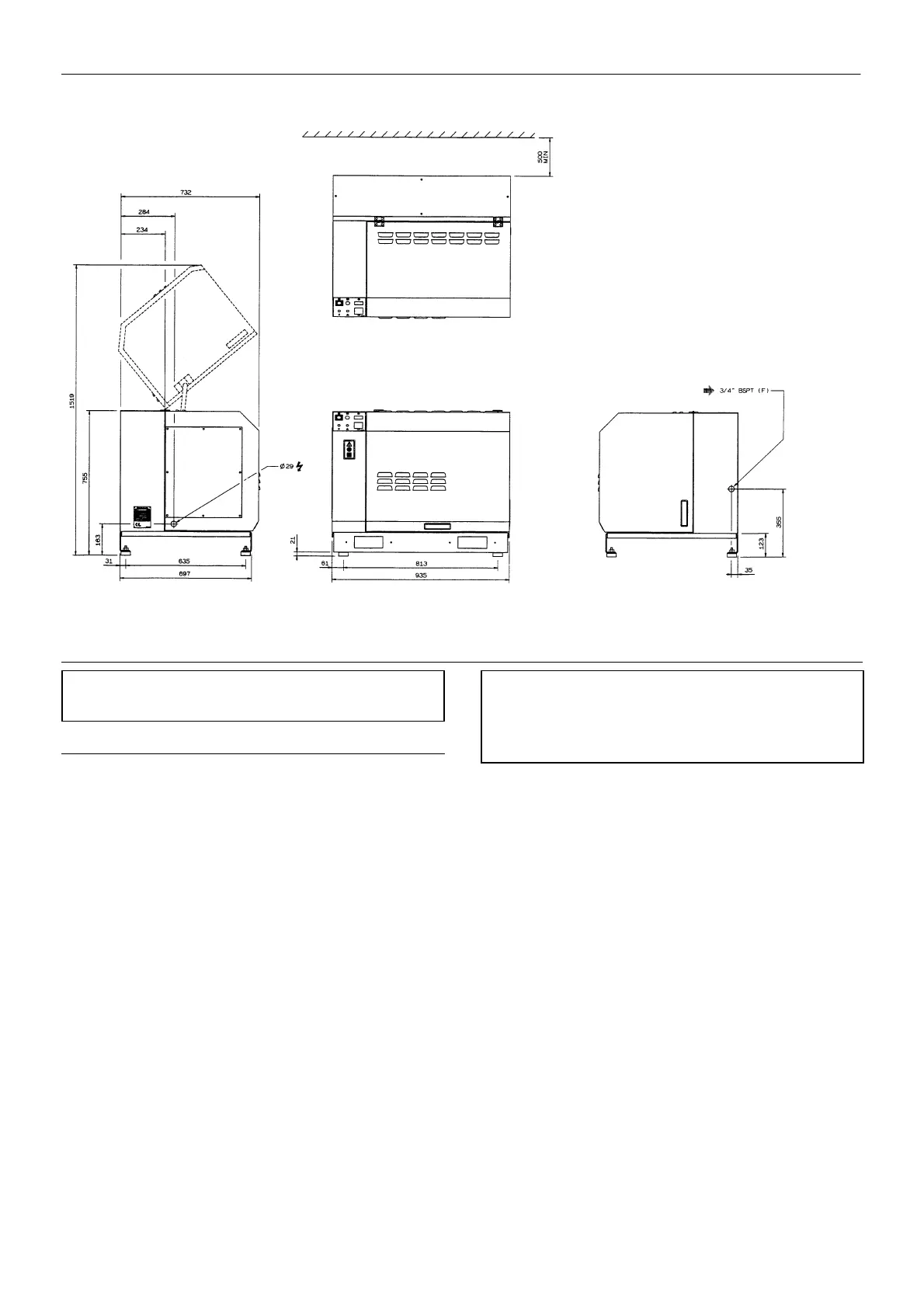

All dimensions are in millimetres unless otherwise stated.
LOCATION IN PLANT
The compressor can be installed on any level floor capable of
supporting it. A dry, well ventilated area where the atmosphere is as
clean as possible is recommended. A minimum of 0,5m should be left
around all sides of the machine for adequate service access and
ventilation.
Ensure that the correct fork lift truck slots or marked lifting / tie down
points are used whenever the machine is lifted or transported.
CAUTION
Screw type compressors [1] should not be installed in air systems
with reciprocating compressors without means of isolation such as a
common receiver tank. It is recommended that both types of
compressor be piped to a common receiver using individual air lines.
