Innova 3040c - Controls and Indicators

About the Scan Tool
CONTROLS AND INDICATORS
3040c 5
CONTROLS AND INDICATORS

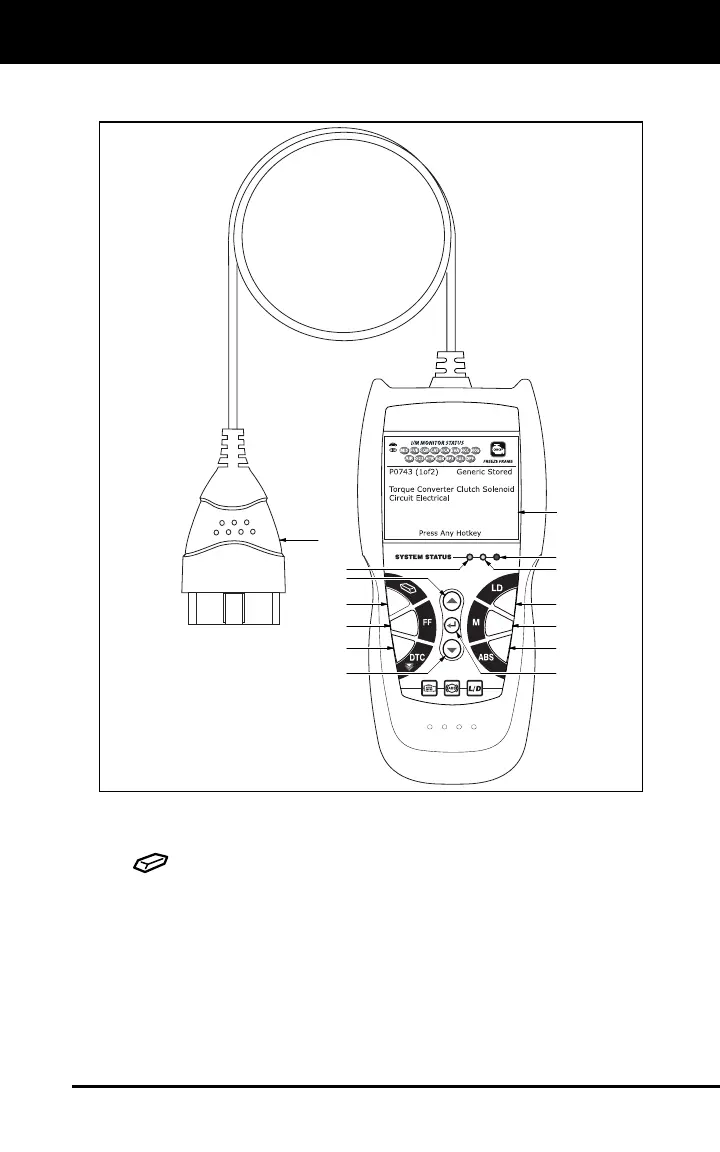

Figure 1. Controls and Indicators
See Figure 1 for the locations of items 1 through 14, below.
1.
ERASE button - Erases Diagnostic Trouble Codes (DTCs)
and "Freeze Frame" data from your vehicle's computer, and resets
Monitor status.
2. FF button - When retrieving and viewing DTCs, displays Freeze
Frame data for the highest priority code.
3. DTC button - Displays the DTC View screen and/or scrolls the
display when more than one DTC is present.
4. LD button - When linked to a vehicle, places the Scan Tool in “Live
Data” mode.
1
2
3
9
7
10 11
4
5
6
8
14
12
13
