SHIPPING & PARTS INFORMATION
The INOV8 Waste Oil Furnace is shipped on a pallet with strapping and plastic wrap.
This includes the heat exchanger, fan, and fan motor (mounted and wired). The burner is
packed in a separate box that also contains other parts, based on the following list and
what was purchased. Immediately upon receipt of INOV8 products inspect all parts for
possible shipping damage or missing parts and report any problems within 48 hours.

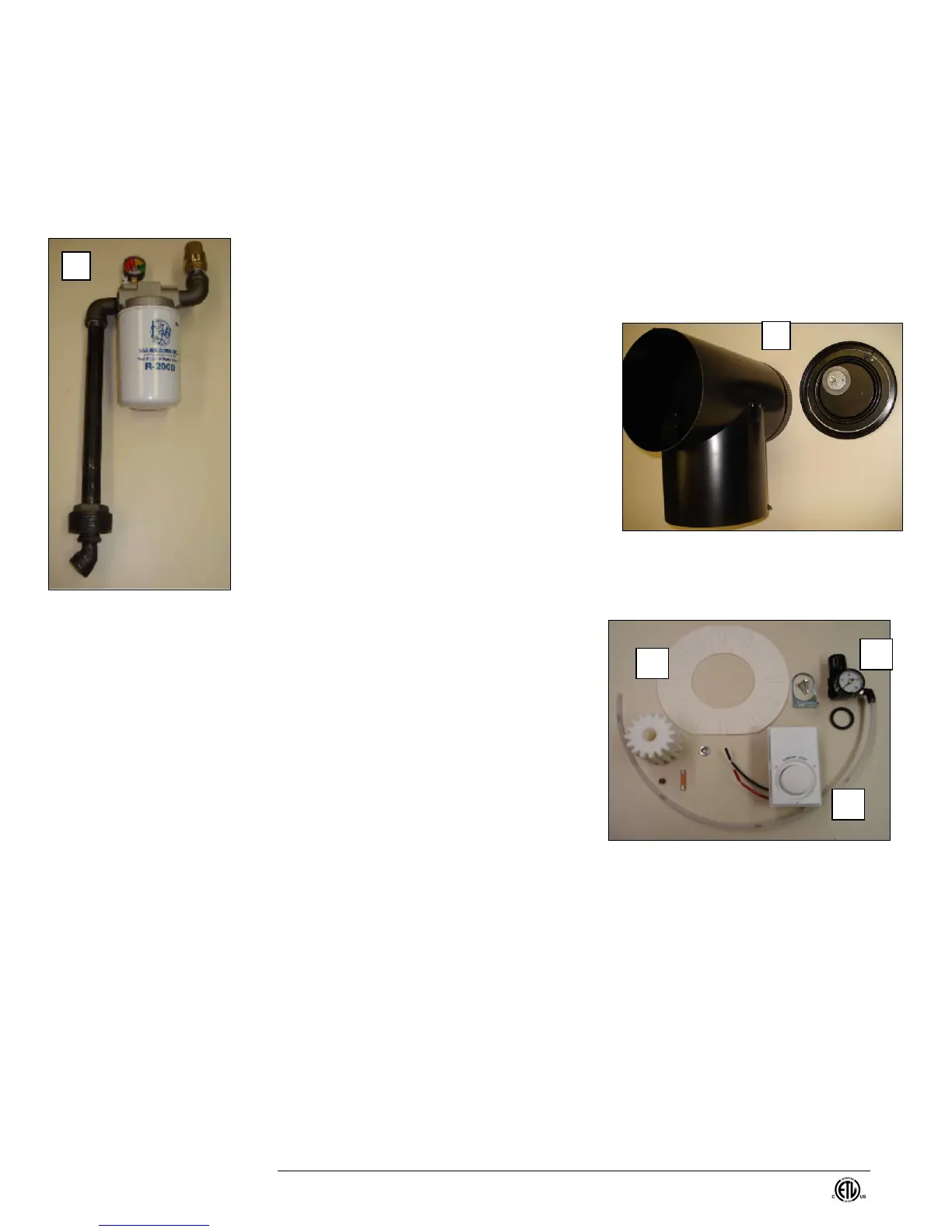

Check for the items shown in the photos, that they are received:
1. Oil Pickup Assembly, includes these parts from the top down:
a. One ¾” check valve
b. 3/4 “ x 2” black nipple
c. One 90
o
street elbow
d. Filter mount
e. One 90
o
street elbow
f. One ¾” x 12” pipe nipple
g. Double tap bushing, 2” with ¾” x ½”
reducing bushing
h. One primary filter, model Gar-Ber
Spin-on Filter #11V-R2000K with Filter
Restriction Indicator
2. Barometric draft control – 8”
(see photo at right)
The following items are shown in the lower photo:
3. Wall Thermostat - 120 volt (line voltage).
4. Other items include:
a. Instruction Manual
b. Spare vapor eliminator filter
c. Spare 10 amp (brown) & 4 amp
(orange) fuses
d. Burner gasket
5. Air regulator Assembly, includes:
a. Air regulator
b. Air gauge, 0 – 160 psig
c. Plastic nut
d. Bracket and screws
e. ¼” air tube
The following items are not shown in the photos:
6. Squirrel-Cage Blower (optional), mounted
7. Bench Tank - (optional), which includes:
a. 300 gallon bench-type tank
b. Optional stands
c. Tank gauge, oil supply and lines with fittings
