‑14‑
■ Installing Module onto DIN Rail

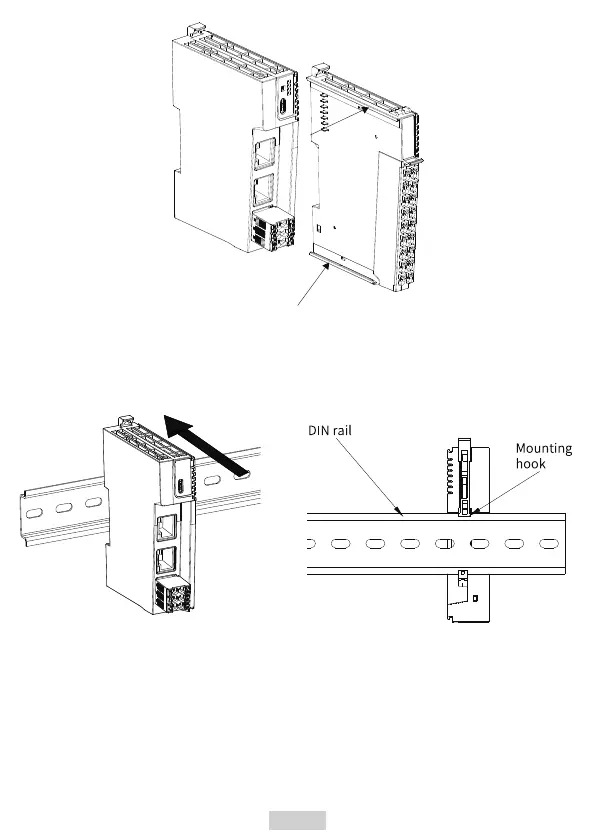

You can install the module onto a DIN rail. Align the module with the DIN rail and
push the module in the direction indicated by the arrow until you hear a click, as
shown below.
Note: After the module is installed, the DIN rail mounting hook will automatically
move downward to lock the module to the rail. If the DIN rail mounting hook does not
move downward, press down the top of it to ensure that the module is installed in
place.
Install the end cover to the last module to prevent exposure of the metal pins. After
installing the end cover, mount an end plate on either side of the module assembly to
prevent sliding of the module.
