Inovance GL20-RTU-ECT - External Interface Specifications; Terminal Wiring

‑17‑
■ External Interface Specifications
Interface
Type
Interface
Name
Cable Type/
Maximum
Length
Description Terminals Specification
EtherCAT
interface
EtherCAT Shielded
network
cable, 100 m
EtherCAT
communica‑
tion port
RJ45 x 2 100 Mbps
(100Base‑TX)
Power supply 24 V input 3‑core
unshielded
cable, 20 m
24 V power
input
6‑pin
pluggable
terminal
block
24 V/1 A

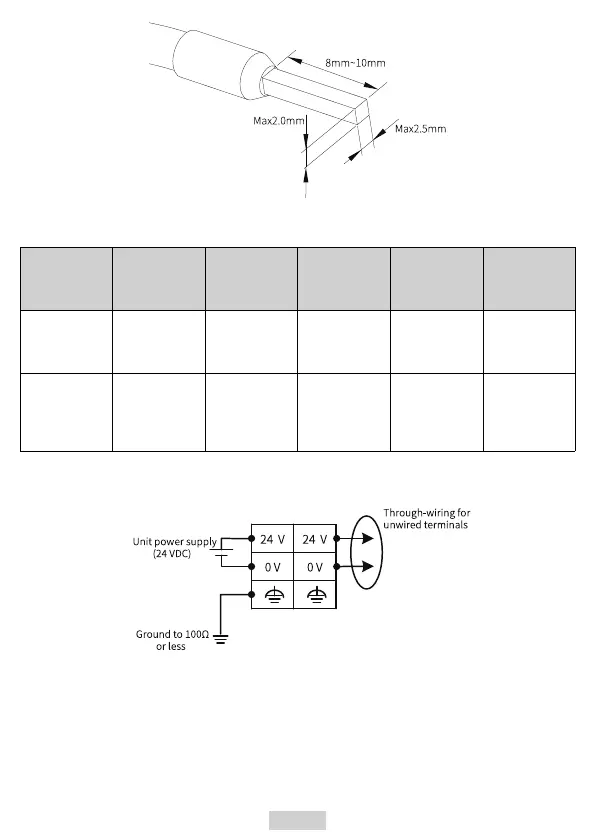

3.2 Terminal Wiring
