2. Mechanical Installation
- 26 -
2

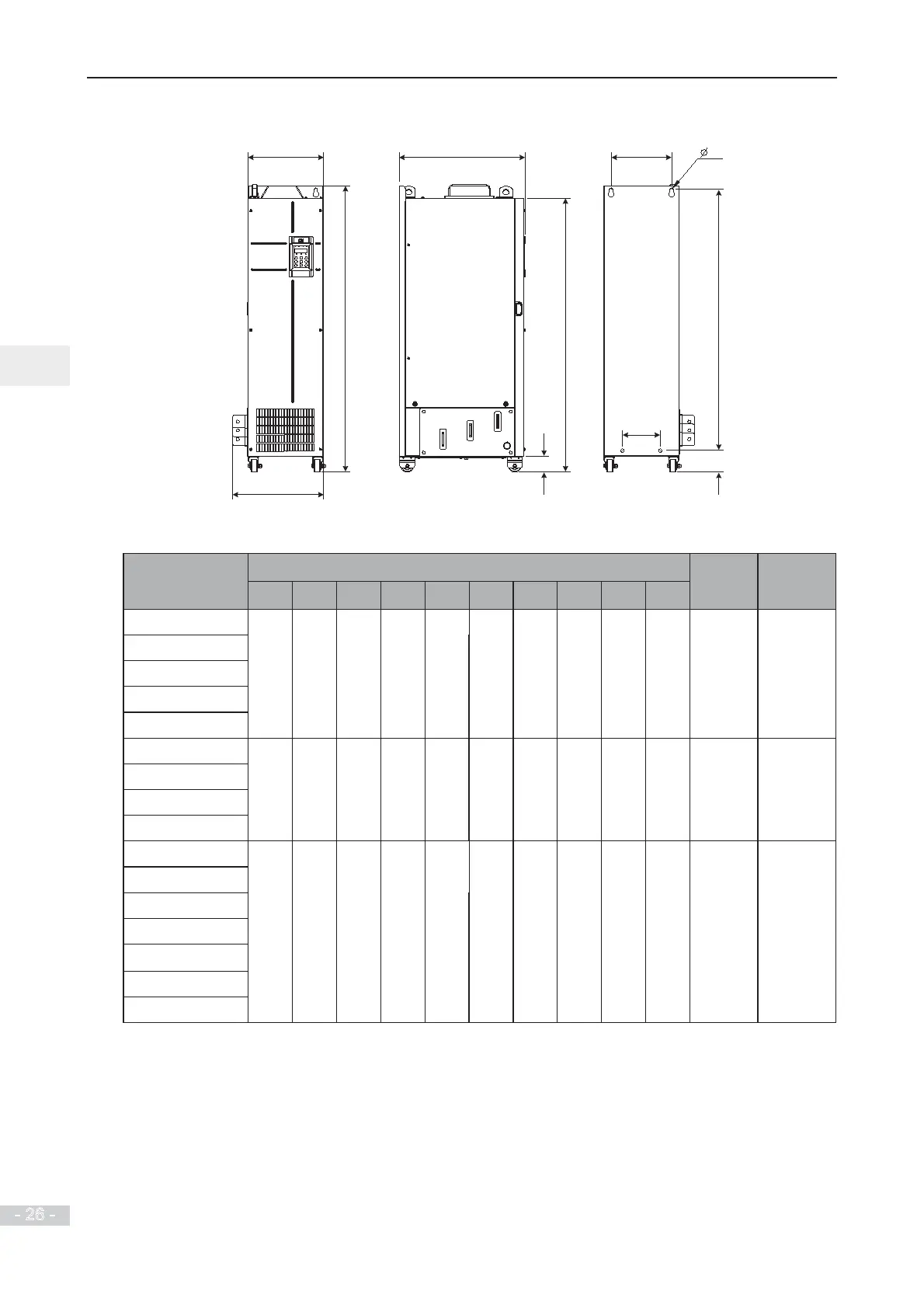

Figure 2-7 Overall dimensions of MD290T200G to MD290T450G and MD290T220P to MD290T500P
W
A1
A2
D
W1
H1
H
D
1
62
A1
B1
B2
Table 2-2 Mounting dimensions of MD290T200G to MD290T450G and MD290T220P to MD290T500P
MD290 Model Dimensions (mm) Weight
(kg)
Housing
Type
A1 A2 B1 B2 H H1 W W1 D D1
MD290T200G 240 150 1035 86 1086 1134 300 360 500 Ø13 110 Sheet
metal
housing
MD290T220P
MD290T250P
MD290T220G
MD290T280P
MD290T250G 225 185 1175 97 1248 1284 330 390 545 Ø13 155 Sheet
metal
housing
MD290T315P
MD290T280G
MD290T355P
MD290T315G 240 200 1280 101 1355 1405 340 400 545 Ø16 185 Sheet
metal
housing
MD290T400P
MD290T355G
MD290T450P
MD290T400G
MD290T500P
MD290T450G
