Inovance MD290T45G/55P User Manual

Appendix
- 294 -
12
Ɣ
Simple EMC Filter
$VLPSOH(0&¿OWHULVLQVWDOOHGWRSUHYHQWWKHVXUURXQGLQJLQWHUIHUHQFHDQGSUHYHQW
the interference from the AC drive during running.
Connect the simple EMC filter to ground reliably and ensure that the length of the
FDEOHFRQQHFWLQJWKHGULYHDQGWKH¿OWHULVOHVVWKDQFP
–
Selection
MD290 Model 6LPSOH(0&¿OWHU
MD290T18.5G/22P DL65EB1/10
MD290T22G/30P
MD290T30G/37P
MD290T37G/45P
DL-120EB1/10
MD290T45G/55P
MD290T55G/75P
DL-180EB1/10
MD290T75G/90P
MD290T90G/110P to MD290T450G(-L) Unavailable
–

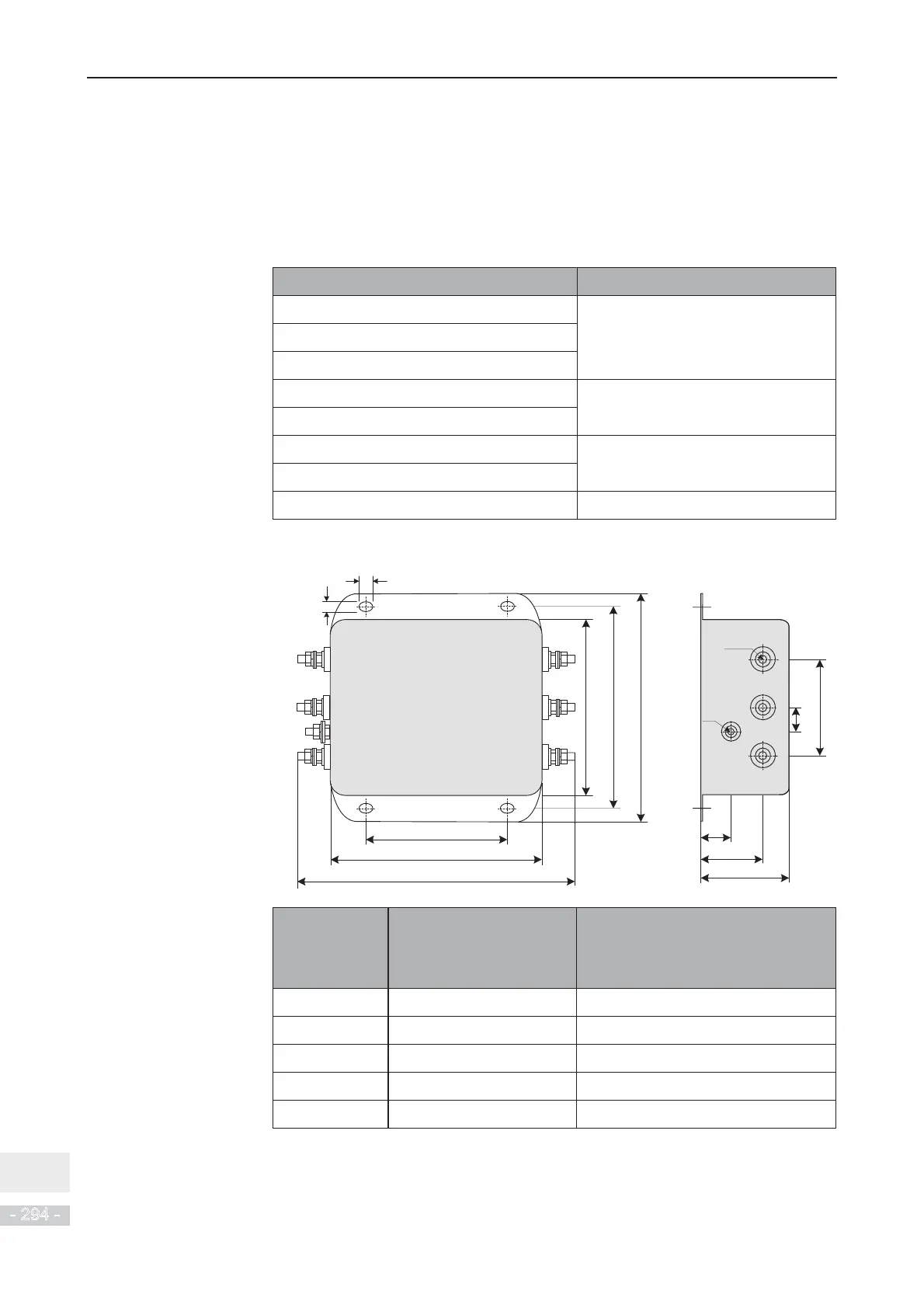

Mounting Dimensions
6.5 ± 0.2
4.5 ± 0.2
Mounting length: 80 ± 0.2
120 ± 2
Length: 157 ± 3
100 ± 2
Mounting width: 115 ± 0.5
Width: 130 ± 2
13.75 ± 1
55
± 1
M4
M6 x 6
17 ± 1
35 ± 1
Height: 50 ± 2
Unit: mm
Simple EMC
Filter Model
Overall Dimensions
(Length x Width x Height)
Mounting Dimensions
(Mounting Length x Mounting Width)
(mm)
DL-15EB1/10 157 x 130 x 50 80 x 115
DL-35EB1/10 218 x 140 x 80 184 x 112
DL-65EB1/10 218 x 140 x 80 184 x 112
DL-120EB1/10 334 x 185 x 90 304 x 155
DL-180EB1/10 388 x 220 x 100 354 x 190
