2. Mechanical Installation
- 29 -
2

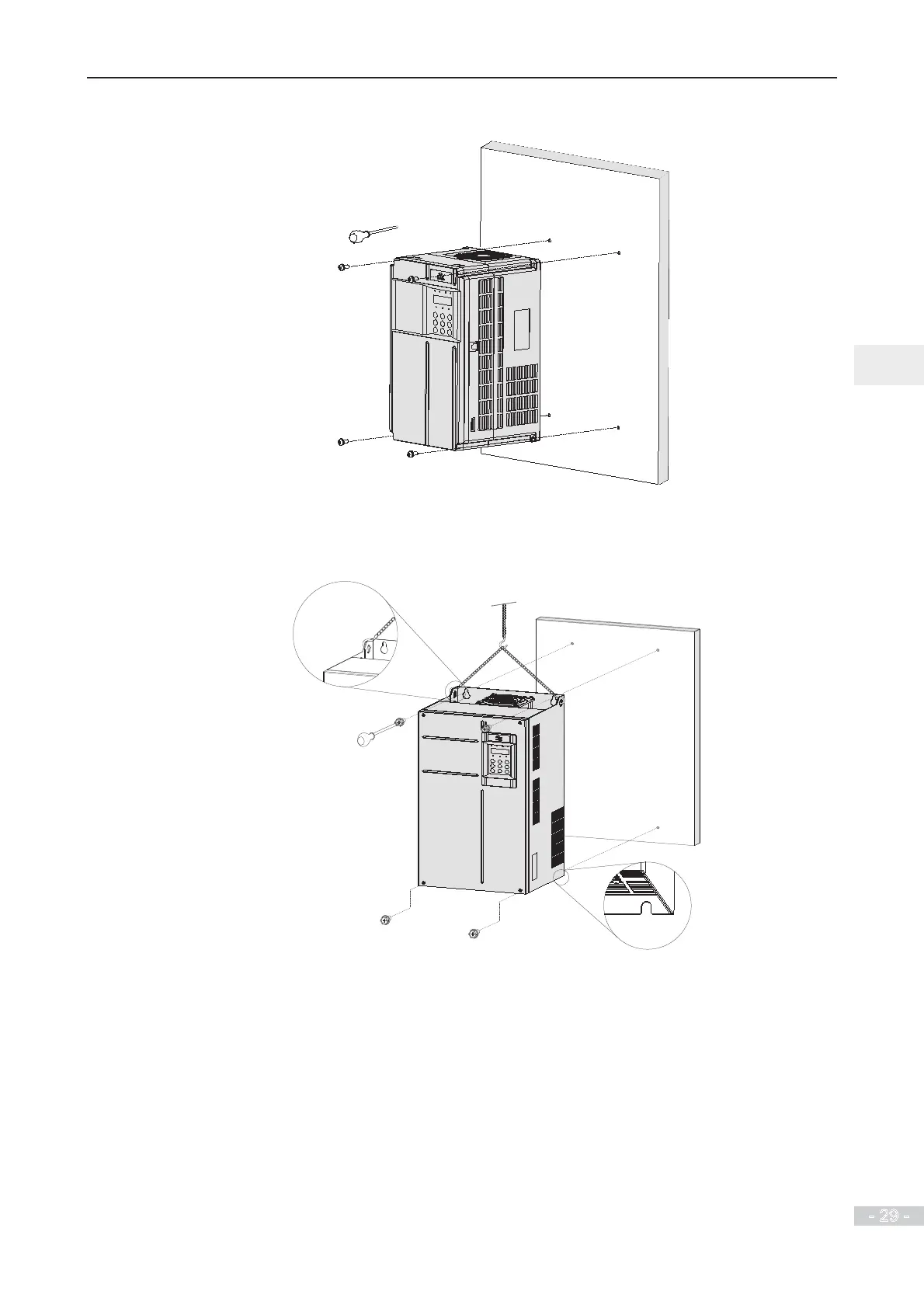

Figure 2-9 Backplate-mounted installation of a plastic housing
Figure 2-10 Backplate-mounted installation of a sheet metal housing
Eye bolt
Mounting
holes
