Inovance MD290T45G/55P User Manual

3. Electrical Installation
- 60 -
3

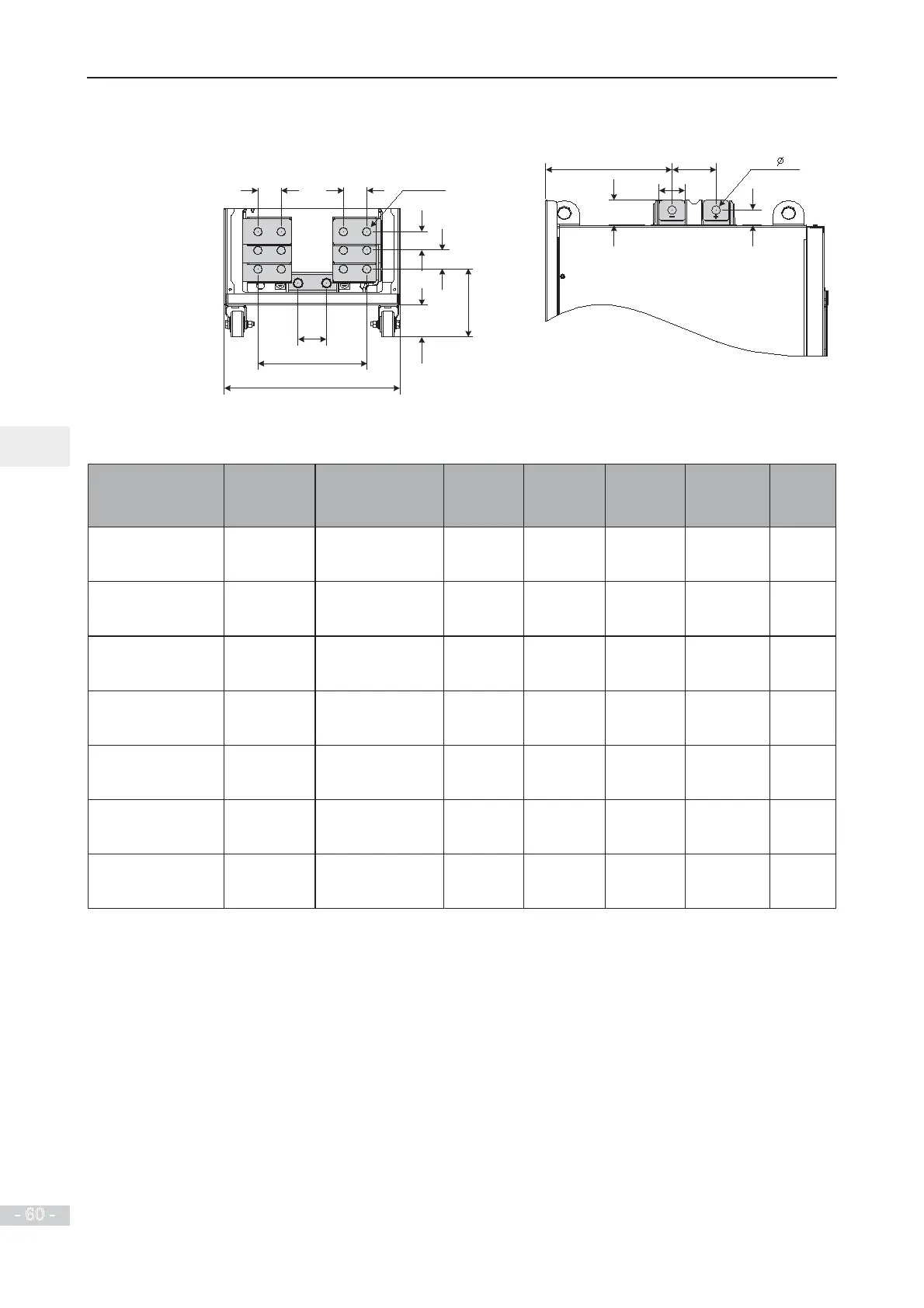

Figure 3-14 Terminal dimensions of MD290T315G to MD290T450G and MD290T400P to
MD290500P (without side entry copper bar, without output reactor)
2- 17
62
30
49
50
85
244
R
S
T
W
V
U
55
210
45 45
133
36
36
14-M16
340
Table 3-9 Recommended cable dimensions and tightening torque of MD290T315G(-L) to
MD290T450G(-L) and MD290400P(-L) to MD290500P(-L)
AC Drive Model Rated Input
Current (A)
Power Input/
Output Cable
Crimp
Terminal
Model
Ground
Cable
Crimp
Terminal
Model
Tightening
Torque
(N·m)
Screw
Spec.
MD290T315G(-L) 565 2 x (3 x 185) mm
2
500 kcmil x 2P
250-16 185 mm
2
2/0 AWG
70-16 85.0 M16
MD290T400P(-L) 708 2 x (3 x 240) mm
2
600 kcmil x 2P
325-16 240 mm
2
3/0 AWG
80-16 85.0 M16
MD290T355G(-L)
617 2 x (3 x 185) mm
2
500 kcmil x 2P
250-16 185 mm
2
2/0 AWG
70-16 85.0 M16
MD290T450P(-L)
782 2 x (3 x 240) mm
2
600 kcmil x 2P
325-16 240 mm
2
3/0 AWG
80-16 85.0 M16
MD290T400G(-L)
687 2 x (3 x 240) mm
2
600 kcmil x 2P
325-16 240 mm
2
3/0 AWG
80-16 85.0 M16
MD290T500P(-L)
840 2 x (3 x 300) mm
2
650 kcmil x 2P
325-16 300 mm
2
80-16 85.0 M16
MD290T450G(-L)
782 2 x (3 x 240) mm
2
600 kcmil x 2P
325-16 240 mm
2
3/0 AWG
80-16 85.0 M16
