40" / 49" / 55" 1080p 60Hz LED TV
www.insigniaproducts.com
AV (good)
1 Make sure that your TV’s power cord is unplugged and all connected devices are turned off.
2 Connect the incoming cable from the cable wall jack to the cable-in jack on the cable or satellite box.
3 Connect an AV cable (not provided) to the VIDEO jack and L and R AUDIO jacks on your TV and to the AV and audio
out jacks on the cable or satellite box.
4 Plug your TV’s power cord into a power outlet, turn on your TV, then turn on the cable or satellite box.
5 Press INPUT to open the INPUT SOURCE list.
6 Press
or to highlight AV, then press ENTER.
Note
Cables are often color-coded to match color-coded jacks.
Important
When you connect the audio using the L and R AUDIO jacks, the audio
output is analog.

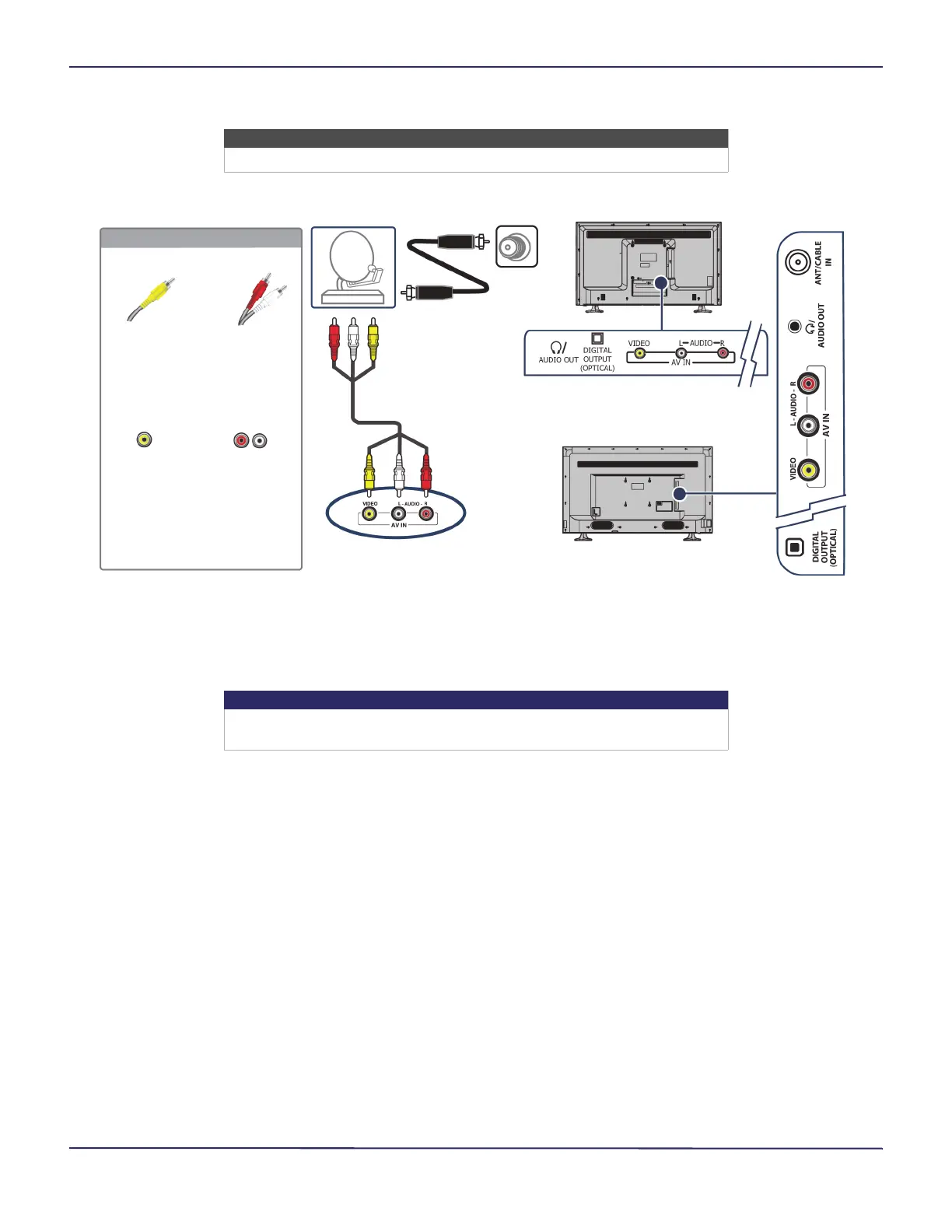

AV cable
AV cable
connector
AV jack
Audio cable
connectors
Analog
audio jacks
On your TV
Video and audio jacks
Cable or
satellite box
Side of TV
Cable wall
jack
Back of TV
40"/49" model
55" model
