AV (good)
1 Make sure that your TV’s power cord is unplugged and the game console is turned off.
2 Connect the video and audio connectors on the game console’s AV cable (not provided) to the VIDEO jack and L and
R AUDIO jacks on your TV and to the composite jack(s) on the game console.
3 Plug your TV’s power cord into a power outlet, then turn on your TV and the game console.
4 Press INPUT to open the INPUT SOURCE list.
5 Press
or to select AV, then press ENTER.
Notes
Cables are often color-coded to match color-coded jacks.
Important
• Some older game consoles come with a special AV cable. See the
documentation that came with your game console or check the
manufacturer’s website.
• When you connect the audio using the L and R AUDIO jacks, the audio
output is analog.

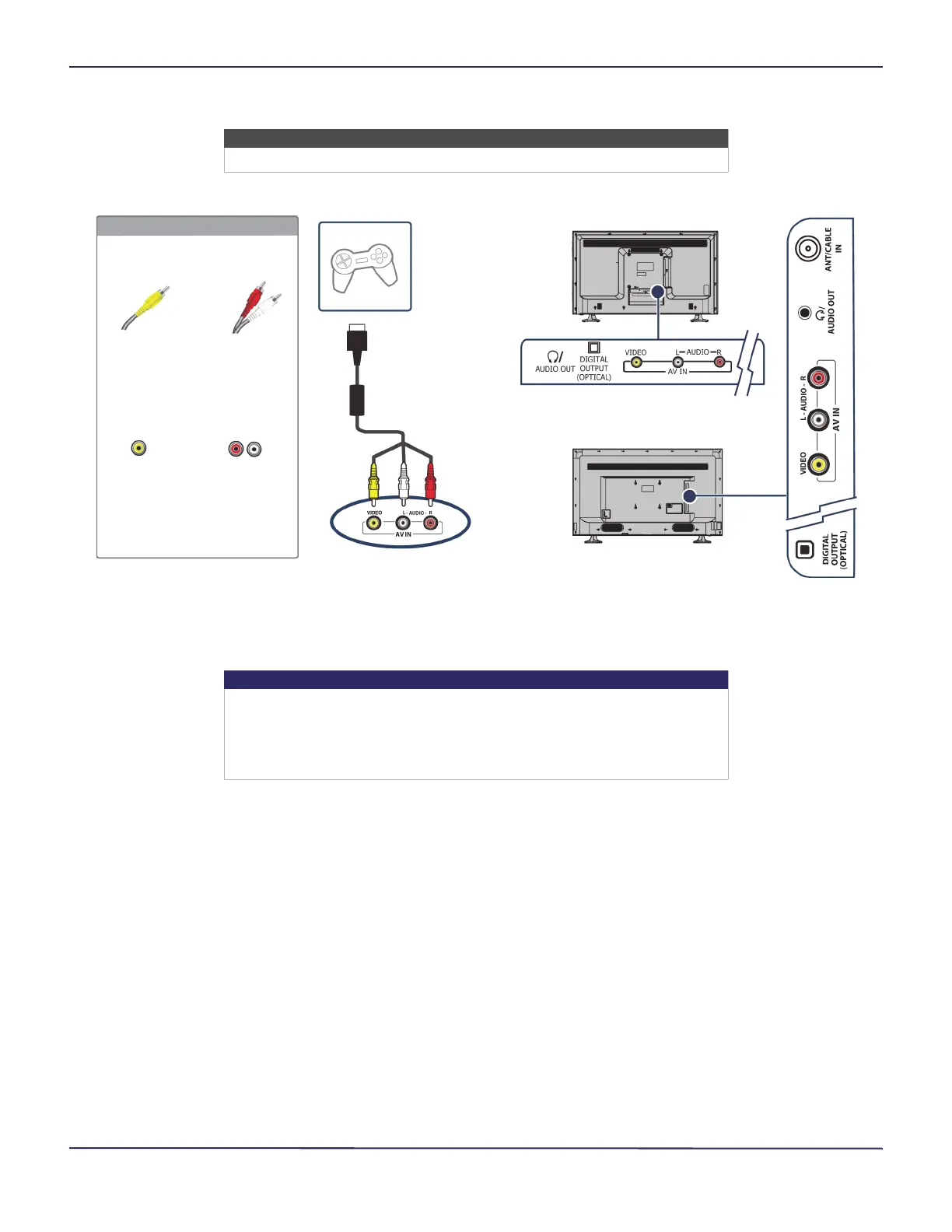

Game console
Console-specific
AV cable
Side of TV
AV cable
connector
Audio cable
connectors
AV jack Analog
audio jacks
On your TV
40"/49" model
55" model
Back of TV
Video and audio jacks
