11
3-in-1 TV STAND
www.insigniaproducts.com

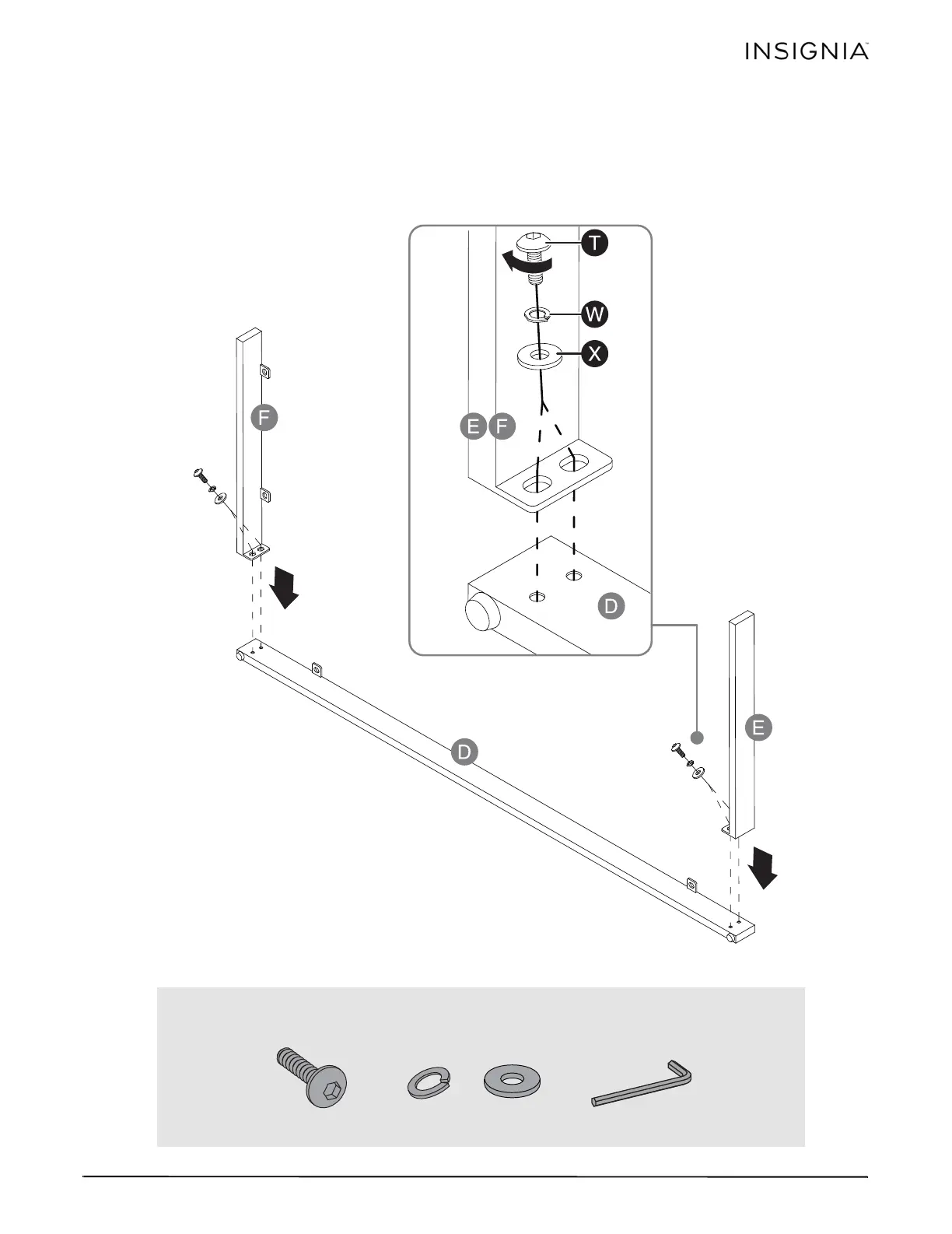

Step 5: Attach the bottom subframe
• Insert four 5/8” bolts (T), with lock washers (W) and flat washers (X), through the end brackets on the left and
right rails (E and F), then securely screw them into the threaded holes on the bottom crossbar (D) with the 4 mm
hex key (EE). Make sure that the metal tabs face inward and are flush with each other.
You’ll need:
NS-HWMC1848_17-0157_MAN_V4_ENG.fm Page 11 Tuesday, March 7, 2017 3:08 PM
