13
3-in-1 TV STAND
www.insigniaproducts.com

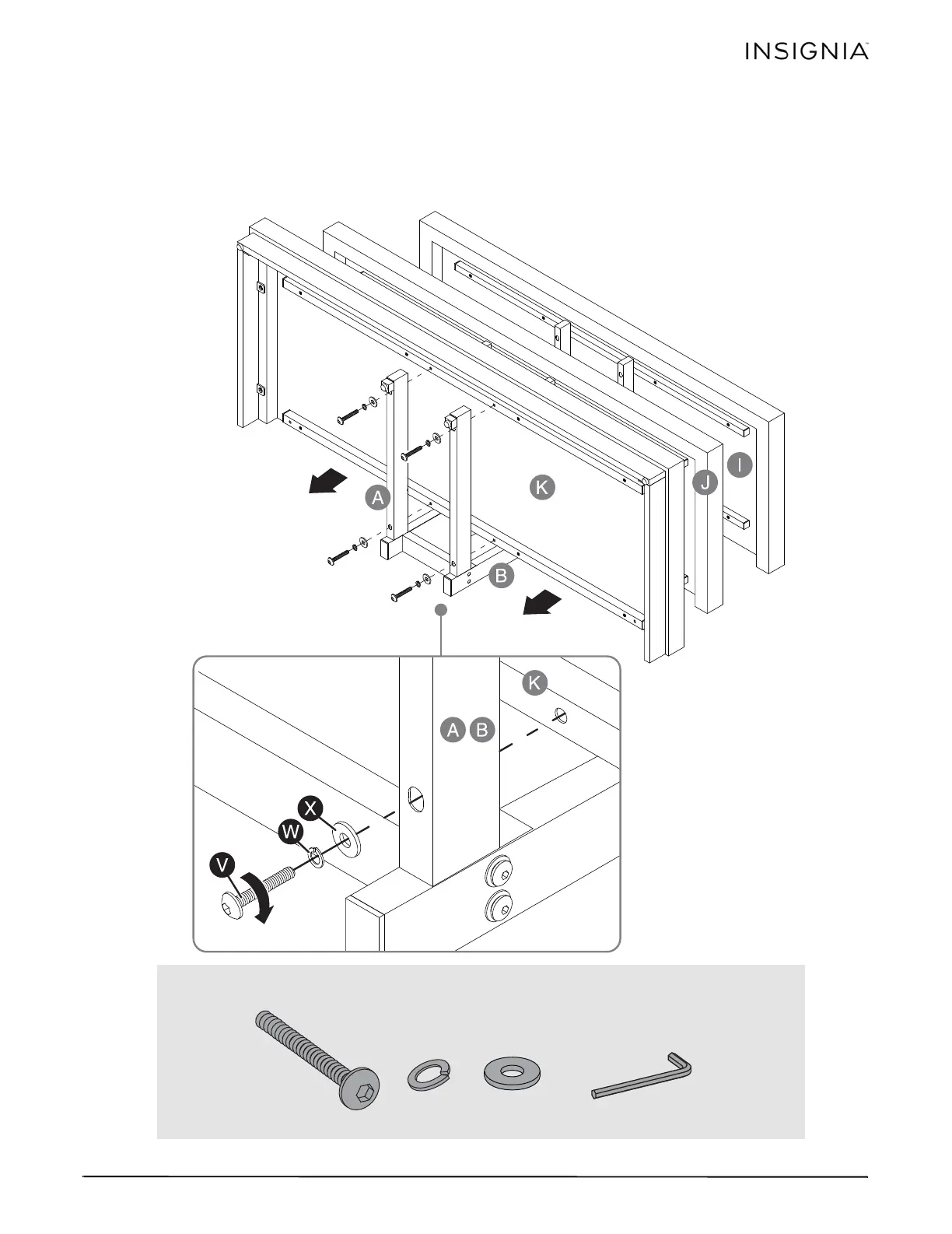

Step 7: Align and attach the bottom shelf to the side frames
• Insert four 2 1/4” bolts (V), with lock washers (W) and flat washers (X), through the drilled holes on the bottom
rails of both side frames (A and B), then securely screw them into the threaded holes on the bottom shelf (K) with
the 4 mm hex key (EE).
You’ll need:
NS-HWMC1848_17-0157_MAN_V4_ENG.fm Page 13 Tuesday, March 7, 2017 3:08 PM
