Insignia NS-LCD32-09 Service Manual

32″LCD TV Best Buy NS-LCD32-09
4

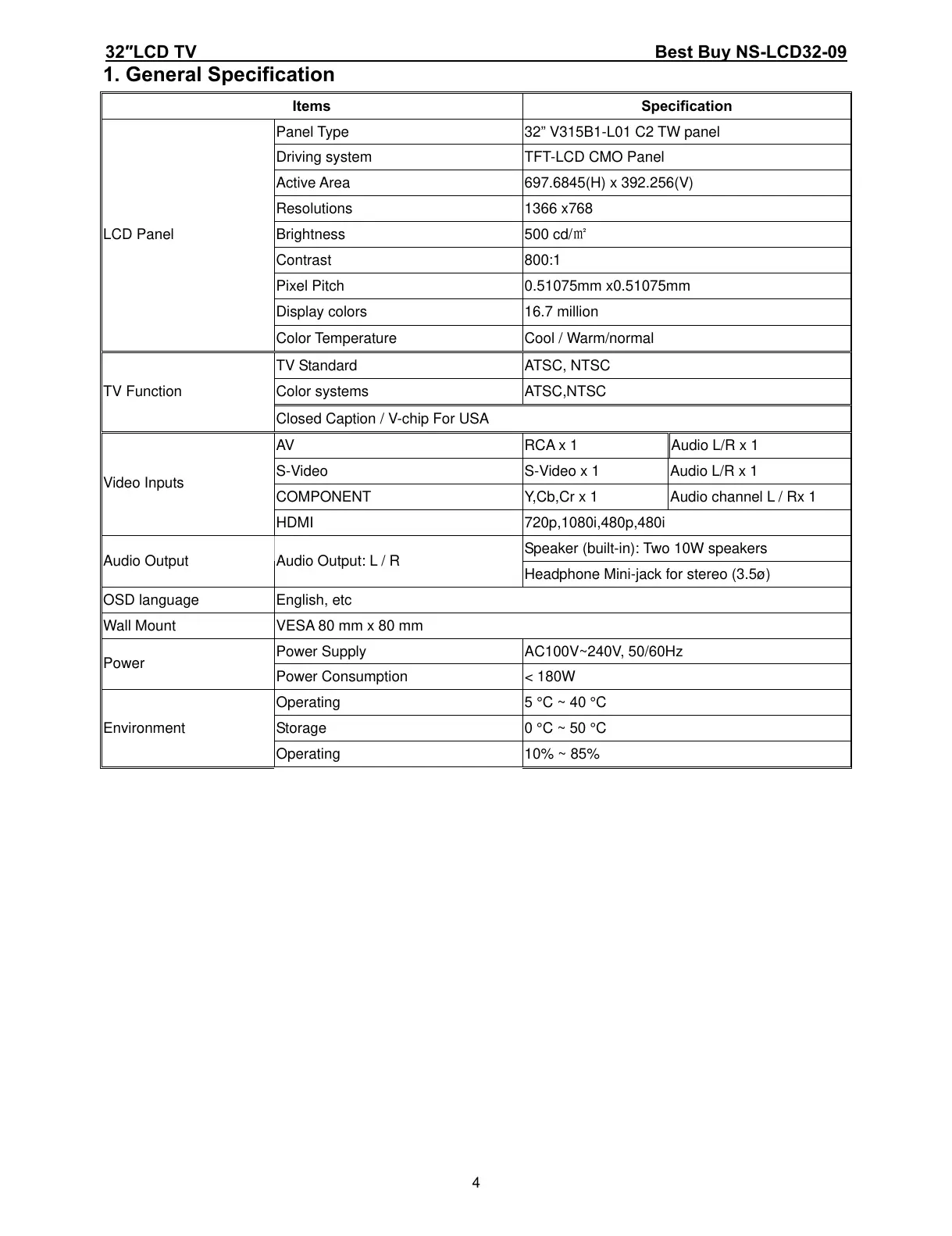

1. General Specification
Items Specification
Panel Type 32” V315B1-L01 C2 TW panel
Driving system TFT-LCD CMO Panel
Active Area 697.6845(H) x 392.256(V)
Resolutions 1366 x768
Brightness
500 cd/㎡
Contrast 800:1
Pixel Pitch 0.51075mm x0.51075mm
Display colors 16.7 million
LCD Panel
Color Temperature Cool / Warm/normal
TV Standard ATSC, NTSC
Color systems ATSC,NTSC
TV Function
Closed Caption / V-chip For USA
AV RCA x 1 Audio L/R x 1
S-Video S-Video x 1 Audio L/R x 1
COMPONENT Y,Cb,Cr x 1 Audio channel L / Rx 1
Video Inputs
HDMI 720p,1080i,480p,480i
Speaker (built-in): Two 10W speakers
Audio Output Audio Output: L / R
Headphone Mini-jack for stereo (3.5ø)
OSD language English, etc
Wall Mount VESA 80 mm x 80 mm
Power Supply AC100V~240V, 50/60Hz
Power
Power Consumption < 180W
Operating 5 °C ~ 40 °C
Storage 0 °C ~ 50 °C
Environment
Operating 10% ~ 85%
