32″LCD TV Best Buy NS-LCD32-09
54

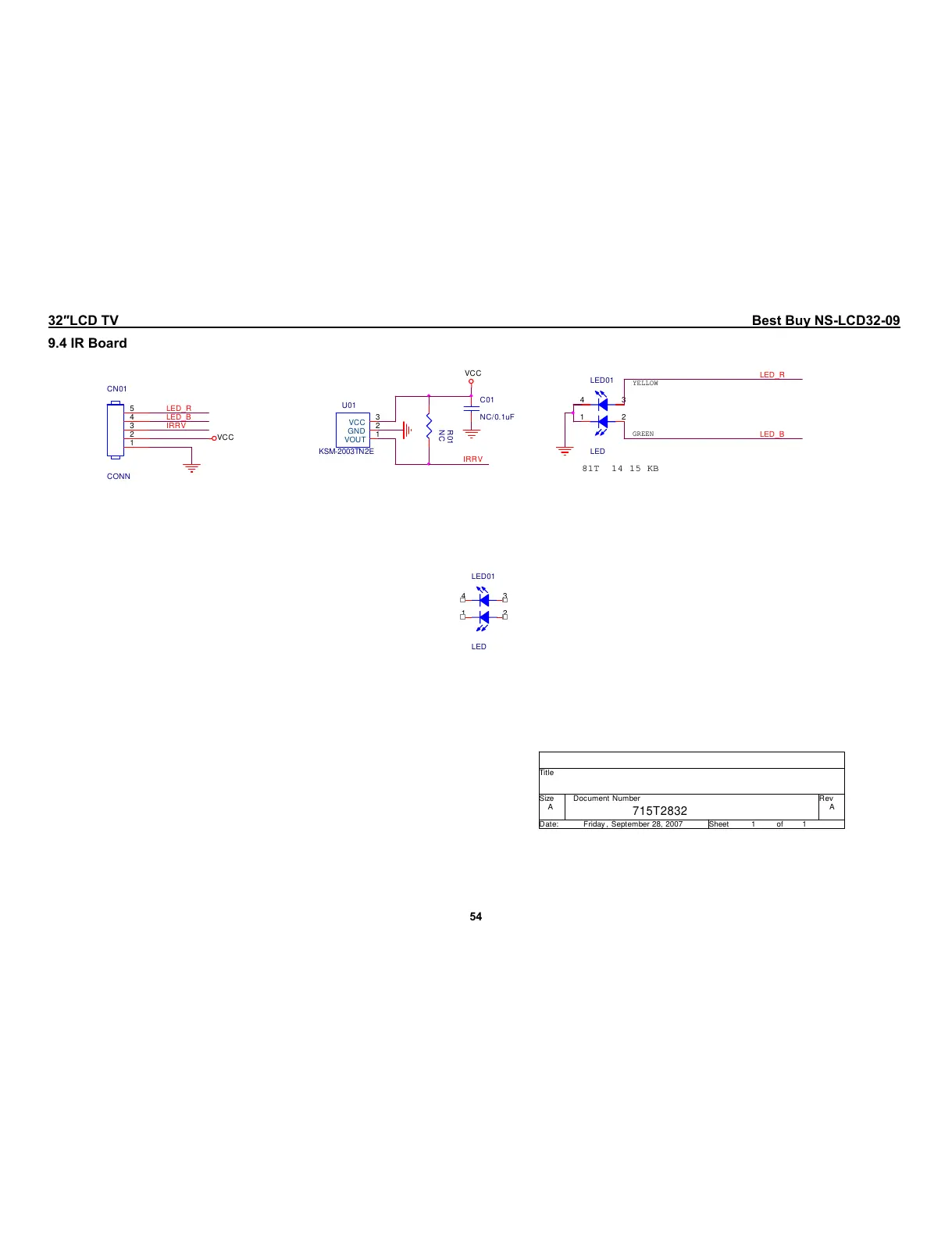

9.4 IR Board
U01
KSM-2003TN2E
1
2
3
VOUT
GND
VCC
AA
11Friday, September 28, 2007
715T2832
Title
Size Document Number Rev
Date: Sheet
of
81T 14 15 KB
VCC
CN01
CONN
1
2
3
4
5
LED_B
VCC
LED_R
LED_B
R01
NC
IRRV
LED_R
IRRV
LED01
LED
2
3
1
4
GREEN
YELLOW
LED01
LED
2
3
1
4
C01
NC/0.1uF
