Insignia NS-LCD32-09 Service Manual

32″LCD TV Best Buy NS-LCD32-09
56

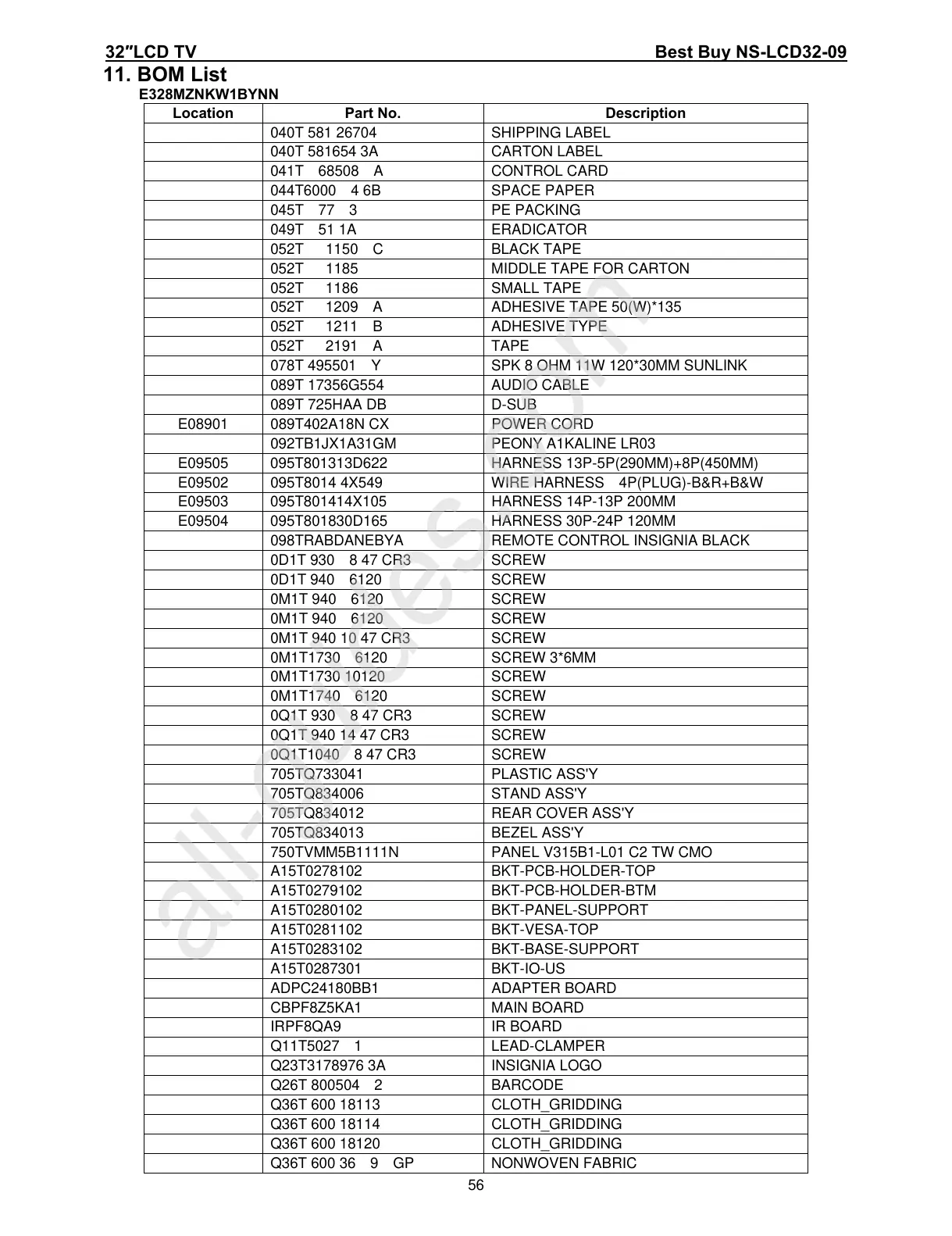

11. BOM List
E328MZNKW1BYNN
Location Part No. Description
040T 581 26704 SHIPPING LABEL
040T 581654 3A CARTON LABEL
041T 68508 A CONTROL CARD
044T6000 4 6B SPACE PAPER
045T 77 3 PE PACKING
049T 51 1A ERADICATOR
052T 1150 C BLACK TAPE
052T 1185 MIDDLE TAPE FOR CARTON
052T 1186 SMALL TAPE
052T 1209 A ADHESIVE TAPE 50(W)*135
052T 1211 B ADHESIVE TYPE
052T 2191 A TAPE
078T 495501 Y SPK 8 OHM 11W 120*30MM SUNLINK
089T 17356G554 AUDIO CABLE
089T 725HAA DB D-SUB
E08901 089T402A18N CX POWER CORD
092TB1JX1A31GM PEONY A1KALINE LR03
E09505 095T801313D622 HARNESS 13P-5P(290MM)+8P(450MM)
E09502 095T8014 4X549 WIRE HARNESS 4P(PLUG)-B&R+B&W
E09503 095T801414X105 HARNESS 14P-13P 200MM
E09504 095T801830D165 HARNESS 30P-24P 120MM
098TRABDANEBYA REMOTE CONTROL INSIGNIA BLACK
0D1T 930 8 47 CR3 SCREW
0D1T 940 6120 SCREW
0M1T 940 6120 SCREW
0M1T 940 6120 SCREW
0M1T 940 10 47 CR3 SCREW
0M1T1730 6120 SCREW 3*6MM
0M1T1730 10120 SCREW
0M1T1740 6120 SCREW
0Q1T 930 8 47 CR3 SCREW
0Q1T 940 14 47 CR3 SCREW
0Q1T1040 8 47 CR3 SCREW
705TQ733041 PLASTIC ASS'Y
705TQ834006 STAND ASS'Y
705TQ834012 REAR COVER ASS'Y
705TQ834013 BEZEL ASS'Y
750TVMM5B1111N PANEL V315B1-L01 C2 TW CMO
A15T0278102 BKT-PCB-HOLDER-TOP
A15T0279102 BKT-PCB-HOLDER-BTM
A15T0280102 BKT-PANEL-SUPPORT
A15T0281102 BKT-VESA-TOP
A15T0283102 BKT-BASE-SUPPORT
A15T0287301 BKT-IO-US
ADPC24180BB1 ADAPTER BOARD
CBPF8Z5KA1 MAIN BOARD
IRPF8QA9 IR BOARD
Q11T5027 1 LEAD-CLAMPER
Q23T3178976 3A INSIGNIA LOGO
Q26T 800504 2 BARCODE
Q36T 600 18113 CLOTH_GRIDDING
Q36T 600 18114 CLOTH_GRIDDING
Q36T 600 18120 CLOTH_GRIDDING
Q36T 600 36 9 GP NONWOVEN FABRIC
