Insignia NS-LCD32-09 Service Manual

32″LCD TV Best Buy NS-LCD32-09
58

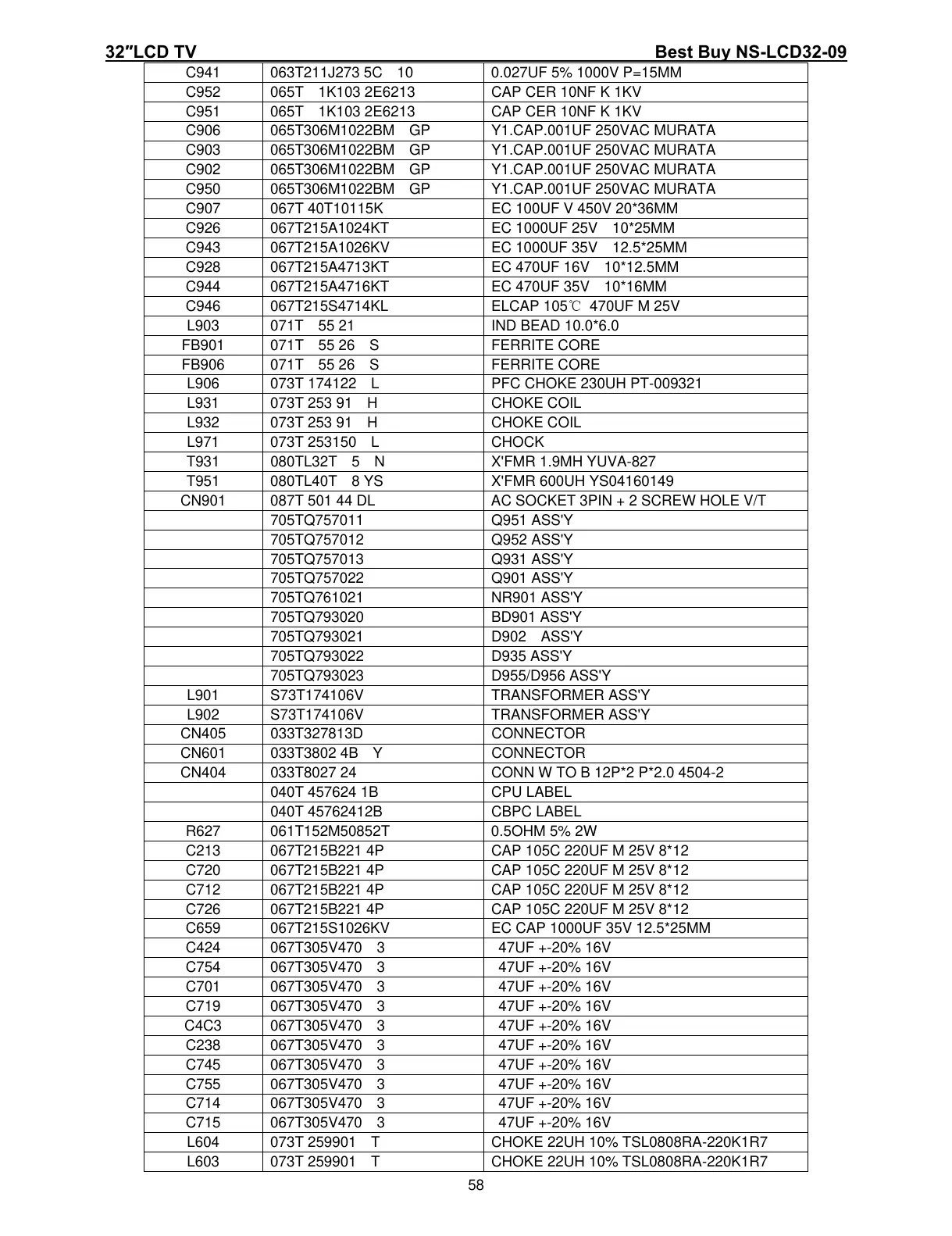

C941 063T211J273 5C 10 0.027UF 5% 1000V P=15MM
C952 065T 1K103 2E6213 CAP CER 10NF K 1KV
C951 065T 1K103 2E6213 CAP CER 10NF K 1KV
C906 065T306M1022BM GP Y1.CAP.001UF 250VAC MURATA
C903 065T306M1022BM GP Y1.CAP.001UF 250VAC MURATA
C902 065T306M1022BM GP Y1.CAP.001UF 250VAC MURATA
C950 065T306M1022BM GP Y1.CAP.001UF 250VAC MURATA
C907 067T 40T10115K EC 100UF V 450V 20*36MM
C926 067T215A1024KT EC 1000UF 25V 10*25MM
C943 067T215A1026KV EC 1000UF 35V 12.5*25MM
C928 067T215A4713KT EC 470UF 16V 10*12.5MM
C944 067T215A4716KT EC 470UF 35V 10*16MM
C946 067T215S4714KL
ELCAP 105℃ 470UF M 25V
L903 071T 55 21 IND BEAD 10.0*6.0
FB901 071T 55 26 S FERRITE CORE
FB906 071T 55 26 S FERRITE CORE
L906 073T 174122 L PFC CHOKE 230UH PT-009321
L931 073T 253 91 H CHOKE COIL
L932 073T 253 91 H CHOKE COIL
L971 073T 253150 L CHOCK
T931 080TL32T 5 N X'FMR 1.9MH YUVA-827
T951 080TL40T 8 YS X'FMR 600UH YS04160149
CN901 087T 501 44 DL AC SOCKET 3PIN + 2 SCREW HOLE V/T
705TQ757011 Q951 ASS'Y
705TQ757012 Q952 ASS'Y
705TQ757013 Q931 ASS'Y
705TQ757022 Q901 ASS'Y
705TQ761021 NR901 ASS'Y
705TQ793020 BD901 ASS'Y
705TQ793021 D902 ASS'Y
705TQ793022 D935 ASS'Y
705TQ793023 D955/D956 ASS'Y
L901 S73T174106V TRANSFORMER ASS'Y
L902 S73T174106V TRANSFORMER ASS'Y
CN405 033T327813D CONNECTOR
CN601 033T3802 4B Y CONNECTOR
CN404 033T8027 24 CONN W TO B 12P*2 P*2.0 4504-2
040T 457624 1B CPU LABEL
040T 45762412B CBPC LABEL
R627 061T152M50852T 0.5OHM 5% 2W
C213 067T215B221 4P CAP 105C 220UF M 25V 8*12
C720 067T215B221 4P CAP 105C 220UF M 25V 8*12
C712 067T215B221 4P CAP 105C 220UF M 25V 8*12
C726 067T215B221 4P CAP 105C 220UF M 25V 8*12
C659 067T215S1026KV EC CAP 1000UF 35V 12.5*25MM
C424 067T305V470 3 47UF +-20% 16V
C754 067T305V470 3 47UF +-20% 16V
C701 067T305V470 3 47UF +-20% 16V
C719 067T305V470 3 47UF +-20% 16V
C4C3 067T305V470 3 47UF +-20% 16V
C238 067T305V470 3 47UF +-20% 16V
C745 067T305V470 3 47UF +-20% 16V
C755 067T305V470 3 47UF +-20% 16V
C714 067T305V470 3 47UF +-20% 16V
C715 067T305V470 3 47UF +-20% 16V
L604 073T 259901 T CHOKE 22UH 10% TSL0808RA-220K1R7
L603 073T 259901 T CHOKE 22UH 10% TSL0808RA-220K1R7
