Reversing the door position
Based on the location where you plan to use your refrigerator, you may find it
more convenient to reverse the position of the door, to have it open from right to
left instead of left to right.
Determining which method to use to reverse the door position

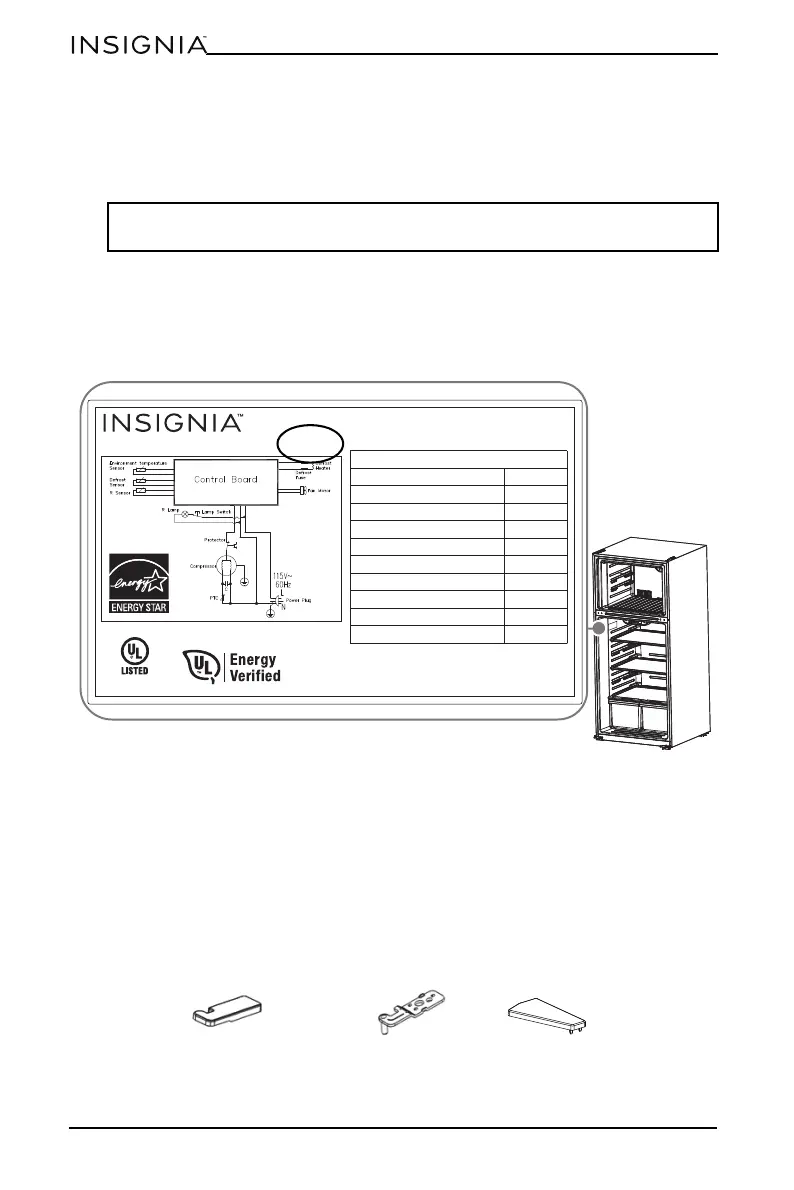

Please check the version number of your refrigerator on the rating label located
on the left side of the refrigerator compartment. For Rev A or B, please refer to
Method A for door reversing. For Rev C, please refer to Method B for door
reversing.
Preparing to reverse the door position
You will need: A standard screwdriver, a Phillips screwdriver, and the included
Allen wrench.
• Make sure that your refrigerator is unplugged and empty.
• Have someone available to assist you in the process.
• Keep all of the parts you remove to reuse them later.
Reversing the door position - Method A
Parts included with the hinge kit:
CAUTION: To avoid injury to yourself or your property, we recommend that
someone assist you during the door reversal process.
SPECIFICATIONS
DESIGN PRESSURE
HIGH SIDE / LOW SIDE
REFRIGERANT / AMOUNT
RATED VOLTAGE
RATED FREQUENCY
RATED CURRENT
DEFROST POWER
NET WEIGHT
FOAMING AGENT
W x D x H
2A
260W
Cyclopentane
198.4Ibs(90kg)
32.8x32.3x66.2 in
(83.4x82x168.1 cm)
250psig / 110psig
R600a, 2.47Oz(70g)
AC115V
60Hz
MODEL: NS-RTM21SS7 Rev: C
SERIAL NO.: 17D07C00001
Household Refrigerator
Made in China Insignia Service 1-877-467-4289 (U.S. and Canada)6M43 NS
HOUSEHOLD REFRIGERATOR
Left top hinge cover
Top left hinge
Cover
To Next Page
