Guide Rods
Shroud Plate
Holes must line up
2 - 3 ¾” Hex Bolts
4 - 3/8” Flat Washers
2 - 3/8” Lock Nuts
FINGER TIGHTEN ONLY!

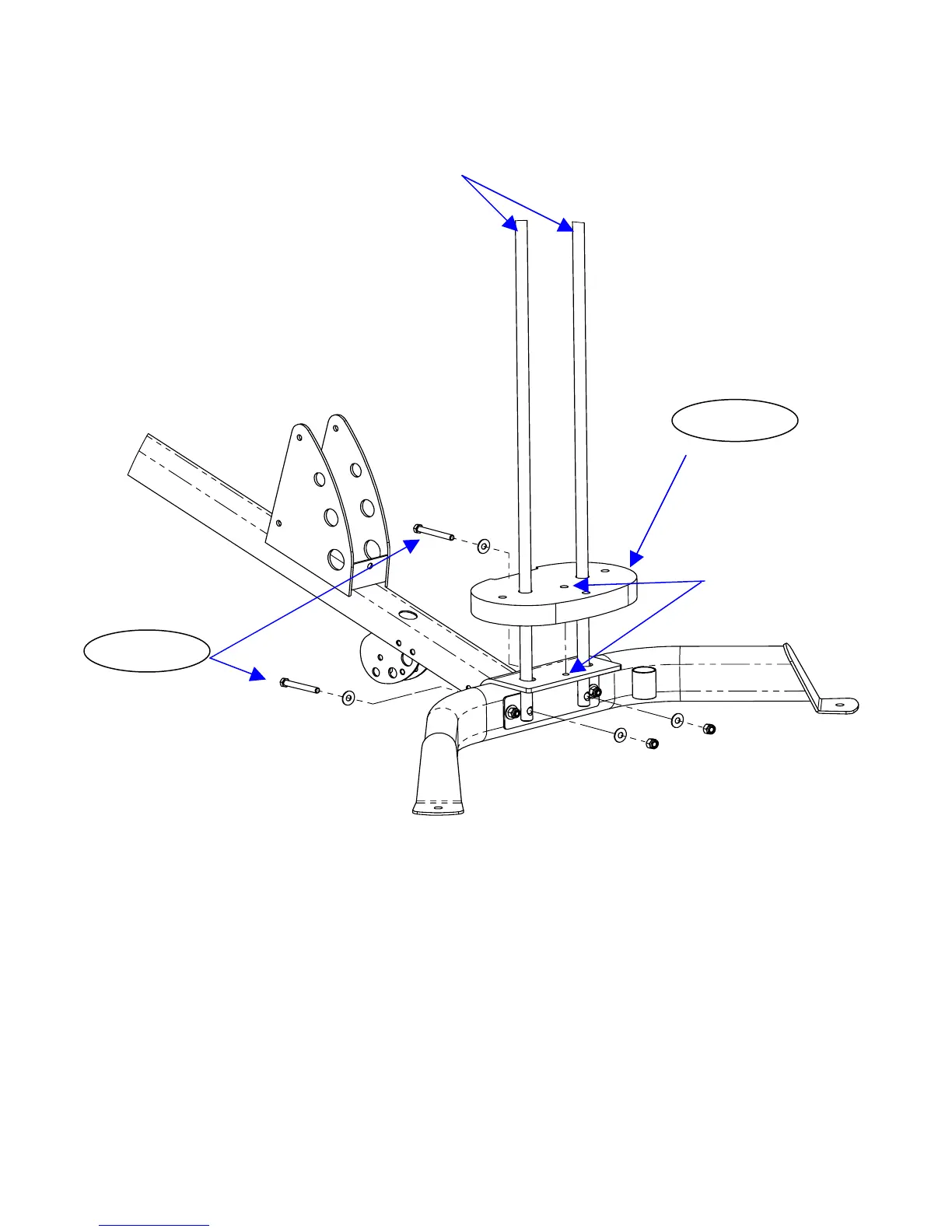

STEP 3: Attach Guide Rods to Rear Base using: Two (3 ¾” Hex Bolts)
Four (3/8” Flat Washers)
Note: Finger tighten only Two (3/8” Lock Nuts)
Note: If these bolts do not go in smoothly
Loosen bolts from step 1.
STEP 4: Slide Shroud Plate down Guide Rods onto Rear Base. Make sure that center hole in
Shroud Plate lines up with hole between Guide Rods in Main Base.
Page 8
STEP 3
STEP 4
To Next Page
