Inspire M1 - Main Upright 1

IMPORTANT!
Guide Rods must be
2 - 1 ¾” Hex Bolts in Front of plate.
4 - 3/8” Flat Washers
2 - 3/8” Lock Nuts
FINGER TIGHTEN ONLY
Main Upright
2 - 4” Hex Bolts
4 - 3/8” Flat Washers
2 - 3/8” Lock Nuts
FINGER TIGHTEN ONLY

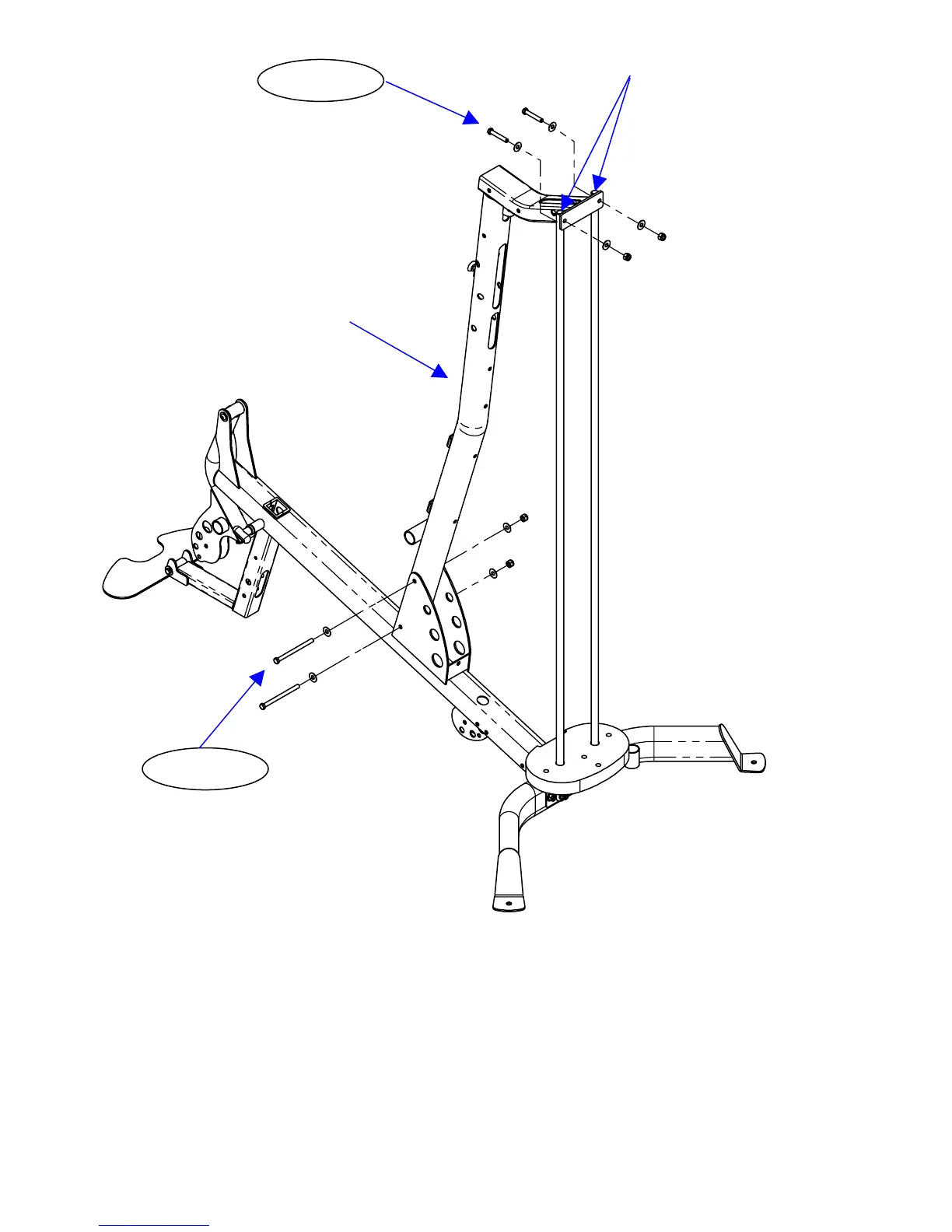

Step 5: Attach Main Upright to Main Base using: Two (4” Hex Bolts)
Note: Finger Tighten Only Four (3/8” Flat Washers)
Two (3/8” Lock Nuts)
Step 6: Attach Guide Rods to Main Upright using: Two (1 ¾” Hex Bolts)
Note: Finger Tighten Only Four (3/8” Flat Washers)
Two (3/8” Lock Nuts)
Page 9
STEP 5
STEP 6
