Note: Be sure guide rods are positioned
in front of plate.
2 – 1 ¾” Hex Bolts
4 – 3/8” Flat Washers
2 – 3/8” Lock Nuts
Shroud Plate Assembly
1 – 2 ½” Hex Bolt
2 – 3/8” Flat Washers
1 – 3/8” Lock Nut

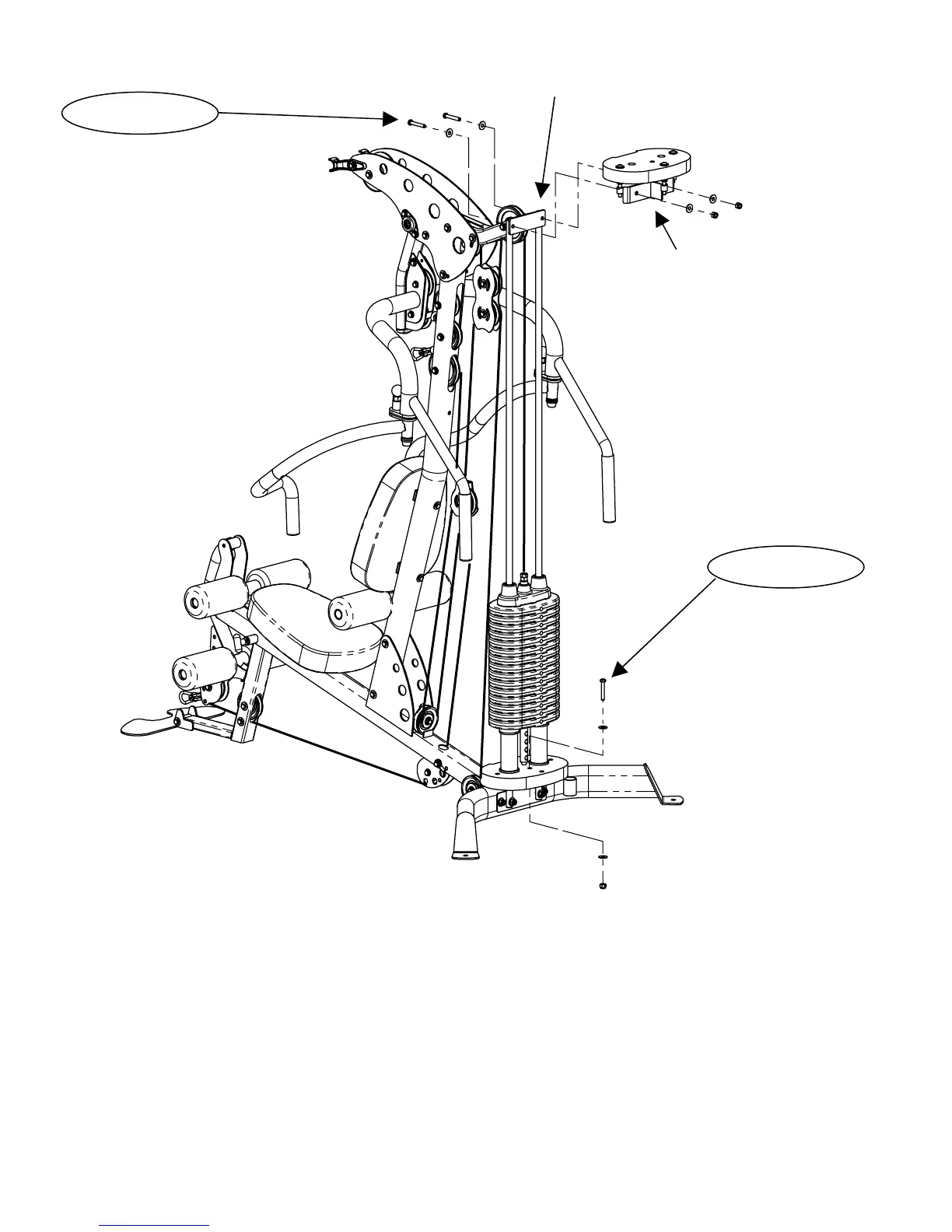

Step 30: Secure Guide Rods and Shroud Plate Assembly Two (1 ¾” Hex Bolts)
to Main Upright using: Four (3/8” Flat Washers)
Two (3/8” Lock Nuts)
Step 31: This step deleted
Step 32: Secure Bottom Shroud Plate to Rear Base using: One (2 ½” Hex Bolt)
Two (3/8” Flat Washers)
Note: If heavy stack has been installed, bolt in step One (3/8” Lock Nut)
32 must be installed from the bottom.
Note: Tighten bolts in Steps 30 – 32 and Steps 3, 5, 7, and 18 now.
Page 21
STEP 30
STEP 32
To Next Page
