Inspire M1 User Manual

STEP 11
STEP 12
STEP 13
2 – Lat Bar Holders
1 – 4 ¾” Hex Bolt
1 – 3” Spacer Tube
2 – 3/8” Flat Washers
1 – 3/8” Lock Nut
1 – 4 ½” Wide Pulley Pulley 6
1 – 4” Hex Bolt
2 – 5/8” Barrel Spacers Pulley 5
2 – 3/8” Flat Washers
1 – 3/8” Lock Nut
1 – 3 ½” Pulley
1 – 4” Hex Bolt
2 – 1” Barrel Spacers
2 – 3/8” Flat Washers
1 – 3/8” Lock Nut

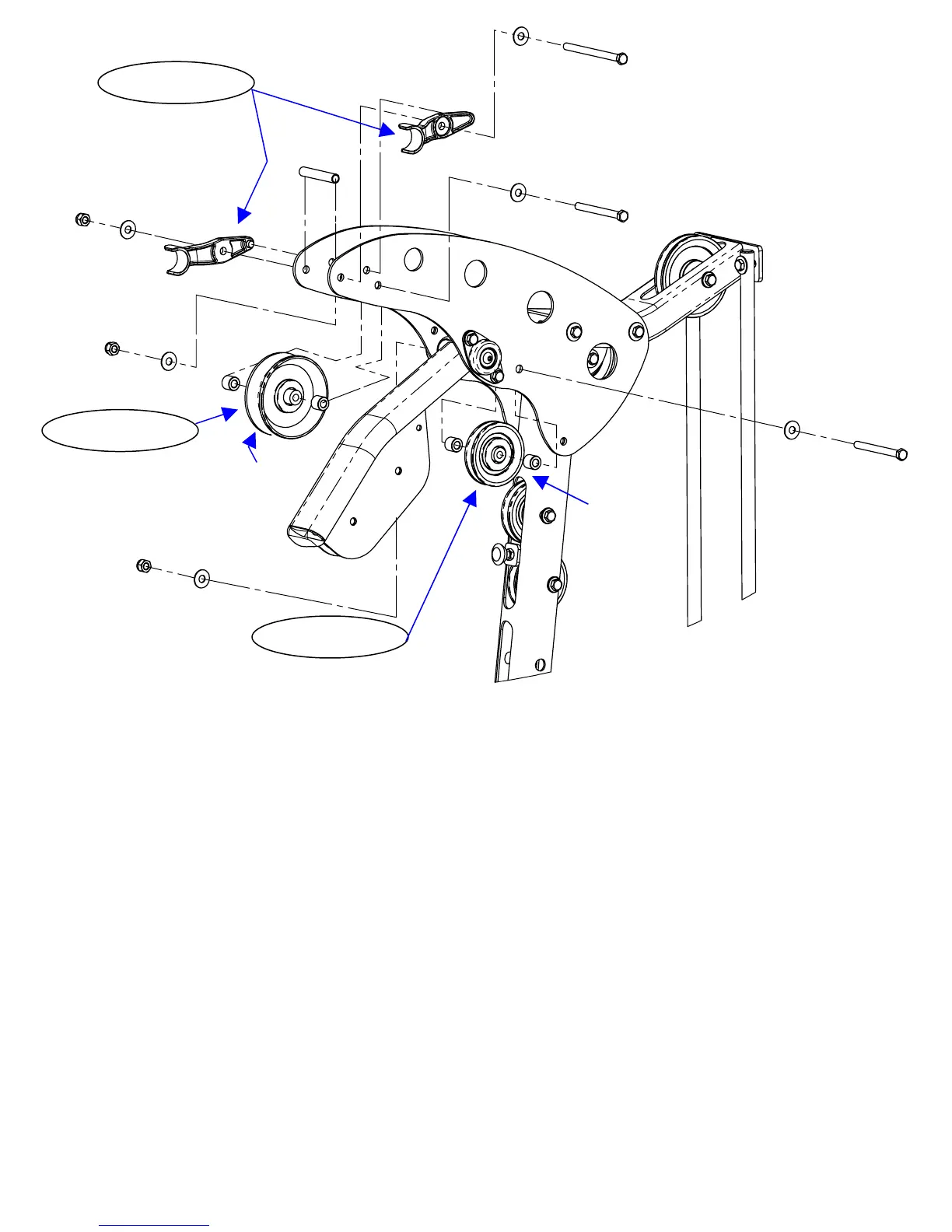

Step 11: Attach Pulley 5 to Top Beam using: One (3 ½” Pulley)
One (4” Hex Bolt)
Note: Finger Tighten Only Two (1” Barrel Spacers)
Two (3/8” Flat Washers)
One (3/8” Lock Nut)
Step 12: Attach Pulley 6 to Top Beam using: One (4 ½” Wide Pulley)
One (4” Hex Bolt)
Note: Finger Tighten Only Two (5/8” Barrel Spacers)
Two (3/8” Flat Washers)
One (3/8” Lock Nut)
Step 13: Attach Lat Bar Holders to Top Beam using: Two (Lat Bar Holders)
One (4 ¾” Hex Bolt)
One (3” Spacer Tube)
NOTE: Tighten all bolts in steps 8 – 13 Now. Two (3/8” Flat Washers)
Do Not Over Tighten One (3/8” Lock Nut)
Page 13
