LCR-800 Series User Manual
58
Tot_BIN setting:
z Press F1/F2 key to select the white inverted characters “Tot_Bin”.
z Key-in needed BIN value through panel keyboard.
z Press ↵ key. Please refer to Figure 8-15 below.
Note: Tot_Bin setting: It can select ascending from 1 to 13 BIN the most.
For example: If BIN1 sorting range is at
±5%, then BIN2 sorting range must
be larger than
±5%, the rest can be done accordingly.

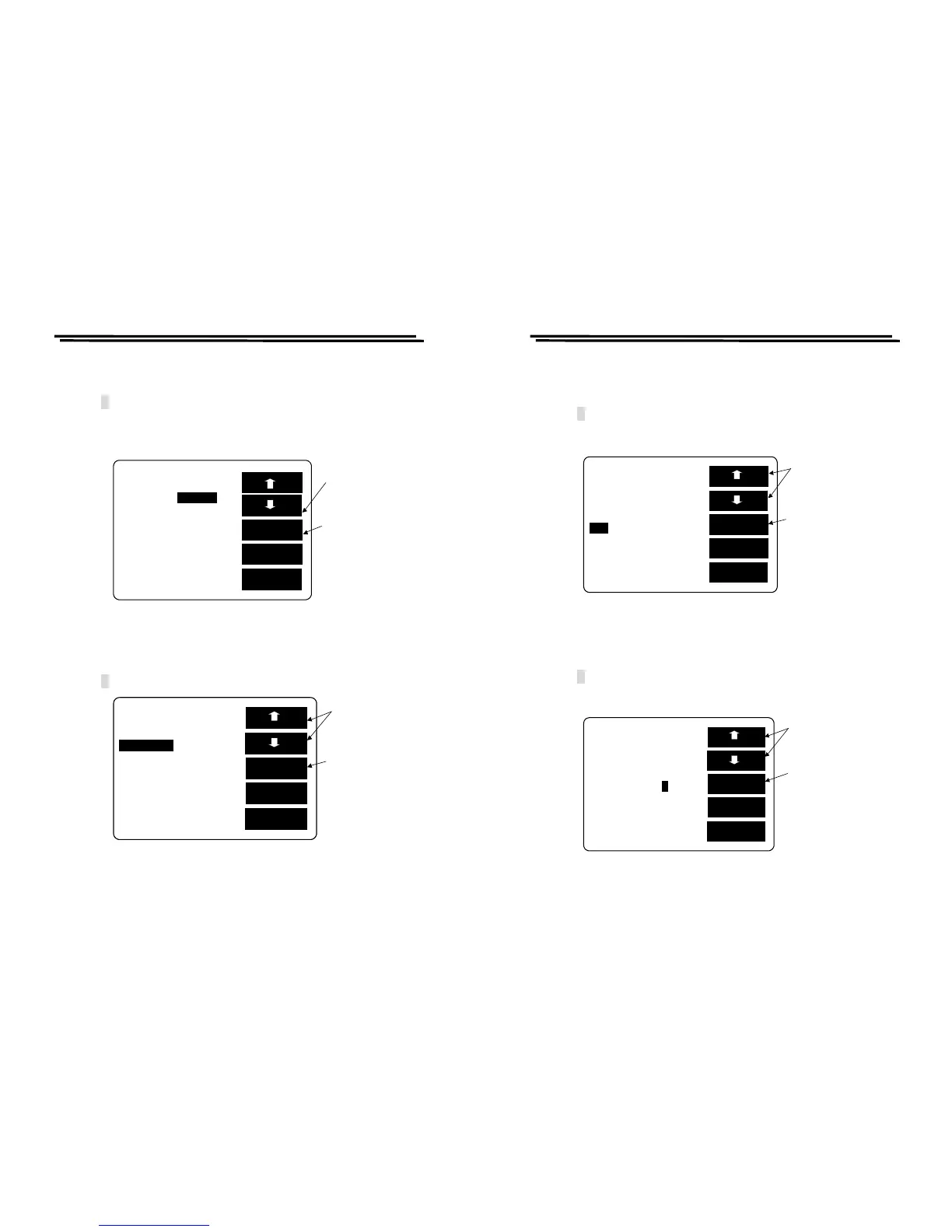

Figure 8-15
C_Nom.Val setting:
z Press F1/F2 key to select the white inverted characters “C_Nom.Val”.
z Key-in Nominal Value through panel keyboard.
z Press ↵ key. Please refer to Figure 8-16 below.
Figure 8-16
EXIT
BIN 1
SORT BY C TOt_Bin:13
C_Nom.Val: 15.000pF
LCR-800 Series User Manual
59
Max setting:
z Press F1/F2 key to select the white inverted characters “Max”.
z Key-in SORT Max value through panel keyboard.
z Press ↵ key. Please refer to Figure 8-17 below.
※After the value is input, it will proceed conversion of +% automatically.
Figure 8-17
“+” setting:
z Press F1/F2 key to select the white inverted characters “+”.
z Key-in the largest percentage of SORT Nominal Value through the panel
keyboard.
z Press ↵ key. Please refer to Figure 8-18 below.
※After the value is input, it will proceed conversion of Max automatically.
Figure 8-18
EXIT
BIN 1
SORT BY CTOt
To Next Page
