Instron 5965 - Page 60

Chapter: Installation
4-8 M10-16248-EN

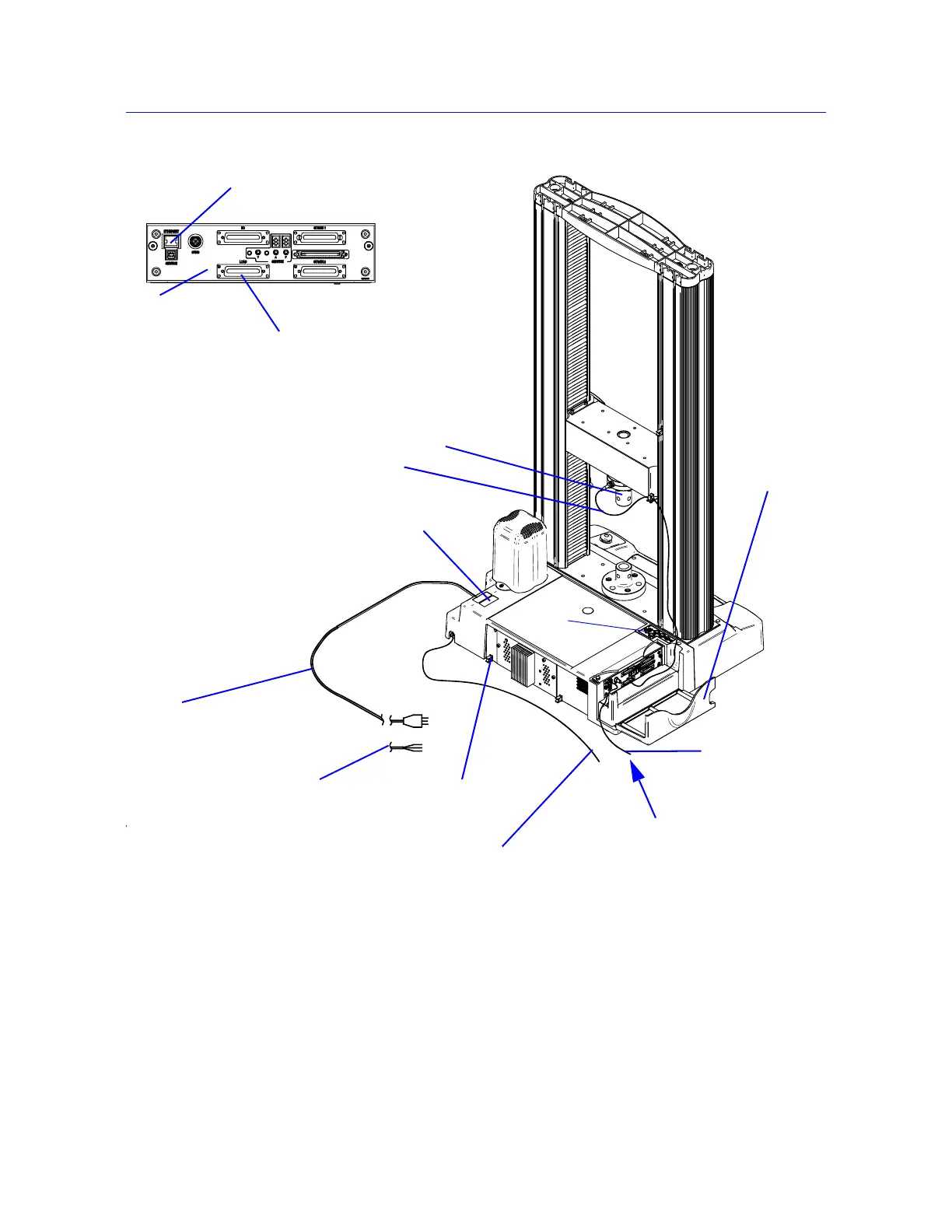

Figure 4-5. 5960 System Connections
Ethernet
crossover cable
Computer interface
connection
Load cell cable
Mains power cable
GRN/YEL - Earth
BRN - Live
BLU - Neutral
Ground stud
Load cell
Controller
cover
Computer interface
connection
Load cell connection
Controller
Supplemental ground
cable
System ID label
Options
panel
