13
En

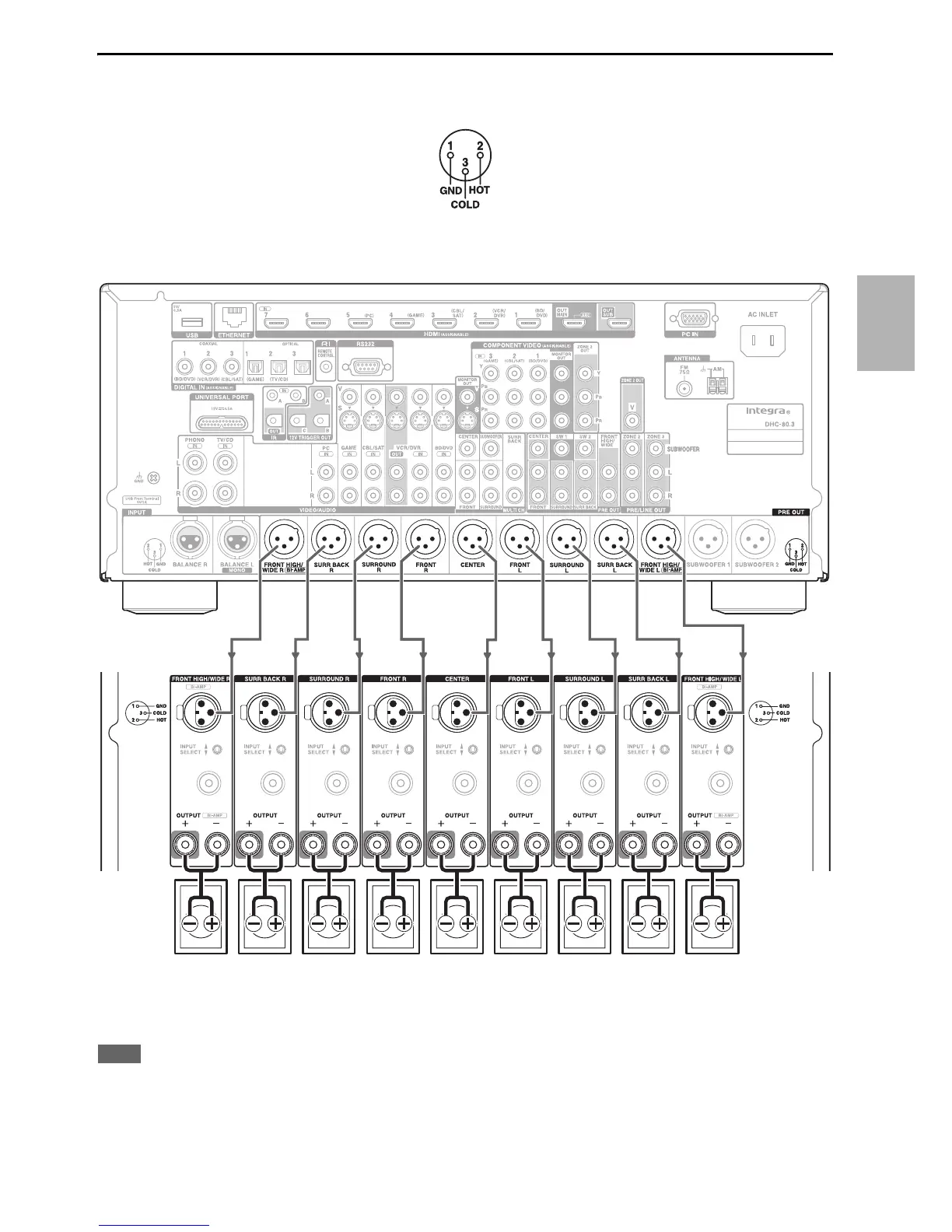

Connecting a Power Amplifier via XLR Jacks
You can connect the AV controller to a multichannel power amplifier via balanced XLR jacks by using several XLR
audio cables.
The AV controller’s balanced PRE OUT jacks are wired as shown.
See your multichannel power amplifier’s instruction manual for more information on connecting speakers.
Note
*1
Specify crossover frequency for the channel that you want to output in “Speaker Configuration” ( page 53).
*2
If you use the front high and wide speakers at the same time, you need to set the “Front High + Front Wide” setting to “Yes
( page 52). The audio of front wide is output from the SURR BACK outputs.
Surround
back (Front
wide
*2
)
right
Multichannel
power amplifier
Surround
right
Front right Center Front left Surround
left
Surround
back (Front
wide
*2
)
left
Front
high/wide
right
*1
Front
high/wide
left
*1
AV controller
