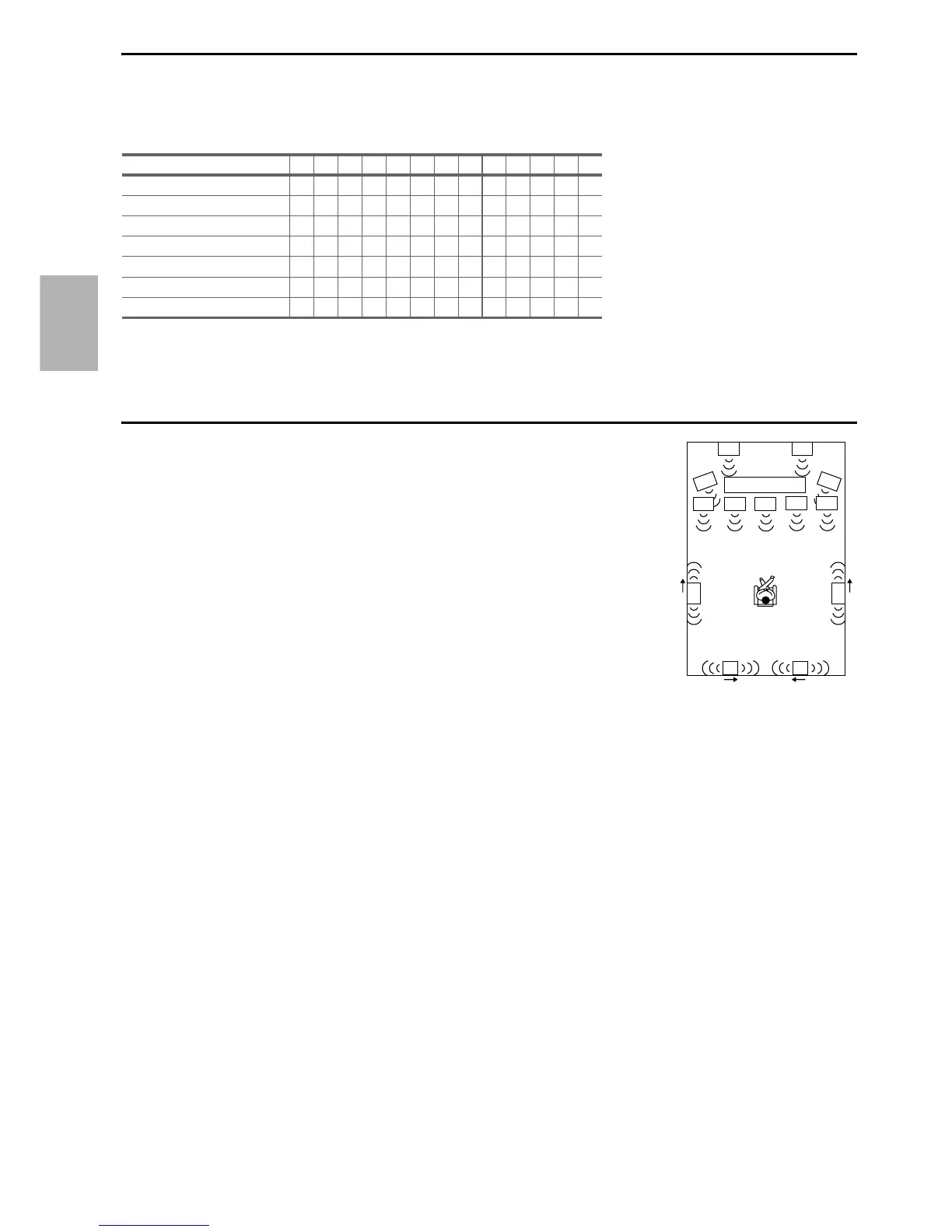

Speaker Configuration
The following table indicates the channels you should use depending on the number of speakers that you have.
No matter how many speakers you use, 2 powered subwoofers are recommended for a really powerful and solid bass.
To get the best from your surround sound system, you need to set the speaker settings automatically (➔ page 34) or
manually (➔ page 52).
*1
If you’re using only one surround back speaker, connect it to the SURR BACK L output.
*2
If you use the front high and wide speakers at the same time, you need to set the “Front High + Front Wide” setting to “Yes”
(➔ page 52). The audio of front wide is output from the SURR BACK outputs.
Using Dipole Speakers
You can use dipole speakers for the surround and surround back speakers. Dipole
speakers output the same sound in two directions.
Dipole speakers typically have an arrow printed on them to indicate how they should be
positioned. The surround dipole speakers (a) should be positioned so that their arrows
point toward the TV/screen, while the surround back dipole speakers (b) should be
positioned so that their arrows point toward each other, as shown.
Number of speakers 2345677788999
Front speakers ✔✔✔✔✔✔✔✔✔✔✔✔✔
Center speaker ✔ ✔✔✔✔✔✔✔✔✔✔
Surround speakers ✔✔✔✔✔✔✔✔✔✔✔
Surround back speaker
*1
✔✔✔
Surround back speakers ✔✔✔
Front high speakers ✔✔✔✔
Front wide speakers
*2
✔✔✔✔
bb
aa
TV/screen
