7.1. 2c h
7.1ch
5.1.2ch
5.1.4ch
7.1.4ch
5.1ch
34

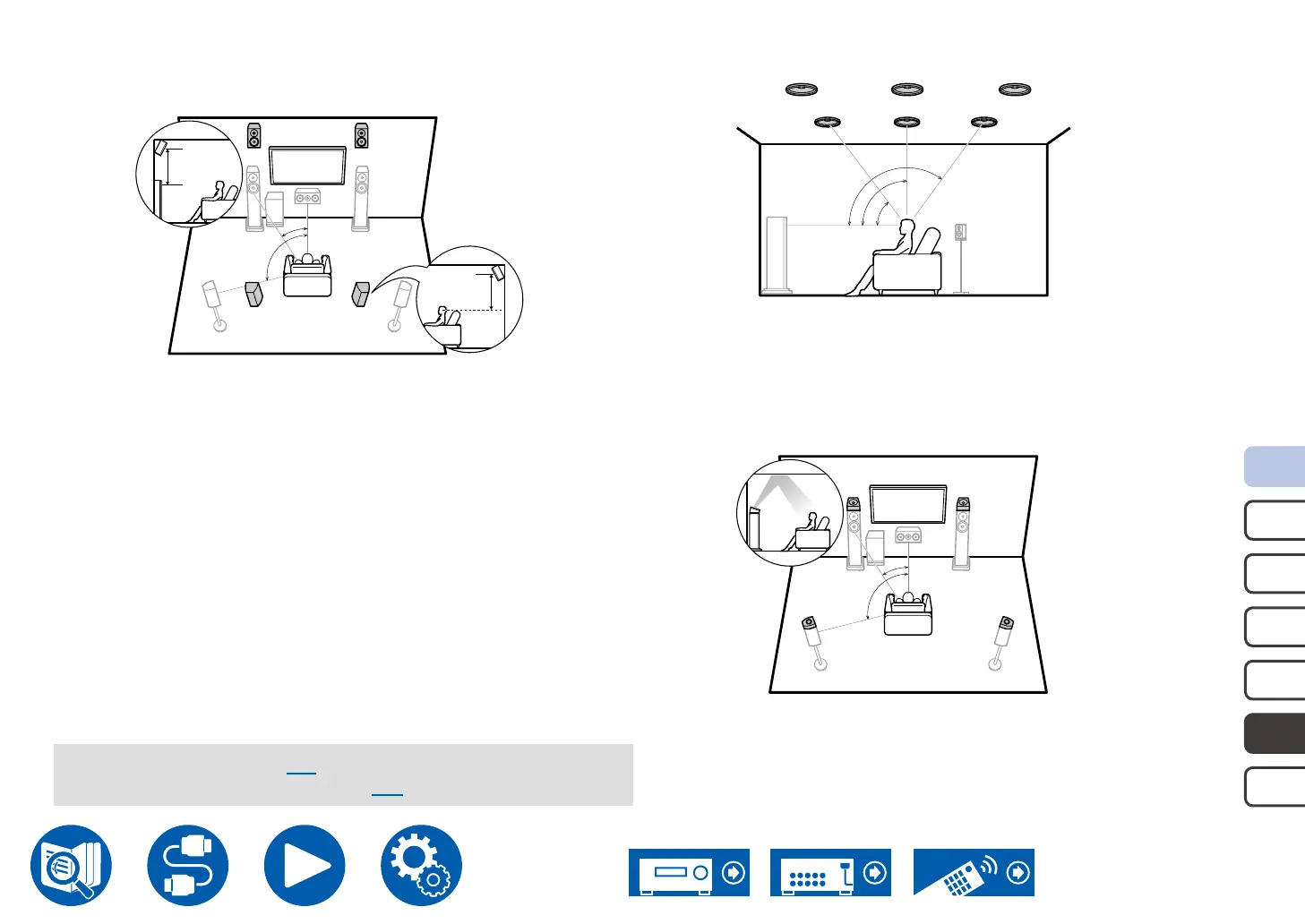

Speaker Installation
5.1.4 Channel System
High Speakers
b
FHL FHR
RHL RHR
a
a: 22° to 30°
b: 120°
3´ (0.9 m)
or more
3´ (0.9 m)
or more
FHL, FHR Place the front high speakers directly above the front speakers,
angled to face the listening position.
RHL, RHR Place the rear high speakers so the lateral distance matches the
front speakers, angled to face the listening position.
5.1.4 ch connection ( →p51)
5.1.4 ch + ZONE 2 connection ( →p52)
Top Speakers
TFR
TMR
TRR
a
b
c
a: 30° to 55°
b: 65° to 100°
c: 125° to 150°
TFL, TFR
Fit top front speakers on the ceiling in front of the listening position.
TML, TMR Fit top middle speakers on the ceiling directly above the listening
position.
TRL, TRR Fit top rear speakers on the ceiling behind the listening position.
• Match the lateral distance of the top speakers to the front speakers.
Dolby Enabled Speakers
b
a
DFL DFR
DSL DSR
a: 22° to 30°
b: 120°
DFL, DFR The Dolby enabled speakers (front) are installed on top of the front
speakers.
DSL, DSR The Dolby enabled speakers (surround) are installed on top of the
surround speakers.
