Integra DTM-5.3 Service Manual

DTM-5.3

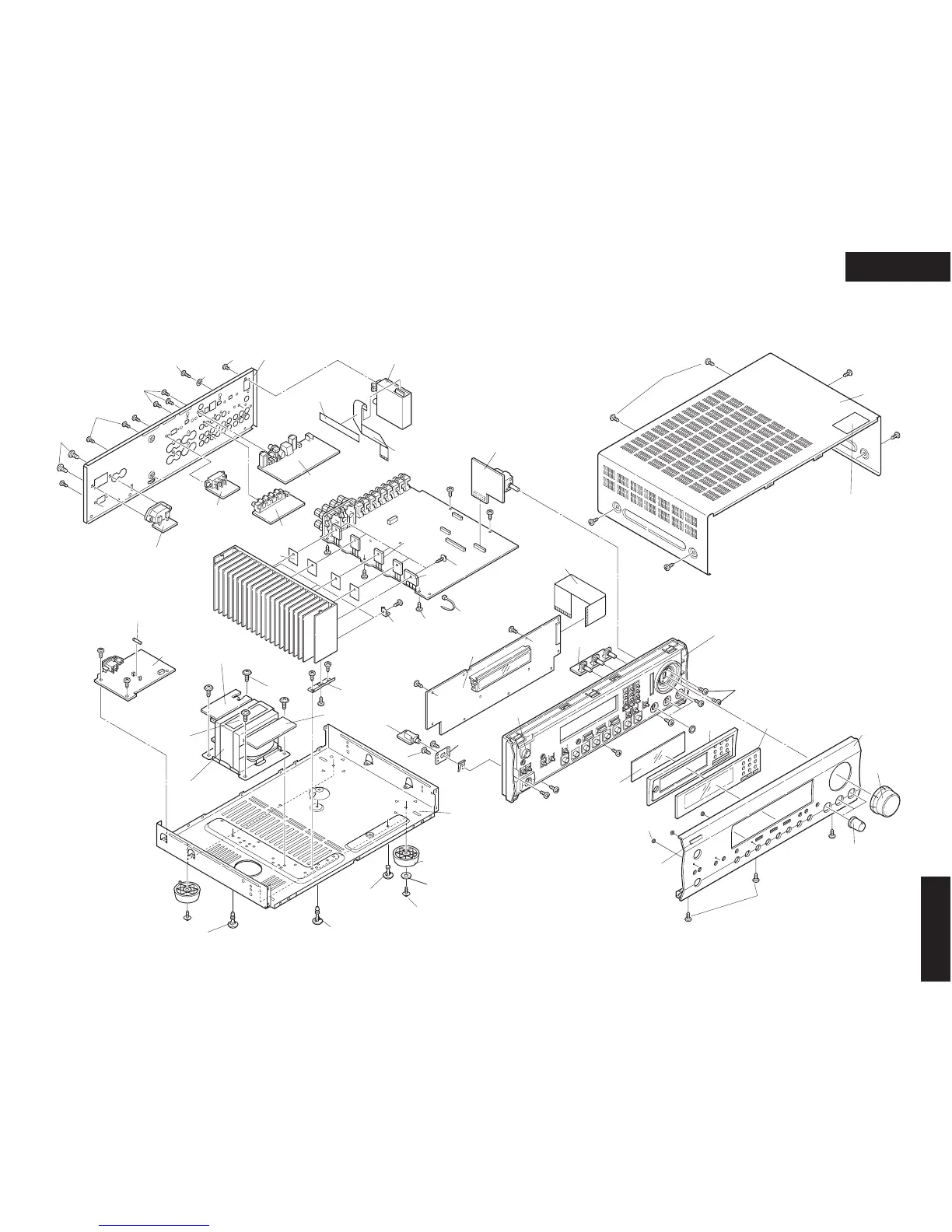

EXPLODED VIEW
DTM-5.3
44
41
41
42
22
43
19
U8
F901
U2
T901
U6
9
24
U11
13
8
7
6
34
33
32
5
U5
4
3
2
1
4
29
40
27
28
39
41
36
35
38
U12
U1
P701
41
30
37
U4
U13
P710
25
U7
U10
U3
E811
Q523
Q526
D911
11
4
E801
15

Integra DTM-5.3 Specifications

Amplifier Section

power output	100 Watts per channel
dynamic power output at 2 ohms	2 × 170 Watts
dynamic power output at 4 ohms	2 × 135 Watts
dynamic power output at 8 ohms	2 × 140 Watts
total harmonic distortion at rated power	0.08%
IM distortion at rated power	0.08%
damping factor	60 at 8 ohms
phono input sensitivity and impedance	2.5 mV, 50 kohms
line input sensitivity and impedance	150 mV, 50 kohms
video input sensitivity and impedance	1 Vp-p, 75 ohms
phono overload	120 mV RMS at 1 kHz

Tuner Section FM

tuning range	87.5 to 108.0 MHz
usable sensitivity mono	11.2 dBf, 1.0 µV
usable sensitivity stereo	17.2 dBf, 2.0 µV
signal-to-noise ratio mono	76 dB
signal-to-noise ratio stereo	70 dB
total harmonic distortion mono	0.15%
total harmonic distortion stereo	0.25%

Tuner Section AM

tuning range	530 to 1, 710 kHz
usable sensitivity	30 µV
image rejection ratio	40 dB
signal-to-noise ratio	40 dB
total harmonic distortion	0.7%

General

power supply	AC 120 V, 60 Hz
power consumption	2.8 A
dimensions	17-1/8" × 5-7/8" × 13-7/16"
weight	19.8 lbs.
