Connecting the Speaker Cables
Screw-type speaker terminals
Using Banana Plugs (North American models)
• If you are using banana plugs, tighten the speaker terminal before inserting the banana plug.
• Do not insert the speaker code directly into the center hole of the speaker terminal.

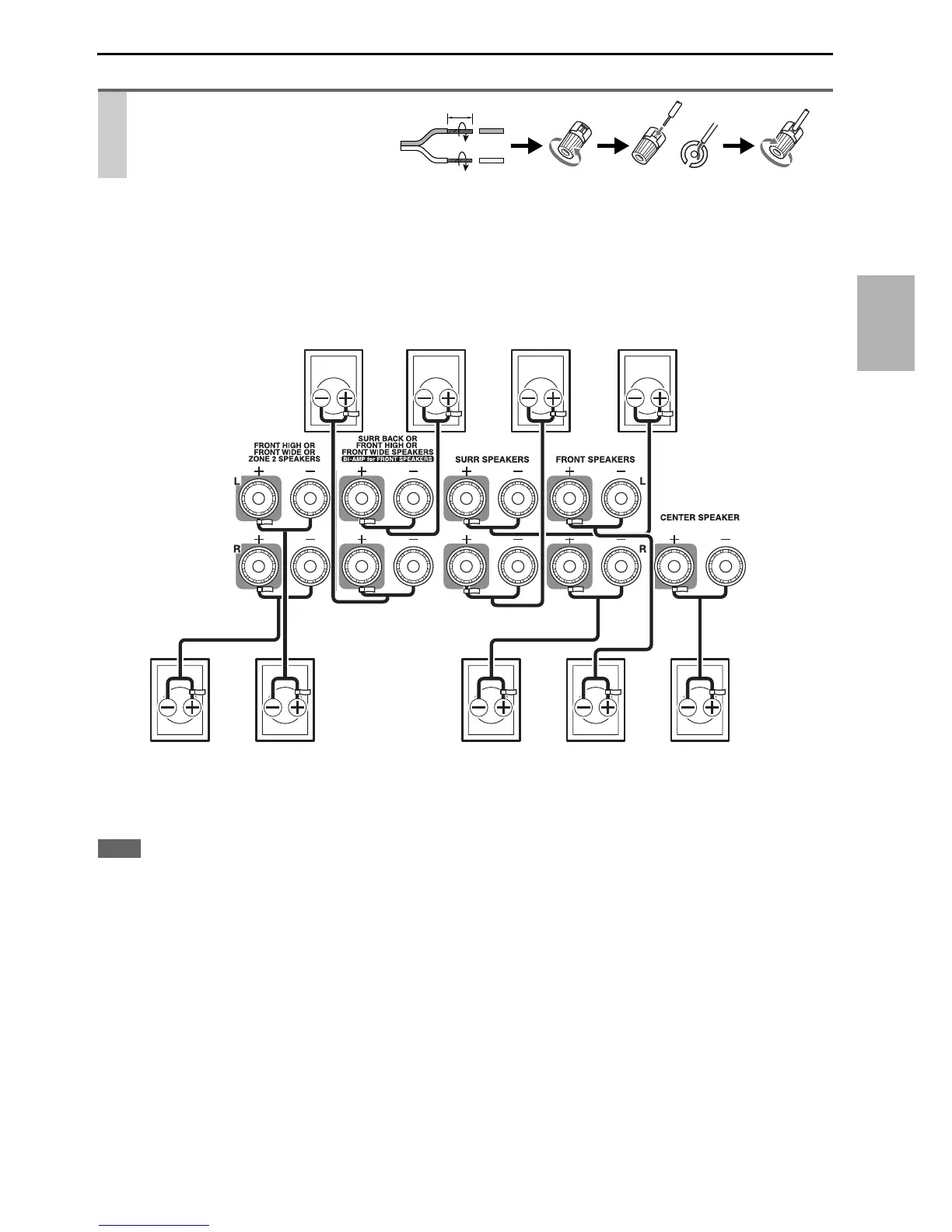

The following illustration shows which speaker should be connected to each pair of terminals. If you’re using only one
surround back speaker, connect it to the SURR BACK OR FRONT HIGH OR FRONT WIDE L terminals.
Note
• The front wide speakers can also be connected to the FRONT HIGH OR FRONT WIDE OR ZONE 2 SPEAKERS
terminals. When doing so, set “Front High/Front Wide/Zone 2” in Speaker Setup to “Front Wide” (
➔ 46).
• The front high or front wide speakers can also be connected to the SURR BACK OR FRONT HIGH OR FRONT
WIDE SPEAKERS terminals. When doing so, set “Surr Back/Front High/Front Wide” in Speaker Setup to “Front
High” or “Front Wide” (
➔ 46).
Strip 1/2" to 5/8" (12 to 15 mm) of
insulation from the ends of the
speaker cables, and twist the bare
wires tightly, as shown.
1/2" to 5/8"(12 to 15 mm)
Surround back
left speaker
Surround left
speaker
Surround right
speaker
Front high
left speaker/
Front wide
left speaker
Front high
right speaker/
Front wide
right speaker
Center
speaker
Front right
speaker
Surround back
right speaker
Front left
speaker
