If you want to use a more powerful power amplifier and use the AV receiver as a preamp, connect it to the PRE OUT
jacks, and connect all speakers and the subwoofer to the power amplifier. If you have a powered subwoofer, connect it to
this AV receiver’s PRE OUT: SUBWOOFER jack. You can connect the powered subwoofer with two PRE OUT:
SUBWOOFER jacks respectively. The same signal is output from each jack.

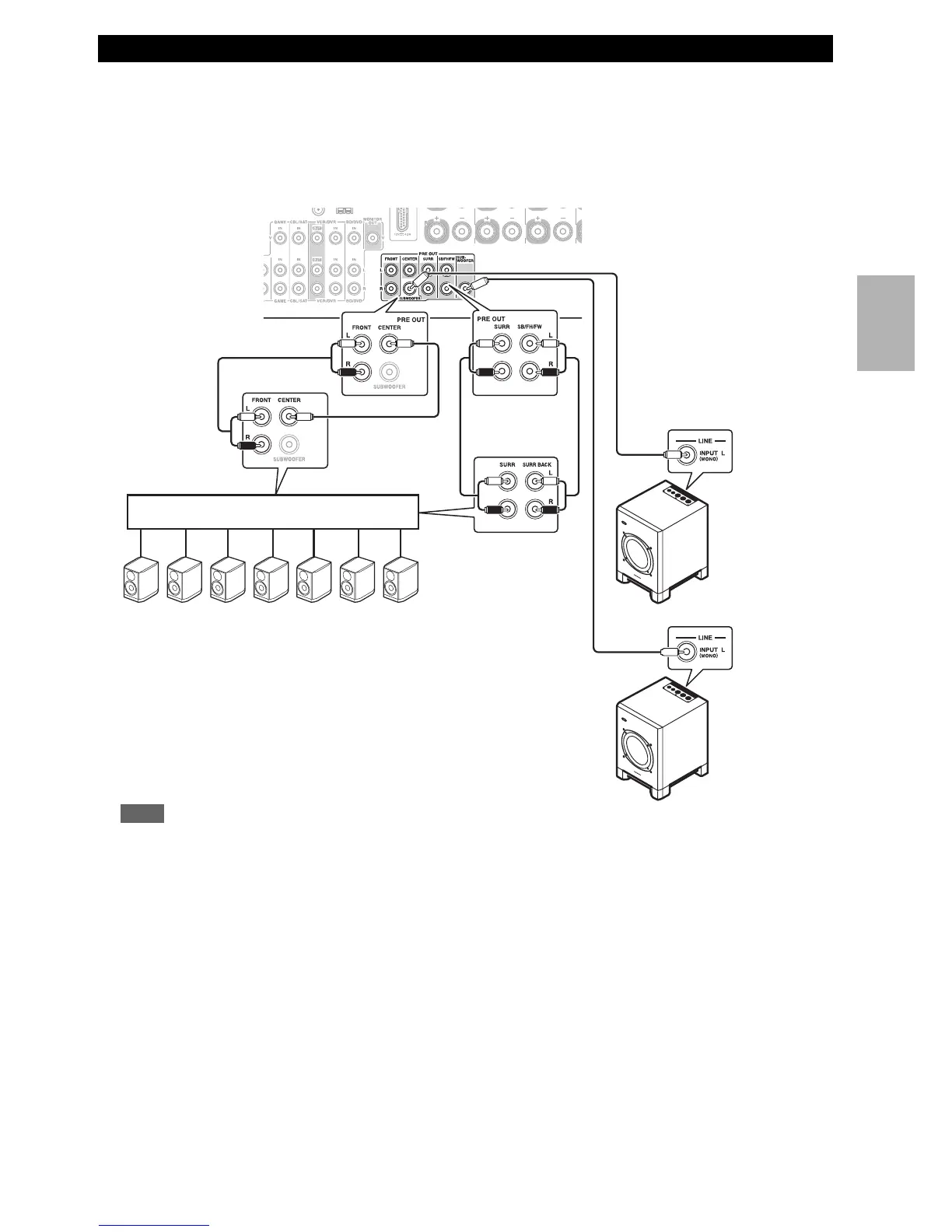

Connecting a Power Amplifier
2 3 4 5 6 71
Power amplifier
1. Front left speaker
2. Center speaker
3. Front right speaker
4. Surround left speaker
5. Surround right speaker
6. Surround back/Front wide/Front high left speaker
*1
7. Surround back/Front wide/Front high right speaker
*1
Powered subwoofer
See
“Connecting a powered Sub-
woofer” (➔ 14) for more informa-
tion
Note
*1
Specify “None” for the channel that you don’t want to output in
“Speaker Configuration” (
➔ 46).
