Front & Rear Panels
North American models
Australian model
The actual front panel has various logos printed on it. They are not shown here for clarity.
The page numbers in parentheses show where you can find the main explanation for each item.
a On/Standby button (➔ 22)
b Standby indicator (➔ 22)
c Zone 2 indicator (➔ 62)
d Tone and Tone Level buttons (➔ 60, 63)
e Remote control sensor (➔ 4)
f Display (➔ 9)
g Movie/TV button (➔ 37)
h Music button (➔ 37)
i Game button (➔ 37)
j Dimmer button (North American models) (➔ 23)
k Memory button (➔ 28)
l Tuning Mode button (➔ 28)
m Display button (➔ 23)
n Setup button (➔ 43)
o Tuning, Preset (➔ 28 to 34) arrow and Enter
buttons
p Return button
q Master Volume control (➔ 23)
r Zone 2 and Off buttons (➔ 62)
s Zone 2 Level buttons (➔ 63)
t Phones jack (➔ 25)
u AUX Input HDMI jack (➔ 17)
v Input selector buttons (➔ 23)
w AUX Input Video jack (➔ 18)
x AUX Input Audio jack (➔ 18)
y Setup Mic jack (➔ 26)
z RT/PTY/TP button (Australian models) (➔ 34)

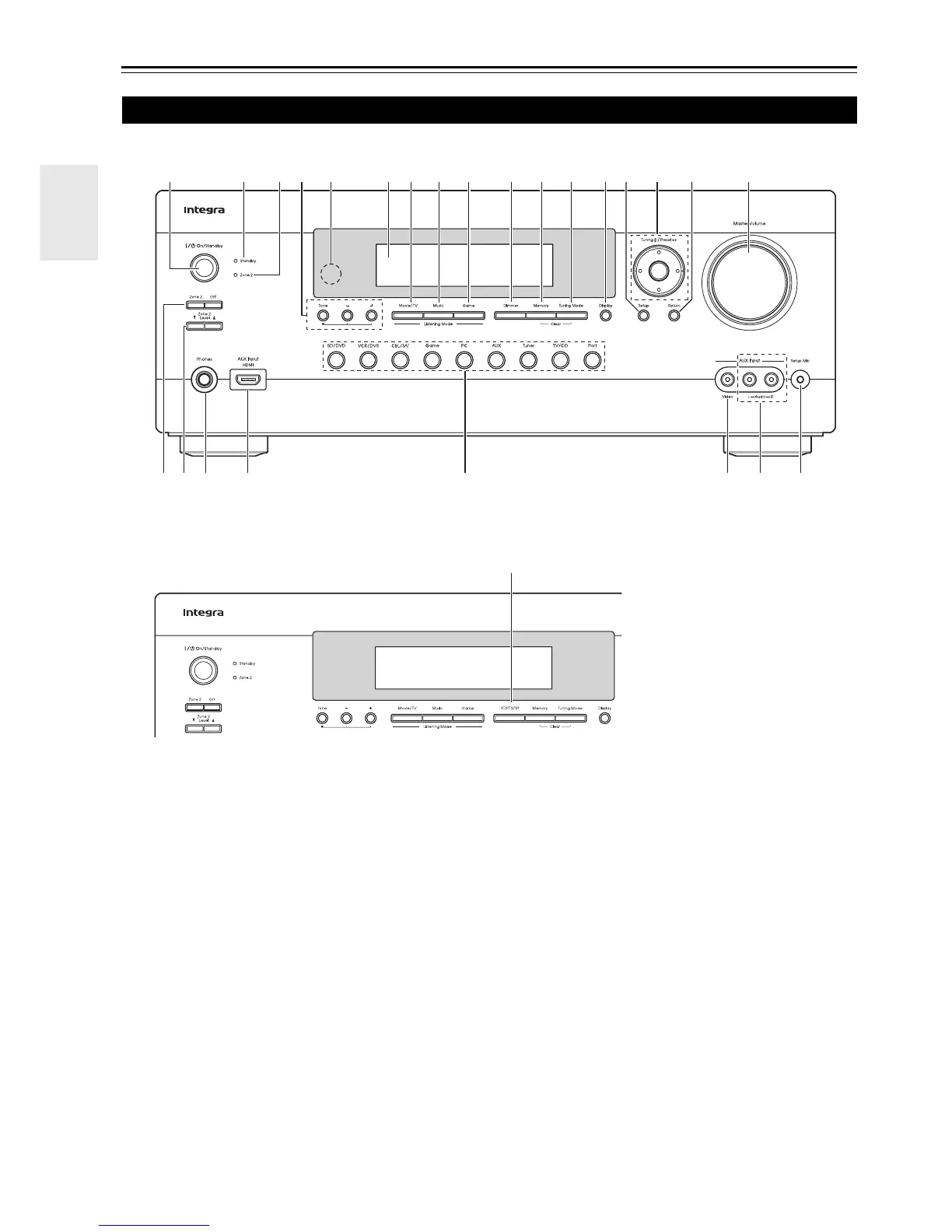

Front Panel
a
vw
x y
b c
de fhgijklmn o p q
tr
s u
z
