10
En
a DIGITAL IN COAXIAL and OPTICAL jacks
b RS232 port
Terminal for control.
c u REMOTE CONTROL jack
d UNIVERSAL PORT jack
e ETHERNET port
f HDMI IN and HDMI output (HDMI OUT MAIN and
HDMI OUT SUB) jacks
g MONITOR OUT V and S jacks
h COMPONENT VIDEO IN and MONITOR OUT
jacks
i IR IN and OUT jacks
j 12V TRIGGER OUT (A/B/C) jacks
k ZONE 2 OUT V jack
l FM ANTENNA jack and AM ANTENNA terminal
m PC IN jack
n AC INLET
o GND screw
p Composite, S-Video and analog audio jacks
(BD/DVD IN, VCR/DVR IN and OUT, CBL/SAT
IN, GAME IN, PC IN, TV/CD IN and PHONO IN)
q Multichannel input jacks
(FRONT L/R, CENTER, SURR L/R, SURR BACK
L/R and SUBWOOFER)
r PRE OUT jacks
(FRONT
L/R, CENTER, SURR L/R,
SB/FH/FW
*
L/R, SUBWOOFER)
*
SB···Surround Back, FH···Front High, FW···Front Wide
s ZONE 2 PRE/LINE OUT jacks
t Speaker Terminals
(FRONT L/R, CENTER, SURR L/R,
SURR BACK L/R, FRONT HIGH L/R and
FRONT WIDE/ZONE 2 L/R)

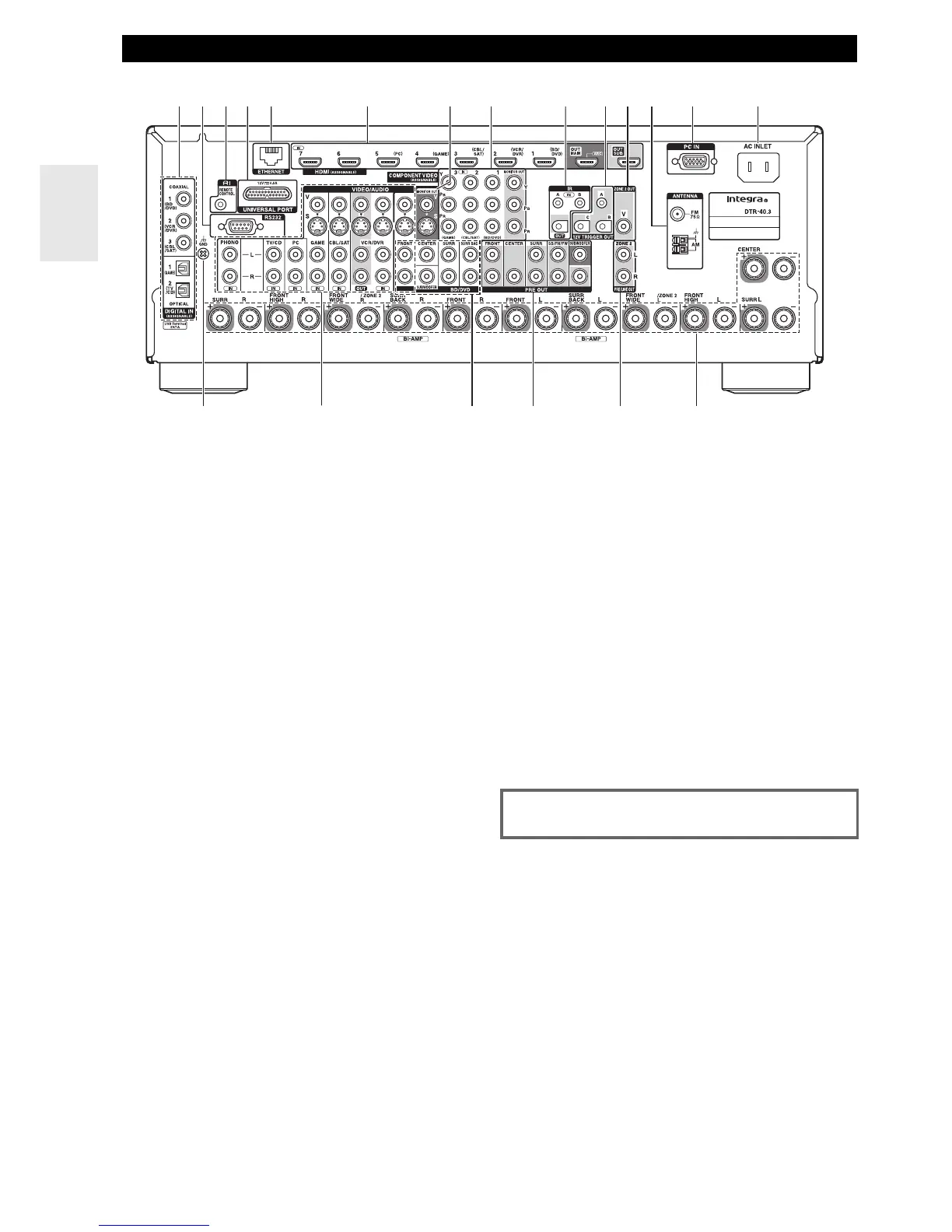

Rear Panel
a gh
n
psr
qo t
ecd if mj lb
k
See “Connecting the AV Receiver” for connection
(➔ pages 12 to 21).
