8
En

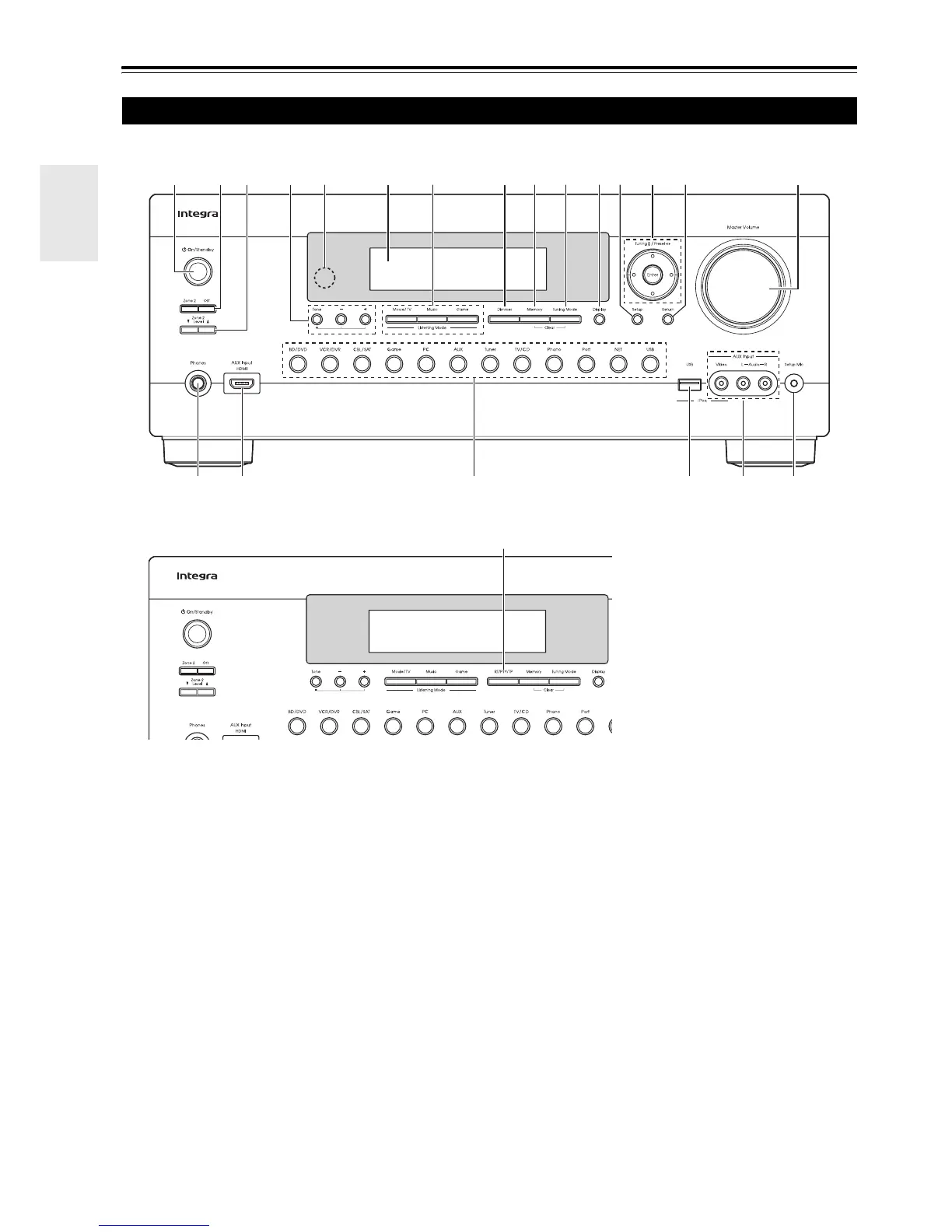

Front & Rear Panels
(North American models)
The page numbers in parentheses show where you can find the main explanation for each item.
a 8On/Standby button (22)
b Zone 2, Off buttons (65)
c Zone 2 Level buttons (65)
d Tone and Tone Level buttons (61)
e Remote control sensor (4)
f Display (9)
g Listening Mode buttons (34)
h Dimmer button (North American models) (40)
i Memory button (29)
j Tuning Mode button (28)
k Display button (41)
l Setup button (43)
m Tuning, Preset (28 to 29), arrow and Enter
buttons
n Return button
o Master Volume control (23)
p Phones jack (41)
q AUX Input HDMI jack (17)
r Input selector buttons (23)
s USB po
rt (18)
t AUX Input Video/Audio jack (18)
u Setup Mic jack (31)
v RT/PTY/TP button (Australian and Chinese
models) (30)
Front Panel
a
t
ef m o
b c
qp
r
s
dghijkln
u
v
(Australian and Chinese models)
