Safety Information and Introduction
En-7
Front & Rear Panels
For detailed information, see the pages in
parentheses.
a 8On/Standby button (20)
b Bluetooth indicator (30, 73)
c Wi-Fi indicator (26)
d Hybrid Standby indicator (21)
e Tone and Tone Level buttons (52, 76)
f Remote control sensor (10)
g Display (8)
h Listening Mode buttons (40)
i Dimmer button (North American models) (48)
j Memory button (37)
k Tuning Mode button (37)
l Display button (48)
m Home button (50)
n Tuning q/w (37), Preset e/r (37), cursor and
Enter buttons
o Return button
p Master Volume control (28)
q Zone 2/Zone 3 and Off buttons (76)
r Whole House Mode and Off buttons (49)
s Phones jack (19)
t AUX Input HDMI/MHL jack (15)
u Input selector buttons (28)
v USB port (31)
w AUX Input Video/Audio jacks
x Setup Mic jack (24)
y RT/PTY/TP button (Australian models) (38)

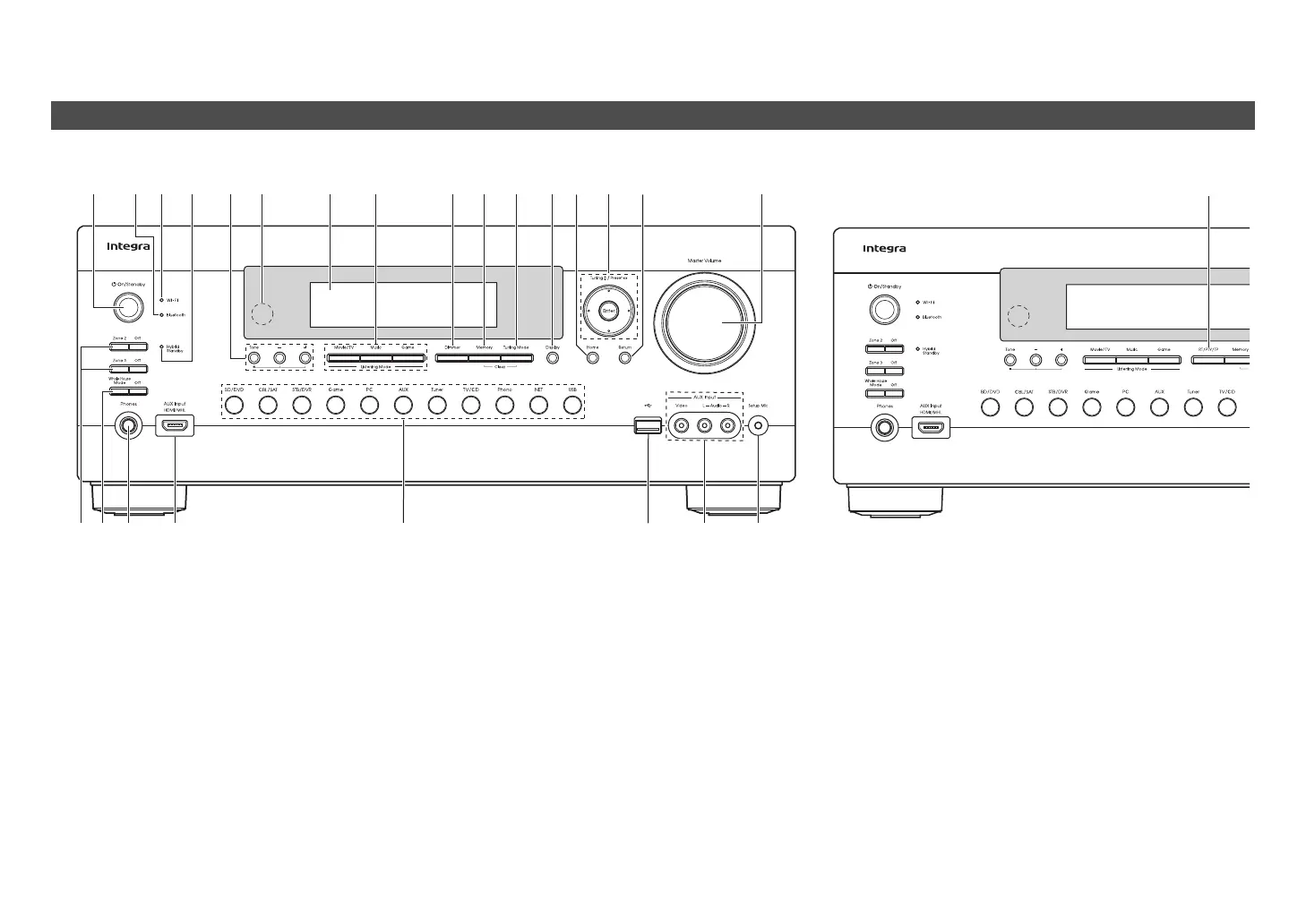

Front Panel
(North American models) (Australian models)
a d gf h ijk lmno pcb
u
v w
r tsq
x
e
y
