Integra DTR-40.5 - Zone 2;3 Audio Output Settings; Zone Volume and Tone Adjustments

Advanced Operations
En-76
See “Multi Zone” (➔ page 69).
■ Operating on the AV receiver
Tip
• The Whole House Mode function shares the input source of
main room with Multi Zone (➔ page 49).
■ Operating on the remote controller
To control Zone 2/3, you must press Zone2 or Zone3
on the remote controller first.
Adjusting the Volume for Zones
■ Operating on the remote controller
■ Operating on the AV receiver
If your Zone 2/3 speakers are connected to a receiver
or integrated amplifier in Zone 2/3, use its volume
control to adjust the volume.
Muting Zones
■ Operating on the remote controller
Tip
• To unmute, press Zone2 or Zone3 followed by Muting
again. Zones can also be unmuted by adjusting the volume.
Adjusting the Tone and Balance of Zone 2
Setting the Zone 2/3 Out

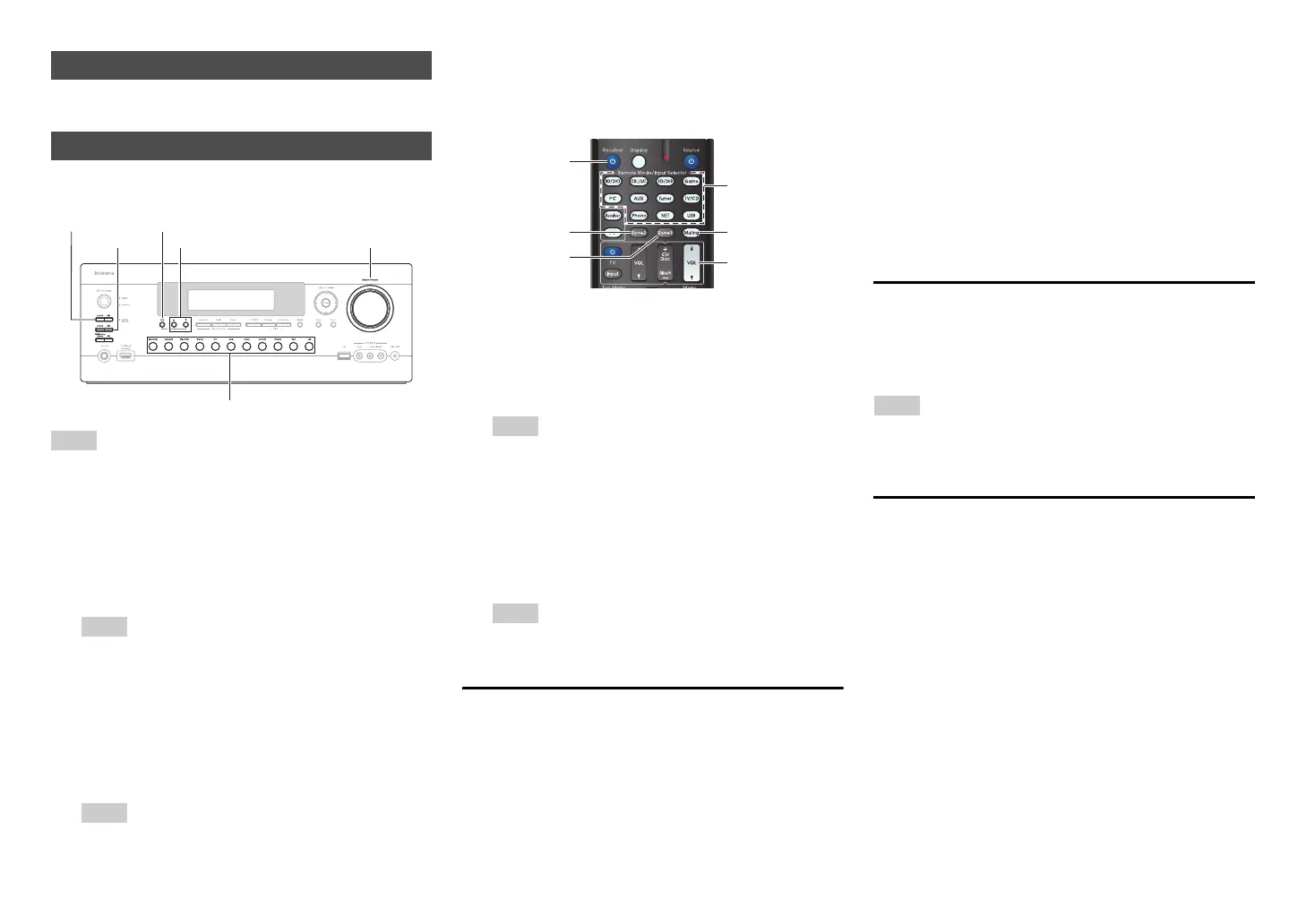

Controlling Multi Zone Components
1
To turn on Zone 2/3 and select an input source,
press Zone 2 or Zone 3 followed by an input
selector button within 8 seconds.
Zone 2/3 turns on, the Z2 or Z3 indicator lights on
the AV receiver’s display.
Tip
• The corresponding trigger output goes high (+12 V).
To select the same source as the main room’s,
press Zone 2 or Zone 3 twice. “Z2 Sel: Source”
or “Z3 Sel: Source” appears on the AV receiver’s
display.
2
To turn off Zone 2/3, press Off for each Zone.
The zone is turned off.
Tip
• The corresponding trigger output goes low (0 volts).
Input selector buttons
Zone 2, Off
Zone 3, Off
Tone
Master Volume
–, +
1
Press Zone2 or Zone3, then point the remote
controller at the AV receiver and press
8Receiver.
Zone 2/3 turns on, the Z2 or Z3 indicator lights on
the AV receiver’s display.
Tip
• The corresponding trigger output goes high (+12 V).
2
To select an input source for Zone 2/3, press
Zone2 or Zone3, followed by an Input Selector
button.
3
To turn off Zone 2/3, press Zone2 or Zone3,
followed by 8Receiver.
The zone is turned off.
Tip
• The corresponding trigger output goes low (0 volts).
1
Press Zone2 or Zone3.
2
Use VOL q/w.
8Receiver
Zone2
Zone3
Input
Selector
VOLq/w
Muting
1
Press Zone 2 or Zone 3 (the Z2/Z3 indicator on
the AV receiver’s display flashes).
2
Use Master Volume control within 8 seconds.
1
Press Zone2 or Zone3 followed by Muting.
1
On the AV receiver, press Zone 2.
2
Press the AV receiver’s Tone repeatedly to
select “Bass”, “Treble” or “Balance”.
3
Use – or + to adjust the bass, treble or balance.
• You can boost or cut the bass or treble from
–10 dB to +10 dB in 2 dB steps.
• You can adjust the balance from 0 in the center
to +10 dB to the right or +10 dB to the left in
2 dB steps.
