FIRMWARE UPDATE -1
DTR-5.8
Preparation for Update (Main and HDMI)

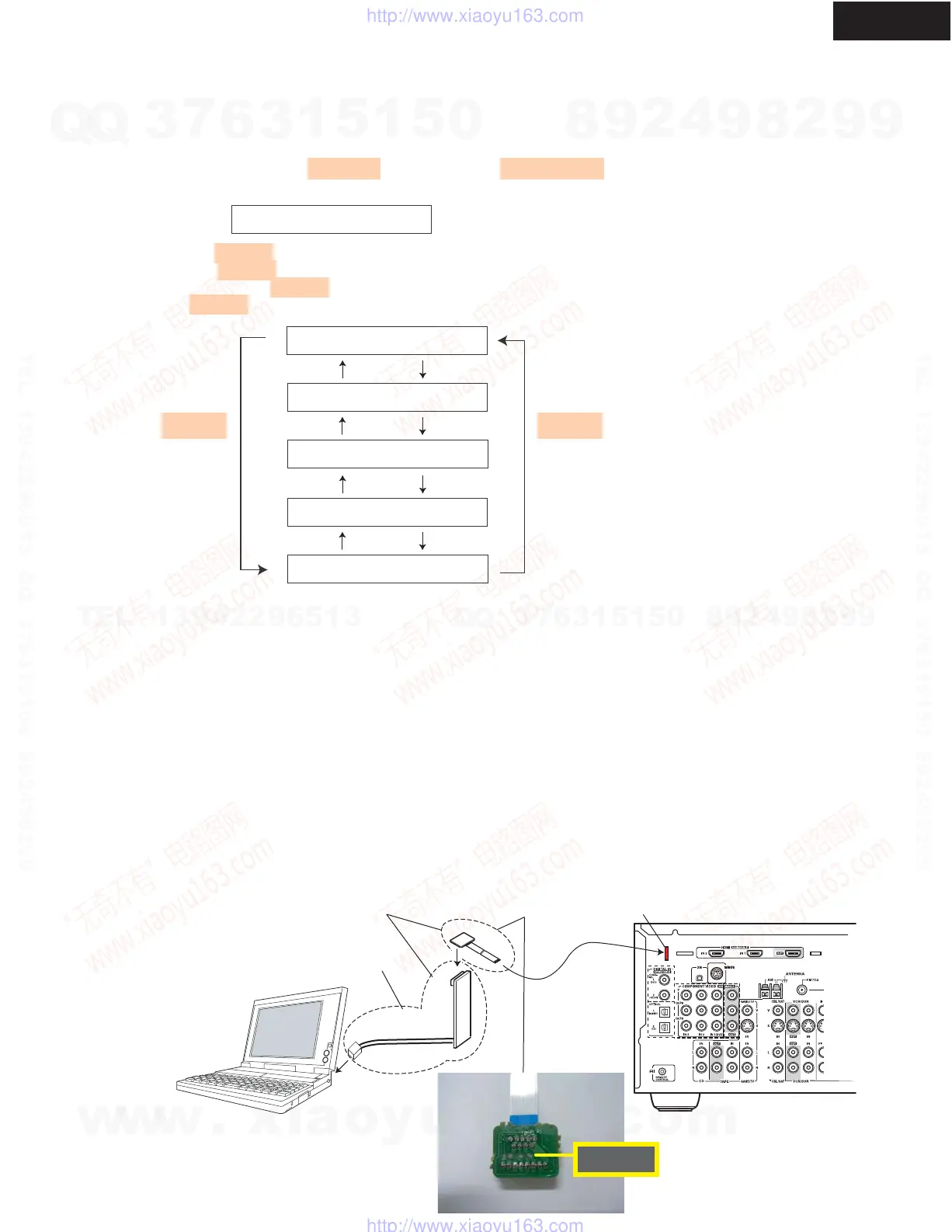

How to Check Versions of Main, DSP, HDMI and Video FW
1. Press and hold down [DISPLAY] button, then press [STANDBY/ON] button when the unit is power on.
The main microprocessor version will be displayed on Front Display for about 3 seconds.
2. Press [Tone +] button while the version is displayed. Then, “SLD” will be displayed.
Press [Tone +] button again while “SLD” is displayed. Then, “DSPSR605:07601A” will be displayed.
In this way, as [Tone +] button is pressed while a version is displayed, the next information will be displayed.
If [Tone -] button is pressed, the order will be reversed.
DSPSR605:07730A
SLD
Main.1.02/07904A
<e.g.>
1. Personal computer(PC) with Windows XP or 2000
2. Flashwriter jig: 0JFLASH and 0JFLASHEX (including 2 Types: for Main and for HDMI)
3. Writing soft: "flasta_exe.zip" and Manual: "Flash Writer M16 Manual.pdf" for Main microprocessor
Download and unzip “flasta_exe.zip” to extract "FlashSta.exe" etc. in advance.
4. Program & ID: Download the latest ".mot" and ".id" files for TX-SR605/TX-SA605/TX-SA8560/DTR-5.8 and store
in the same folder as “FlashSta.exe.”
5. Writing soft: "HDMIUpdater_SR605_07706A.zip" for HDMI microprocessor (File name depends on the version.)
Unzip "HDMIUpdater_SR605_07706A.zip” in advance.
(a) Hardware and Software
PC
(Personal computer)
RS232C
0JFLASH
0JFLASHEX
FFC
Flashwriter Jig
DTR-5.8 Rear Panel
(Target unit)
Connector slot
for update
VD 3.62/07717A
HDMI1.01/07706A
[Tone +][Tone -]
Note: These versions are the latest as of Sep. 18, 2007.
Only for HDMI,
the 4 lines are cut.
Main.1.02/07904A
1. While the target unit is off, connect 0JFLASH and 0JFLASHEX to RS232 port of the PC.
2. Connect the FFC of the jig to the connector slot on the rear panel of DTR-5.8.
3. Power on the unit.
