10
En
a DIGITAL IN COAXIAL and OPTICAL jacks
b RS232 terminal
Terminal for control.
c u REMOTE CONTROL jack
d ETHERNET port
e UNIVERSAL PORT jack
f MONITOR OUT V and S jacks
g COMPONENT VIDEO IN and MONITOR OUT
jacks
h HDMI IN and HDMI output (HDMI OUT MAIN and
HDMI OUT SUB) jacks
i COMPONENT VIDEO ZONE 2 OUT jacks
j IR IN (A/B) and OUT jacks
k 12V TRIGGER OUT (A/B/C) jacks
l ZONE 2 OUT V jack
m FM ANTENNA jack and AM ANTENNA terminal
n PC IN port
o AC INLET
p GND screw
q SIRIUS antenna jack (North American models)
r Composite, S-Video and analog audio jacks
(BD/DVD IN, VCR/D
VR IN and OUT, CBL/SAT IN,
GAME IN, PC IN, TV/CD IN and PHONO IN)
s Multichannel input jacks
(FRONT L/R, CENTER, SURR
L/R, SURR BACK
L/R and SUBWOOFER)
t PRE OUT jacks
(FRONT L/R, CENTER, SURR L/R,
SB/FH/FW L/R, SUBWOOFER, ZONE 2 L/R and
ZONE 3 L/R)
*
SB···Surround Back, FH···Front High, FW···Front Wide
u Speaker Terminals
(FRONT L/R, CENTER, SURR
L/R,
SURR BACK L/R, FRONT HIGH L/R and
FRONT WIDE/ZONE 2 L/R)

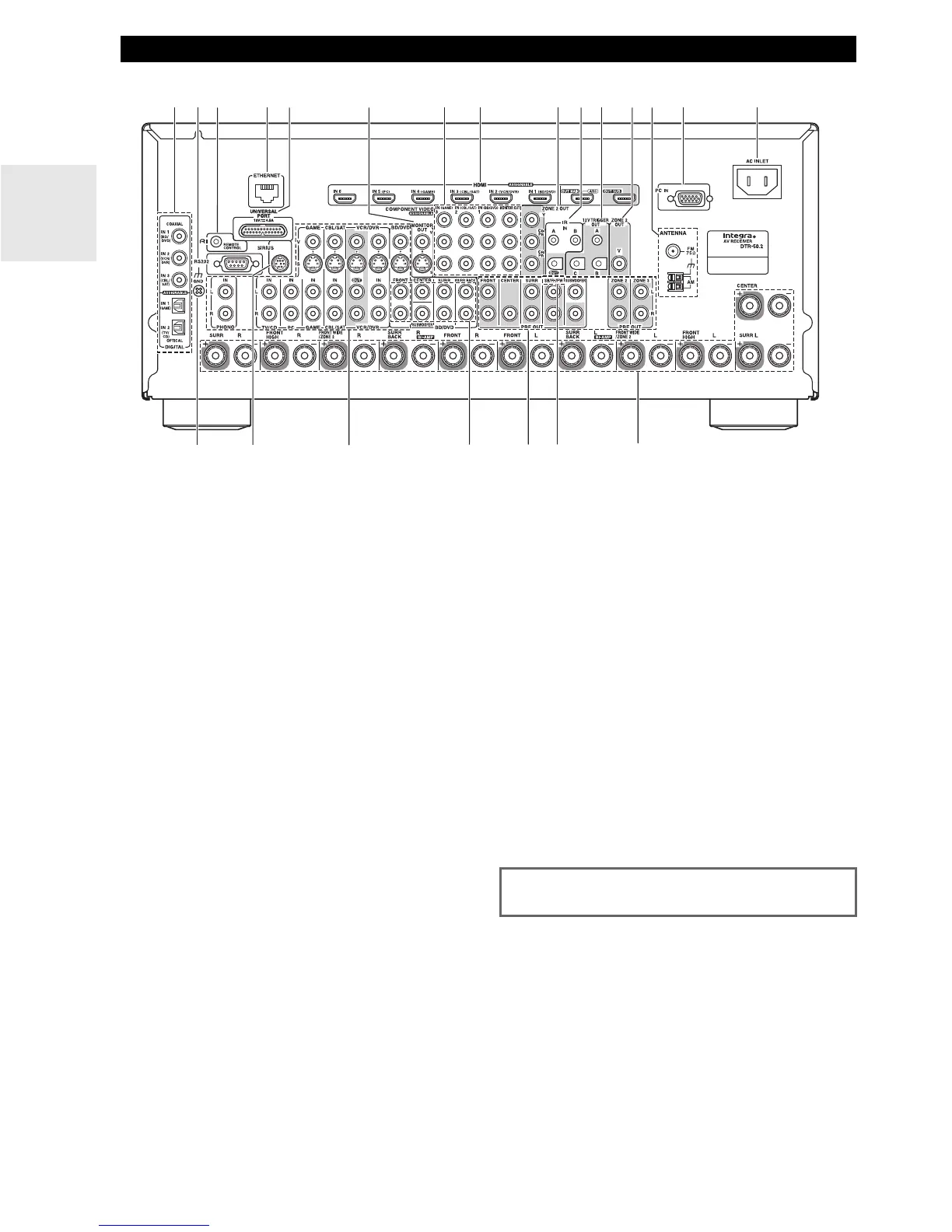

Rear Panel
*
ab e mfdg
n oh k
prstu
c
j l
q
i
See “Connecting the AV Receiver” for connection infor-
mation (➔ 13 to 23).
