Integra DTR-50.3 - Rear Panel

10
En
a DIGITAL IN COAXIAL and OPTICAL jacks
b RS232 port
Terminal for control.
c u REMOTE CONTROL jack
d USB port
e UNIVERSAL PORT jack
f ETHERNET port
g HDMI IN and HDMI output (HDMI OUT MAIN and
HDMI OUT SUB) jacks
h MONITOR OUT V and S jacks
i COMPONENT VIDEO IN and MONITOR OUT
jacks
j COMPONENT VIDEO ZONE 2 OUT jacks
k IR IN (A/B) and OUT jacks
l 12V TRIGGER (A/B/C) OUT jacks
m ZONE 2 OUT V jack
n FM ANTENNA jack and AM ANTENNA terminal
o PC IN jack
p AC INLET
q GND screw
r Composite, S-Video and analog audio jacks
(BD/DVD IN, VCR/DVR IN and OUT, CBL/SAT
IN, GAME IN, PC IN, TV/CD IN and PHONO IN)
s Multichannel input jacks
(FRONT L/R, CENTER, SURR L/R, SURR BACK
L/R and SUBWOOFE
R)
t PRE OUT jacks
(FRONT L/R, CENTER, SURR L/R, SB/FH/FW
*
,
SUBWOOFER)
*
SB···Surround Back, FH···Front High, FW···Front Wide
u ZONE 2 and ZONE 3 PRE/LINE OUT jacks
v Speaker Terminals
(FRONT L/R, CENTER, SURR L/R,
SURR BACK L/R, FRONT HIGH L/R and FRONT
WIDE/ZONE 2 L/R)

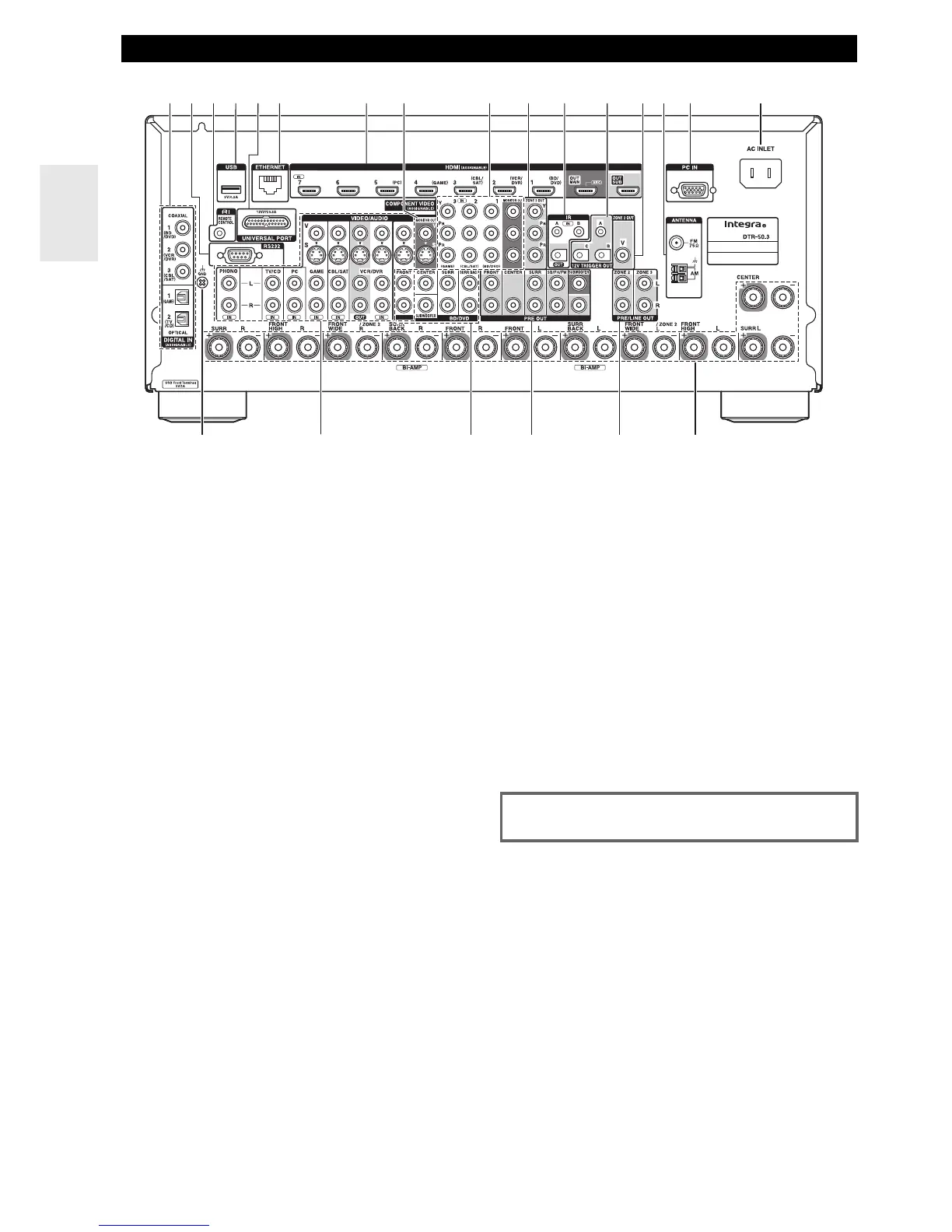

Rear Panel
h i j
p
rut
sq v
k lg onma fdebc
See “Connecting the AV Receiver” for connection
(➔ pages 12 to 21).
