Front & Rear Panels
For detailed information, see the pages in
parentheses.
a 8On/Standby button (22)
b Bluetooth indicator (32, 77)
c Wi-Fi indicator (28)
d Hybrid Standby indicator (23)
e Monitor Out button (59)
f Remote control sensor (11)
g Tone and Tone Level buttons (55, 80)
h Display (8)
i Listening Mode buttons (42)
j Dimmer button (North American models) (50)
k Memory button (39)
l Tuning Mode button (39)
m Display button (50)
n Home button (53)
o Tuning q/w (39), Preset e/r (39), cursor and
Enter buttons
p Return button
q Master Volume control (30)
r Zone 2/Zone 3 and Off buttons (79)
s Whole House Mode and Off buttons (51)
t Phones jack (21)
u Setup Mic jack (26)
v Input selector buttons (30)
w USB port (33)
x AUX Input jacks (17)
y RT/PTY/TP button (Australian models) (40)

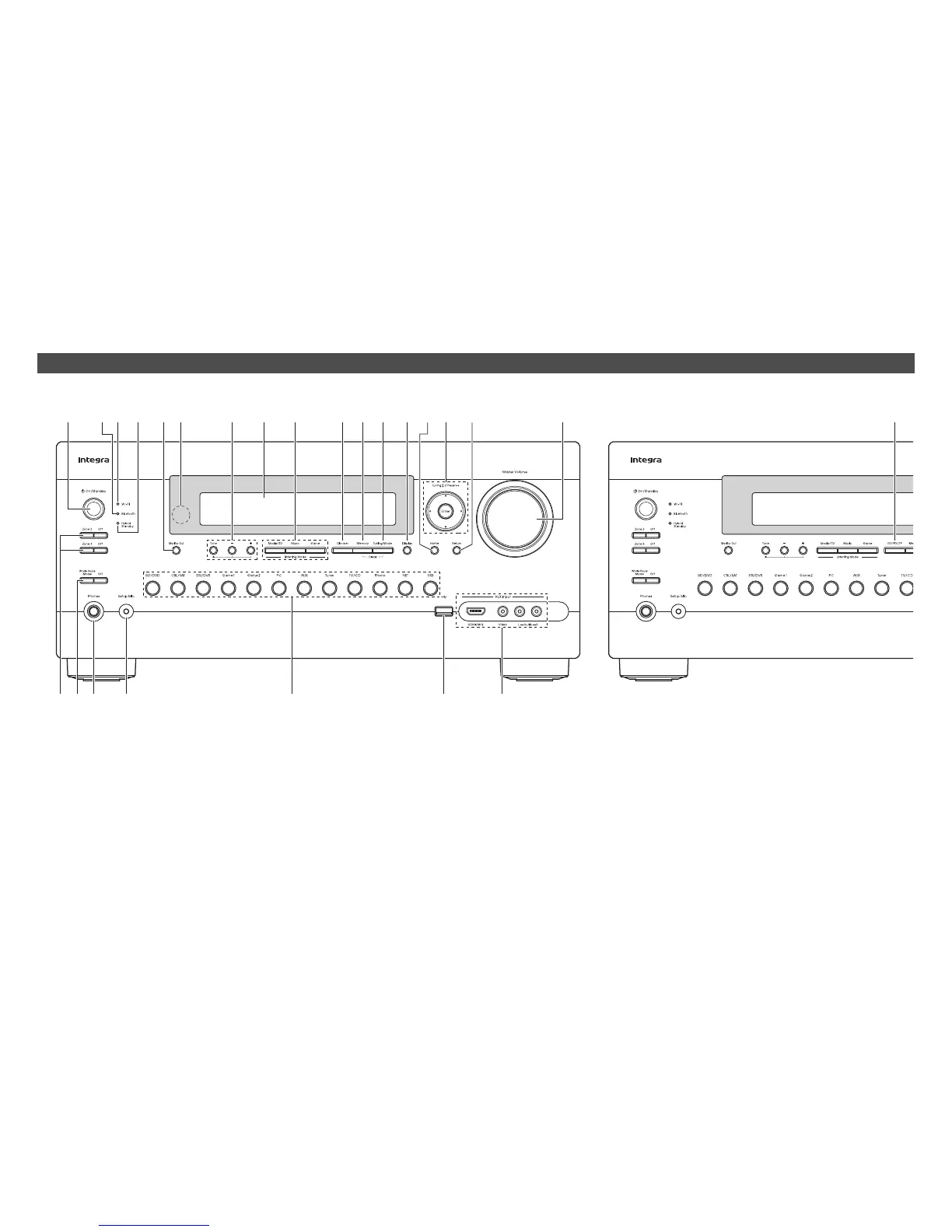

Front Panel
(North American models) (Australian models)
afeh
g jkl
nmop qbc
vxtsurw
d i y
