Index parts and facilities
MONITOR OUT VIDEO/S VIDEO [19]
These jacks are for connecting to the video input jacks on television
monitors or projectors.
IR IN/OUT [27]
These connectors are for connecting the remote sensor of a multi-
room kit (sold separately).
PRE OUT ZONE 2 [26]
When using the power amplifier for Zone 2 speakers, connect the
power amplifier to these terminals.
PRE OUT (SUBWOOFER) [17]
This jack is for connecting a subwoofer with a built-in power
amplifier.
PRE OUT (FRONT/ SURR/ CENTER/ SURR BACK)
(DTR-6.4 only) [23]
To use the DTR-6.4 as a preamplifier, connect a power amplifier to
these jacks.
AC INLET [7]
This connector is for connecting the supplied power cord.

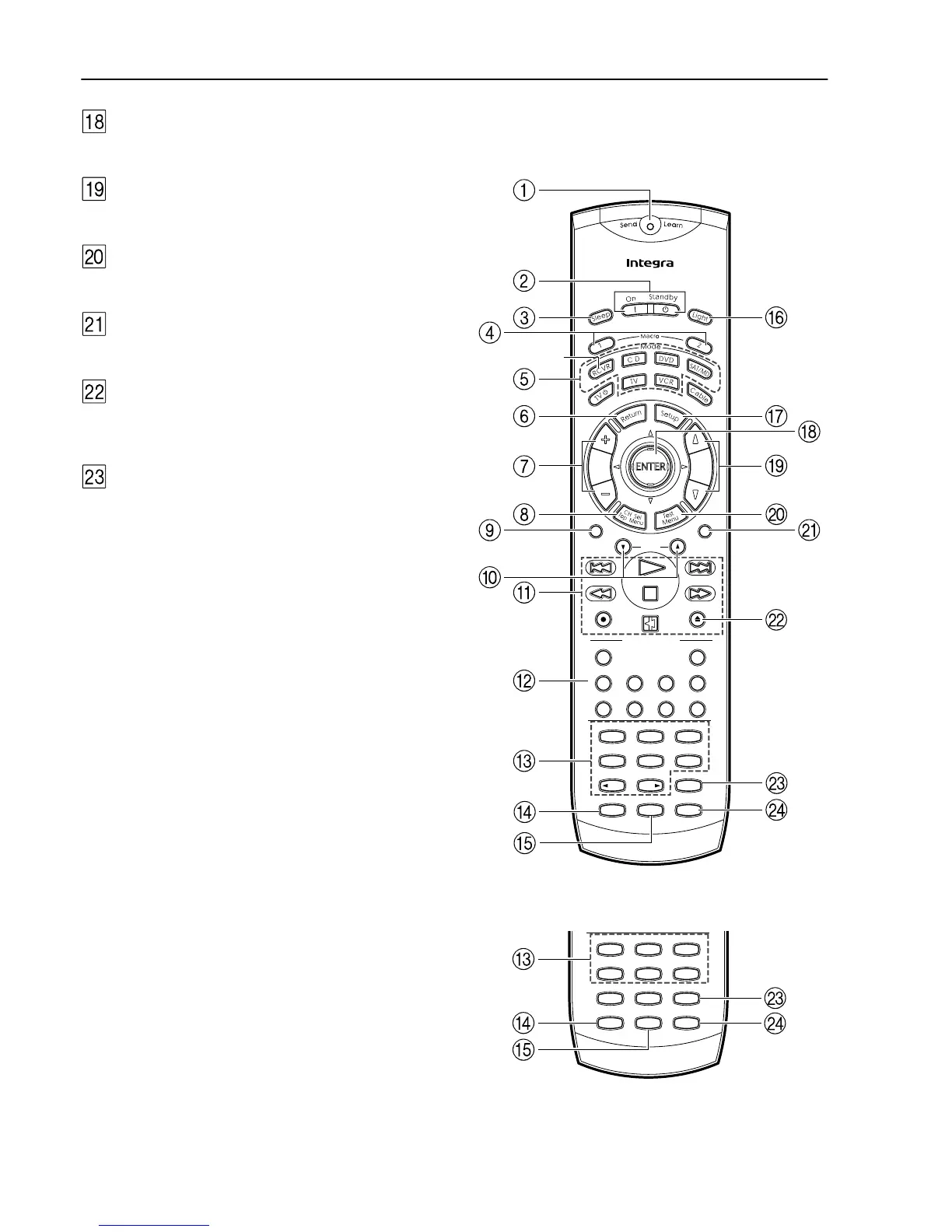

Remote controller
RC-534M (for DTR-6.4)
RC-517M (for DTR-5.4)
--
/
---
123
456
+
10 0
789
Audio Sel
Muting
Angle
Subtitle
TV
/ VCR
Random
Audio Adjust
Enter
Search
Input Selector
Dimmer
Zone 2
Display
SURR
THX
Stereo
Direct
All ST
VOL
C
H
Disc
Pure A
Rec
DSP DSP Re - EQ
Level
AM
V 1
DVD
V 3 V 4
V 5
C
D
V 2
P H
TAP TUN
RC
-
534M
RCVR button
--
/
---
123
456
+
10 0
789
Enter
Search
Dimmer
Zone 2
Display
SURR
All ST
Stereo
Direct
DSP
Pure A
SP A SP B
CINE FLTR
