Connecting your AV components

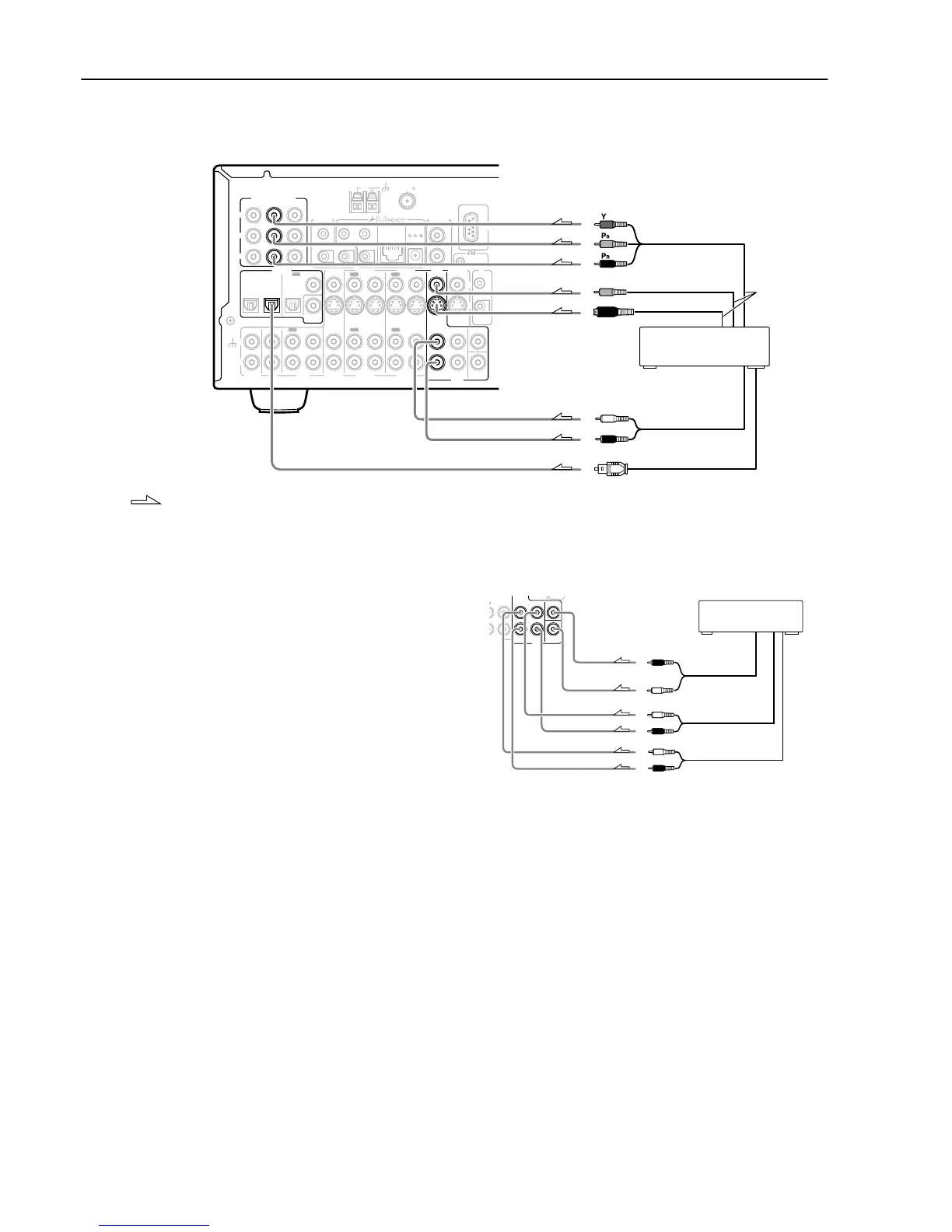

Connecting a DVD Player with 2-Channel (L/R) Audio Output
5. Connecting a DVD player (DVD)
Using an RCA video cable, connect the video output jack
(composite) of the DVD player to the DVD V IN jack of the DTR-
6.4/5.4. Or if the DVD player has an S video output jack, connect it
to the DVD S IN jack with an S video cable. Or if the device has
component video outputs, connect them to the COMPONENT
VIDEO INPUT 1 or 2 jacks on the DTR-6.4/5.4.
With the initial settings of the DTR-6.4/5.4, the DVD input
source is set for the COMPONENT VIDEO INPUT 1 jacks.
If you connect the DVD player to the COMPONENT VIDEO
INPUT 2 jacks, this must be changed at “Input Setup” →
“Component Video” (see page 34).
Using an RCA audio connection cable, connect the audio output
jacks of the DVD player to the DVD FRONT L/R jacks of the DTR-
6.4/5.4. Make sure that you properly connect the left channel to the
L jack and the right channel to the R jack.
If the device has a 5.1-channel output, connect the DVD FRONT L/
R, SURR L/R, CENTER, and SUBWOOFER (5.1-channel input)
jacks of the DTR-6.4/5.4 to the 5.1-channel output jacks of the
DVD player (refer to right diagram for the connection examples).
Make sure that you properly connect the left channels to the L jacks
and the right channels to the R jacks.
If the device has a digital output, connect it to either the DIGITAL
IN COAXIAL jack or the DIGITAL IN OPTICAL jack of the DTR-
6.4/5.4 depending on the type of connector on the DVD player.
With the initial settings of the DTR-6.4/5.4, the DVD input
source is set for digital input at the OPTICAL 1 jack (OPT 1).
If the digital connection is made at a different jack, this must be
changed at “Input Setup” → “Digital Input” (see page 34).
Note:
If the DVD player has both 5.1-channel audio outputs and 2-
channel audio outputs, and you want to connect the DVD player
only using the FRONT L/R jacks on the DTR-6.4/5.4, use the 2-
channel audio output jacks on the DVD player.
Connecting a DVD Player with 5.1-Channel Output
IN
FRONT
SURR
CENTER
SUB
WOOFER
V
IDEO 1
DVD
L
R
T
SUB
WOOFER
5. DVD player (DVD)
Analog audio output
(center)
Analog audio output
(subwoofer)
R (red)
L (white)
R (red)
L (white)
Analog audio output
(front L/R)
Analog audio output
(surround L/R)
INPUT 1INPUT 2
OUTPUT
COMPONENT VIDEO
Y
IN
IN
IN
IN
FRONT
SURR
CENTER
SUB
WOOFER
VIDEO 2
VIDEO 1
VIDEO 2
DVD
MONITOR
OUT
DVD
TAPE
L
R
VIDEO 3
VIDEO 1
V
VIDEO 3
IN
IN
IN
OUT
IN
IN
OUTOUT
OUTOUTOUT
S
ANTENNA
FM
75
AM
IN
RS232
IR
IR OUT
56K
A
40K
B
ZONE 2
OUT
DC IN
24V 1A
L
R
ZONE 2
LINE OUT
ZONE 2
OPTICAL
1
2
OPTICAL
IN
OUT
12 V
TRIGGER
OUT
A
B
REMOTE
CONTROL
IN
COAXIAL
IN
COAXIAL
DIGITAL
CD
L
R
GND
PHONO
PR
PB
*
: Signal flow
5. DVD player (DVD)
Component video output
Video output
S video output
R (red)
L (white)
Analog audio output
Digital audio output
(optical)
*You do not have to make all the connection shown on the illustration
above. For appropriate connection for your components, see “The flow
of the video signals” on page 19.
