Integra DTR-6.9 User Manual

35
Connecting the AV Receiver—Continued
• With connection , you can play and record and listen in Zone 2.
• To connect the recorder digitally for playback, use connections and , or and .
• To connect the recorder digitally for recording, use connections or .
z

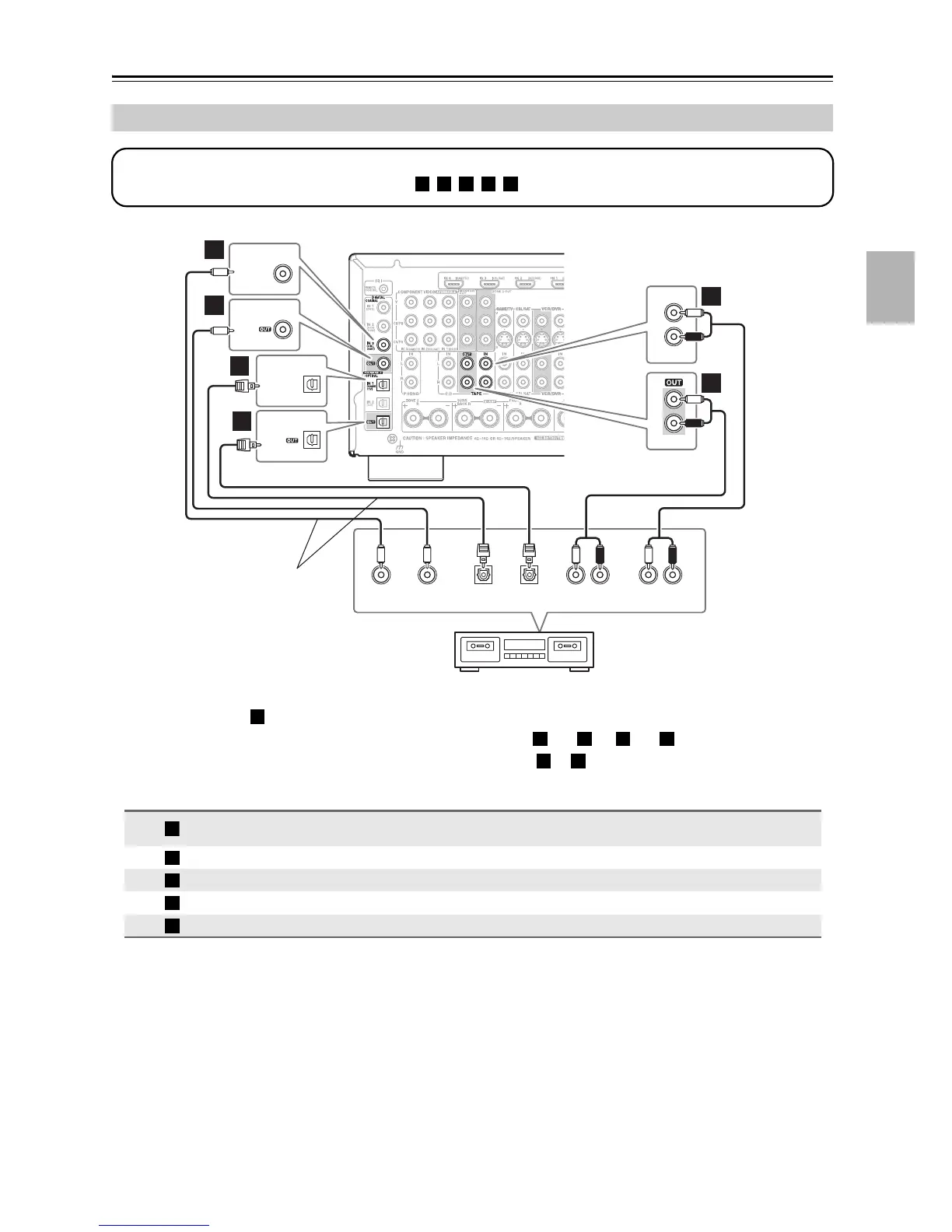

Connecting a Cassette, CDR, MiniDisc, or DAT Recorder
Connection AV receiver Signal flow Cassette, CDR, MD, or DAT recorder
TAPE IN L/R
TAPE OUT L/R
⇐
⇒
Analog audio L/R output
Analog audio L/R input
DIGITAL COAXIAL IN 3 (CBL/SAT) ⇐ Digital coaxial output
DIGITAL COAXIAL OUT ⇒ Digital coaxial input
DIGITAL OPTICAL IN 1 (GAME/TV) ⇐ Digital optical output
DIGITAL OPTICAL OUT ⇒ Digital optical input
d
e
COAXIAL
OUT
AUDIO
IN
LR
OPTICAL
OUT
L
R
IN
TAPE
COAXIAL
IN
AUDIO
OUT
LR
L
R
TAPE
COAXIAL
OPTICAL
IN 3
(CBL/SAT)
COAXIAL
IN 1
(GAME/TV)
OPTICAL
OPTICAL
IN
b
c
a
a
Step 1:
Choose a connection that matches the recorder ( , , , , ), and then make the connection.
a b c d e
Cassette, CDR, MD, etc.
Connect one or the other
Connection must be assigned
(see page 43)
a
a b a d
c d
a
b
c
d
e

Integra DTR-6.9 Specifications

General

Channels	7.1
HDMI Inputs	3
HDMI Outputs	1
Network Connectivity	No
Component Video Inputs	3
Component Video Outputs	1
Digital Audio Inputs (Optical)	2
Digital Audio Inputs (Coaxial)	2
Total Harmonic Distortion	0.08%
Power Output	100 W/Ch (8 Ohms, 20 Hz-20 kHz, 0.08% THD, 2 Channels Driven)
Audio Formats Supported	Dolby TrueHD, DTS-HD Master Audio
Signal to Noise Ratio	106 dB
Frequency Response	10 Hz - 100 kHz (+1 dB, -3 dB)
Input Sensitivity/Impedance	200 mV/47 kOhms (Line)
Video Inputs/Outputs (Composite)	5 In / 2 Out
Video Inputs/Outputs (Component)	3 In / 1 Out
Audio Inputs/Outputs (Phono)	1 Input
Audio Inputs/Outputs (Digital Optical)	2 In
Audio Inputs/Outputs (Digital Coaxial)	2 In
Dimensions (W x H x D)	435 x 174 x 435 mm
