M L X 3 0 0 W A T T X E N O N L I G H T S O U R C E

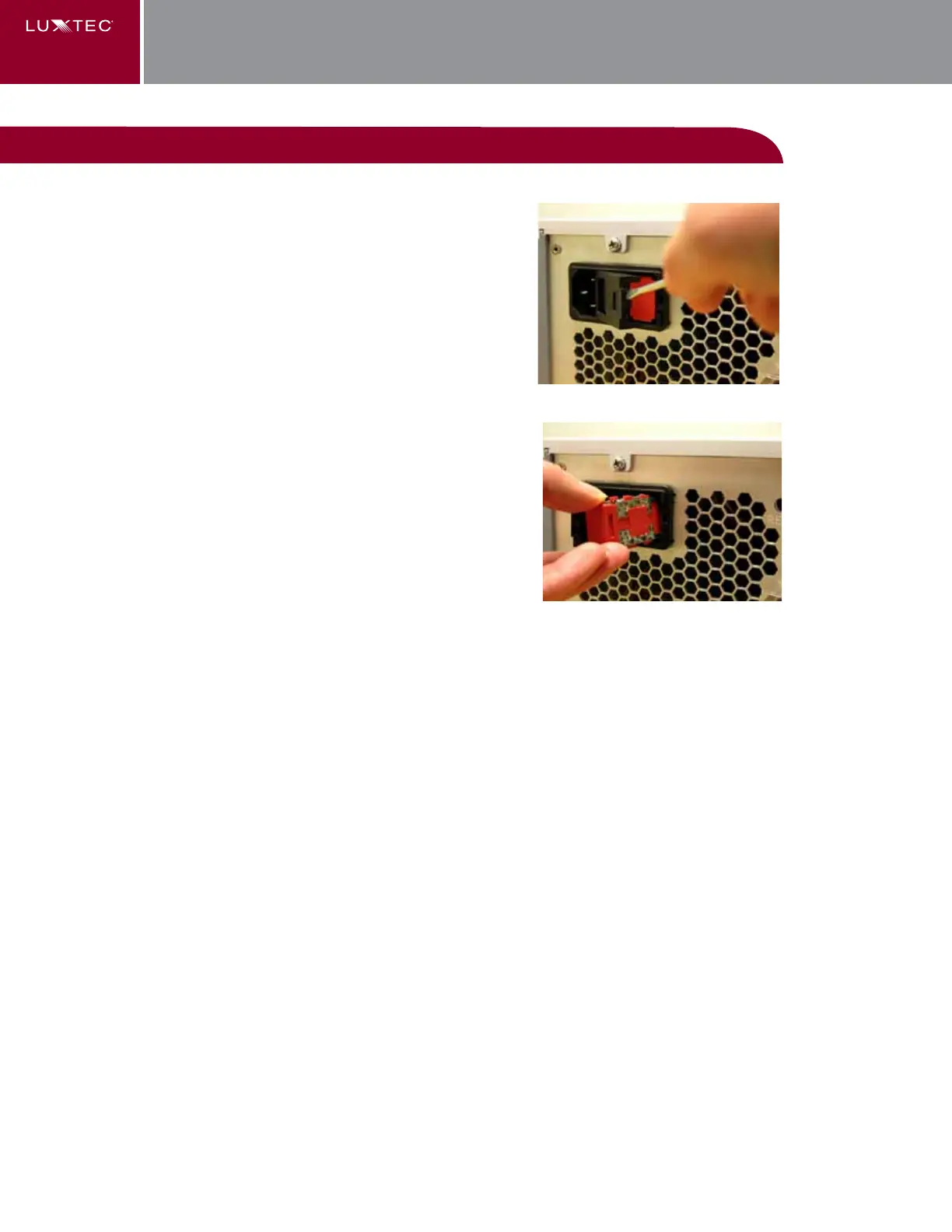

fUSE REPLACEMENT
To replace the fuse:
•Thefuseforthelightsourceislocatedinthepowerentrymodulein
the rear of the unit.
•Removethehospitalgradepowercordfromthebackofthelight
source.
•Usingasmallatscrewdriver,pryopentheretaining
door (Figure 8)and pry out the red plastic block from the power
entry module (Figure 9).
•Checktoseeifthefuseisblown;ifblownreplacewithafuseofthe
same rating (Luxtec P/N 600987, or T6.3AL250 ).
•Replacetheredblockinthehousing.
•Snaptheretainingdoorintoplace.
•Plugcordbackintolightsourceandretesttheunit.
Figure 8
Figure 9

Integra Luxtec MLX Specifications

General

Brand	Integra
Model	Luxtec MLX
Category	Medical Equipment
Language	English
