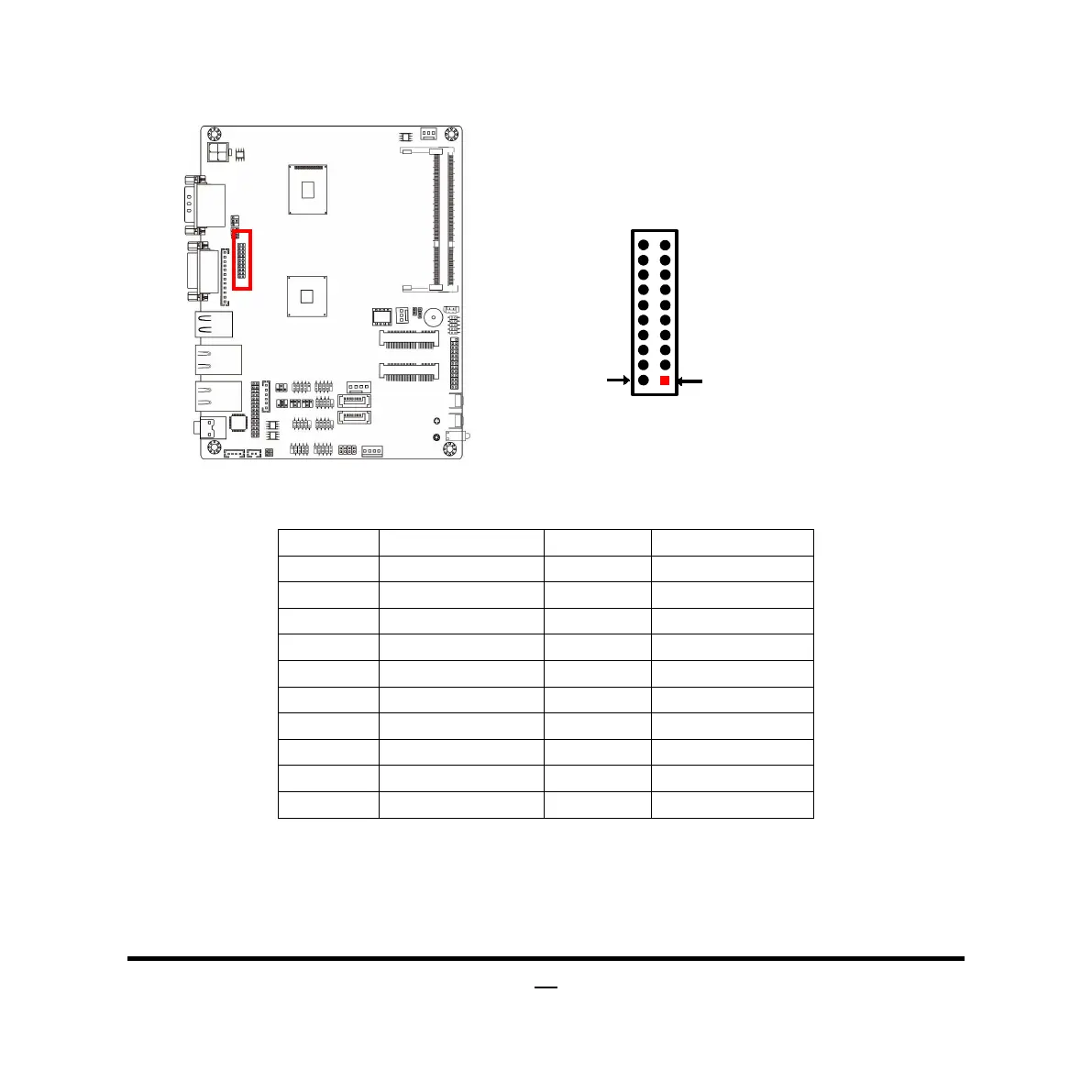

(8) HDMI1 (20-pin): HDMI Header
Pin 2
HDMI1 Header
Pin1
Pin NO.
Pin Definition
Pin NO. Pin Definition
Pin 1
GND
Pin 2
HDMI_TXP2
Pin 3
HDMI_TXP1
Pin 4
HDMI_TXN2
Pin 5 HDMI_TXN1
Pin 6
GND
Pin 7
GND
Pin 8
HDMI_TXP0
Pin 9 HDMI_TXCP Pin 10 HDMI_TXN0
Pin 11
HDMI_TXCN
Pin 12
GND
Pin 13
NC
Pin 14
NC
Pin 15 HDMI_SDA
Pin 16
HDMI_SCL
Pin 17
HDMI_+5V
Pin 18
GND
Pin 19 GND Pin 20 HDMI_HPD
